Front Toe Adjustment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Adjustment

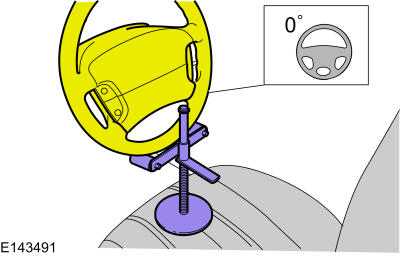

1. NOTE: Make sure that the vehicle is standing on a level surface.

   Courtesy of FORD MOTOR COMPANY

2. Using alignment equipment and the manufacturer's instructions, check the front toe setting on both sides. Use the General Equipment: Wheel Alignment System
3. 1. On both sides.

      Torque: 58 lb.ft (79 Nm)

   2. NOTE: Make sure that the boot is correctly located.

      Rotate the inner tie-rods an equal amount in either a clockwise or a counterclockwise direction to adjust the toe setting on both sides.

Courtesy of FORD MOTOR COMPANY
