Lower Arm: Installation

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

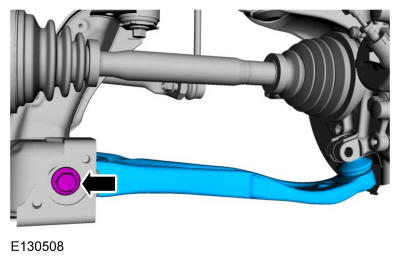

1.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Do not tighten the nuts and bolts at this time.

Finger tight at this stage.

Courtesy of FORD MOTOR COMPANY

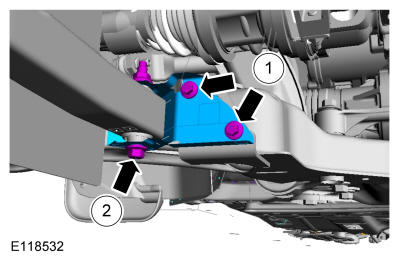

2.

Torque
: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY

3.

Refer to: Wheel and Tire .

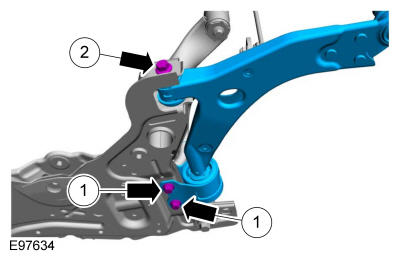

4.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

Torque:

Stage 1: 111 lb.ft (150 Nm)

Stage 2: 90°

Courtesy of FORD MOTOR COMPANY

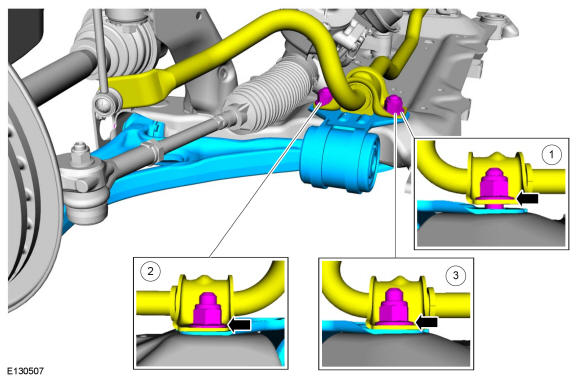

5.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.
- 1.

  Finger tight.
- 2.

  Torque:
  Stage 1: 85 lb.ft (115 Nm)

  Stage 2: 90°
- 3.

  Torque:
  Stage 1: 85 lb.ft (115 Nm)

  Stage 2: 90°

Courtesy of FORD MOTOR COMPANY

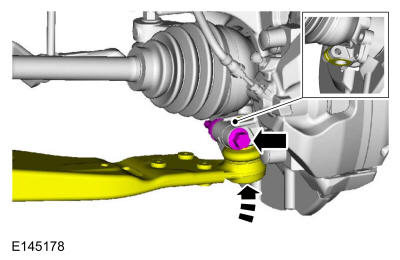

6.

Torque:
1: 18 lb.ft (25 Nm)

2: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

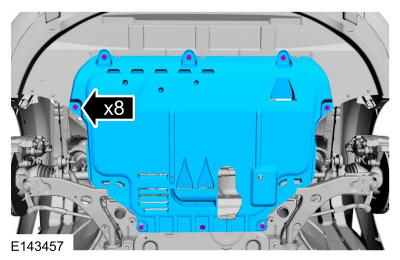

Courtesy of FORD MOTOR COMPANY

8.

Refer to: Battery Disconnect and Connect - Hybrid Electric Vehicle (HEV) .

9.

Refer to: FRONT TOE ADJUSTMENT .
