Front Toe Adjustment

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTE: Make sure that the vehicle is standing on a level surface.

1.

NOTE: Make sure that the steering wheel lock is engaged.

NOTE: Make sure that the road wheels are in the straight ahead position.

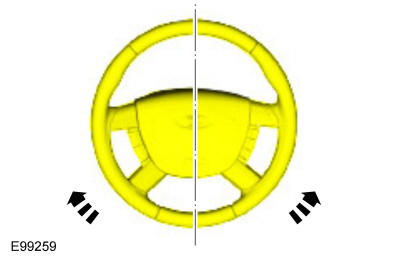

Steering wheel in straight ahead position.

Courtesy of FORD MOTOR COMPANY

2.

Check the toe setting on both sides.
Use the General Equipment: Wheel Alignment System

3.

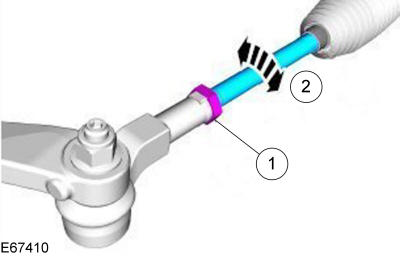

- 1.

  On both sides, Loosen the outer tie rod end jamb nut.
  Torque

  : 66 lb.ft (90 Nm)
- 2.

  NOTE: Make sure that the boot is correctly located.
Rotate the tie-rods an equal amount in either a clockwise or a counterclockwise direction to adjust the toe setting on both sides.

Courtesy of FORD MOTOR COMPANY
