Roof Opening Panel Frame: Installation

WARNING: This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

1.

To install, reverse the removal procedure.

2.

Tighten the bolts in the sequence shown below.
Torque

: 80 lb.in (9 Nm)

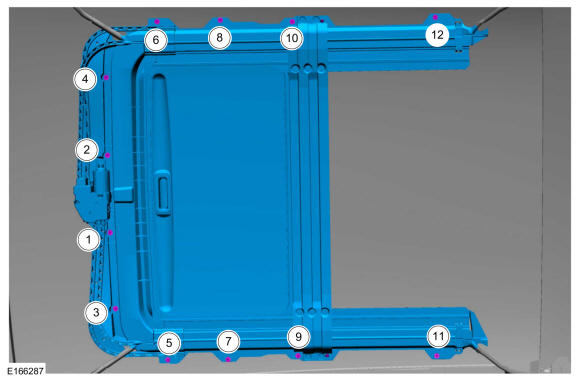

Fig 1: Roof Panel Frame Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

3.

Align the roof opening panel. REFER to: Roof Opening Panel Alignment
