Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

Adjustment

1.

NOTE: The roof opening panel must be in the CLOSED position.

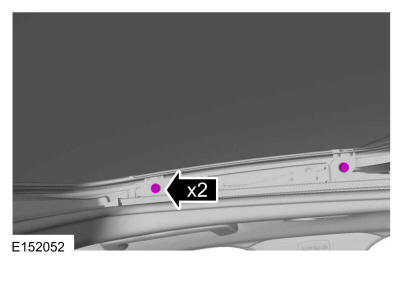

Loosen the roof opening panel bolts on both sides.

Courtesy of FORD MOTOR COMPANY

2.

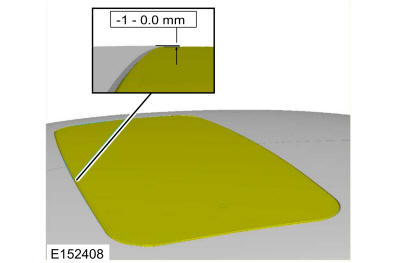

Measure and adjust the front of the roof opening panel glass to roof clearances as shown.

Courtesy of FORD MOTOR COMPANY

3.

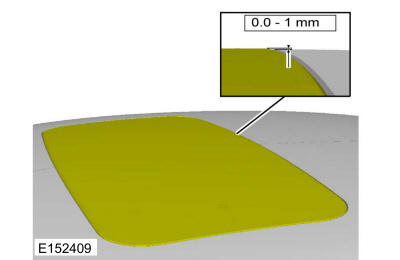

Measure and adjust the rear of the roof opening panel glass to roof clearances as shown.

Courtesy of FORD MOTOR COMPANY

4.

Tighten the roof opening panel bolts on both sides.
Torque

: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY

5.

Initialize the power roof opening panel. REFER to: Power Roof Opening Panel Initialization
