Clutch Housing: Assembly

NOTE: If new differential bearings, differential, clutch housing or transaxle case are installed refer to the DIFFERENTIAL SHIM SELECTION .

Install the clutch housing differential bearing shim.

Fig 1: Locating Clutch Housing Differential Bearing Shim
Courtesy of FORD MOTOR CO.
Using the special tools, install the clutch housing differential bearing race.

Fig 2: Installing Clutch Housing Differential Bearing Race Using Special Tools
Courtesy of FORD MOTOR CO.
NOTE: The clutch housing output shaft bearing 1 is shown in illustration, the clutch housing output shaft bearing 2 is similar.

Install the new lube feed tubes and position the clutch housing output shaft bearings into the clutch housing.

Fig 3: Locating Lube Feed Tubes And Clutch Housing Output Shaft Bearing
Courtesy of FORD MOTOR CO.
NOTE: The clutch housing output shaft bearing 1 is shown in illustration, the clutch housing output shaft bearing 2 is similar.

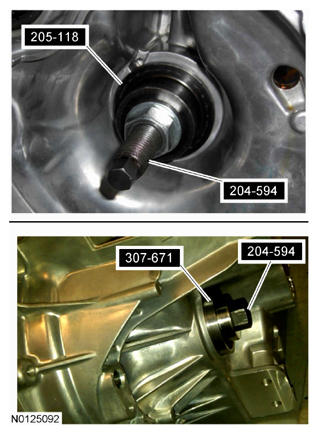

Using the special tool, install the 2 clutch housing output shaft bearings.

Fig 4: Installing Clutch Housing Output Shaft Bearing Using Special Tool
Courtesy of FORD MOTOR CO.
