Differential Shim Selection

SPECIAL TOOLS DESCRIPTION

	Differential Bearing Preload Tool DPS6 307-681 (includes 307-681/1 and 307-681/2)
	Shim Selection Set 308-164

NOTE: If the differential, differential bearings, clutch housing or transaxle case have been replaced this procedure must be performed.

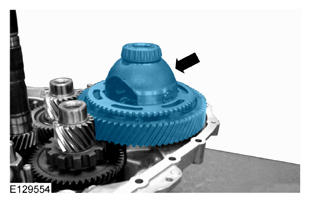

Install the differential.

Fig 1: Locating Differential
Courtesy of FORD MOTOR CO.
NOTE: Install the alignment standoffs at the transaxle dowel locations.

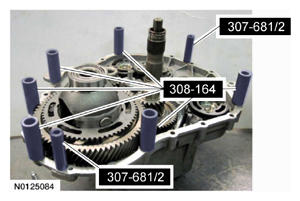

NOTE: Place the special tools around the differential area as shown in illustration.

Install the special tools.

Fig 2: Installing Special Tools On Differential Area
Courtesy of FORD MOTOR CO.

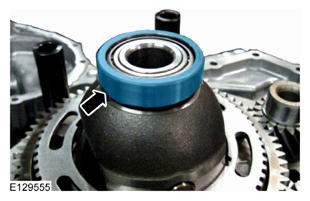

Position the differential bearing race on the differential. For removal of the differential bearing race from the clutch housing refer to DIFFERENTIAL SHIM .

Fig 3: Locating Differential Bearing Race
Courtesy of FORD MOTOR CO.

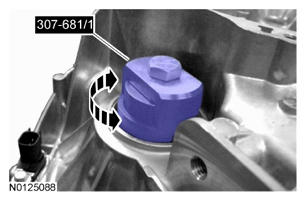

Install the special tool on the differential.

Fig 4: Installing Special Tool On Differential
Courtesy of FORD MOTOR CO.
Position the clutch housing on the special tools and install the 6 special tool bolts, 4 shown in illustration.
- Tighten to 18 Nm (13 lb-ft).

  Fig 5: Positioning Clutch Housing On Special Tools
  Courtesy of FORD MOTOR CO.
Turn the differential several times clockwise and counter-clockwise to make sure the differential turns freely and that the bearing is seated.
Turn the differential pre-load tool as shown in illustration.

Fig 6: Turning Differential Pre-Load Tool
Courtesy of FORD MOTOR CO.

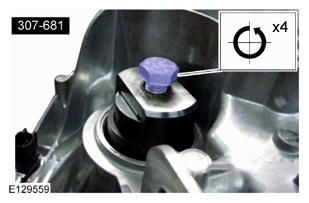

Loosen the differential pre-load tool bolt.

Fig 7: Identifying Differential Pre-Load Tool Bolt
Courtesy of FORD MOTOR CO.
NOTE: The shim size should be the average of the 3 measurements.

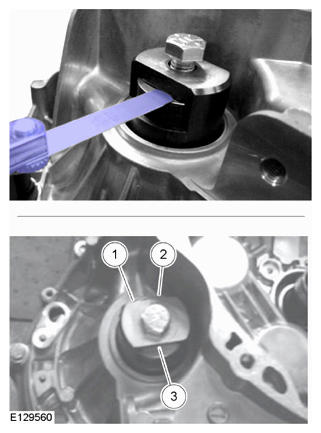

Using a feeler gauge measure the clearance at points 1, 2 and 3 and record. Using the average of the recorded measurements, select the appropriate shim from the shim selection chart in the SPECIFICATIONS .

Fig 8: Measuring Clearance Using Feeler Gauge
Courtesy of FORD MOTOR CO.
Remove the special tools.
Install the selected shim into the clutch housing and install the differential bearing race. For additional information, refer to DIFFERENTIAL SHIM .
