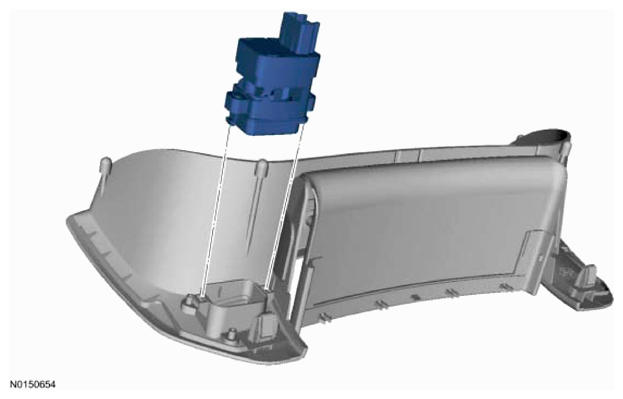

Exploded View

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
G09090057
Item Service Part Number Description Tool Number Material Name Notes
1 19C734 In-vehicle temperature sensor - - -
