Section 3298 (Engine - 2.7L ECOBOOST (238KW/324PS)): Disassembly: Engine

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW

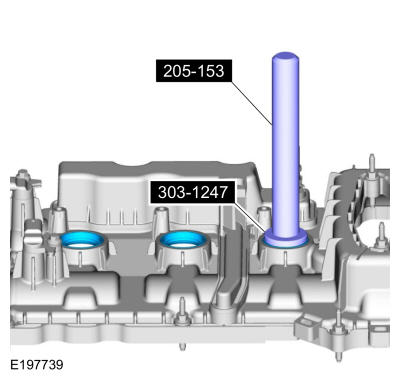

Courtesy of FORD MOTOR COMPANY	303-1247 VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW

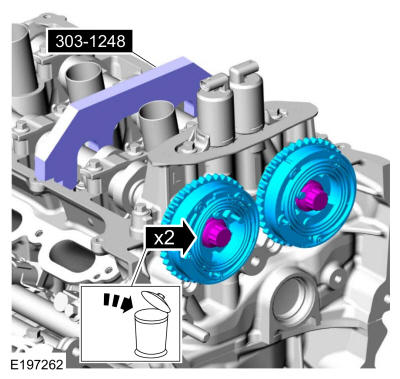

Courtesy of FORD MOTOR COMPANY	303-1248 Camshaft holding tools TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) TKIT-2014D-ROW3 TKIT-2014D-FL_ROW

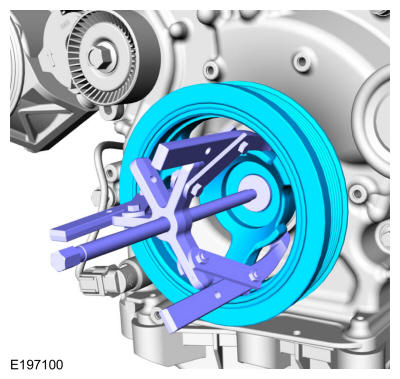

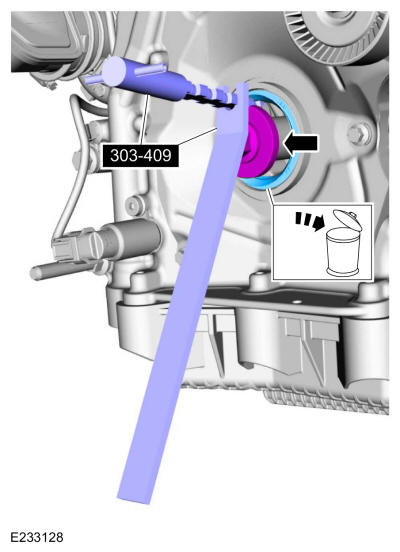

Courtesy of FORD MOTOR COMPANY	303-409 (T92C-6700-CH) Remover, Crankshaft Seal TKIT-1992-FH/FMH/FLMH TKIT-1993-LMH/MH
Floor Crane
Three Leg Puller
Mounting Stand
Plastic Scraper
Hose Clamp Remover/Installer
Flat-Bladed Screwdriver

Materials

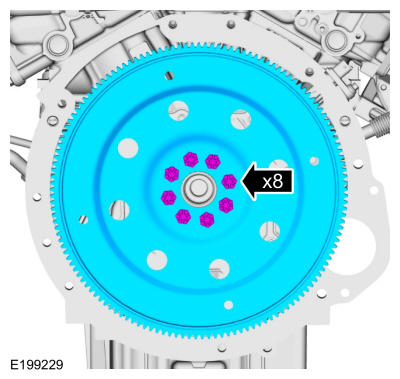

1. Remove the bolts and the flexplate.

   Courtesy of FORD MOTOR COMPANY

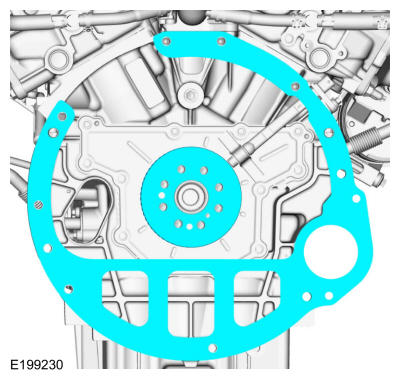

2. Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.

   Courtesy of FORD MOTOR COMPANY

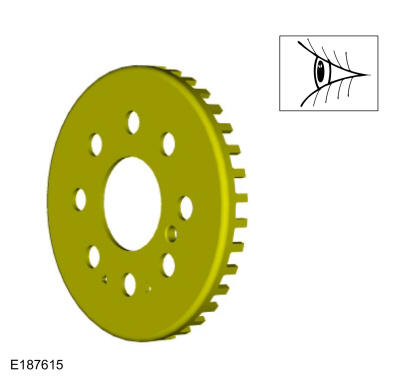

3. Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be replaced.

   Courtesy of FORD MOTOR COMPANY

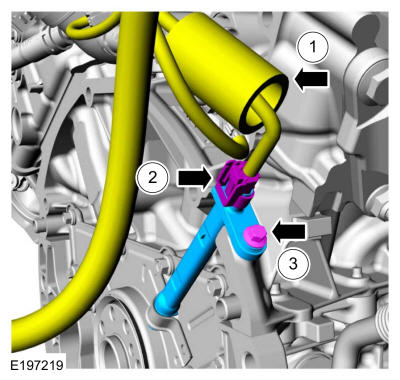

4. 1. Reposition the CKP sensor electrical connector insulator.
   2. Disconnect the CKP sensor electrical connector.
   3. Remove the bolt and the CKP sensor.

   Courtesy of FORD MOTOR COMPANY

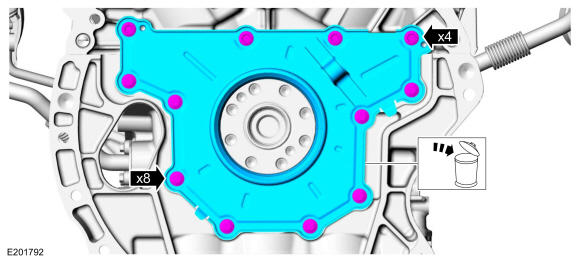

5. Remove the bolts and the crankshaft rear seal and retainer plate.
   • Discard the crankshaft rear seal and retainer plate.

   Courtesy of FORD MOTOR COMPANY

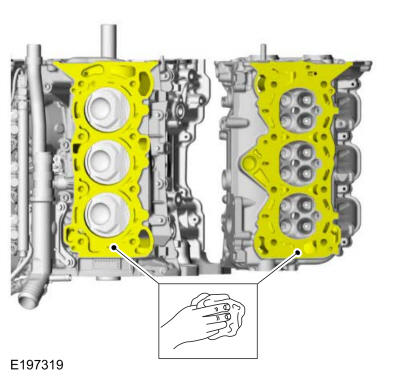

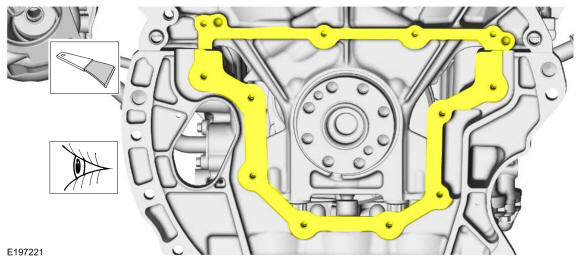

6. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

   Clean and inspect the mating surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

   Material

   : Motorcraft ® Silicone Gasket Remover / ZC-30-A

   Material

   : Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

   Material

   : Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

   Courtesy of FORD MOTOR COMPANY

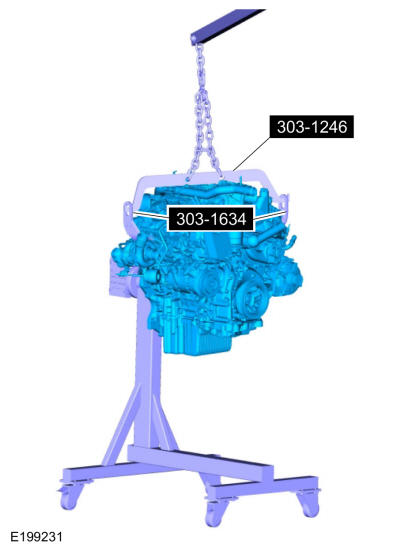

7. Using a floor crane, install the engine on a mounting stand. Remove Special Service Tool: 303-1246 Engine Spreader Bar., 303-1634 Lift Eyes (2). Use the General Equipment: Floor Crane Use the General Equipment: Mounting Stand

   Courtesy of FORD MOTOR COMPANY

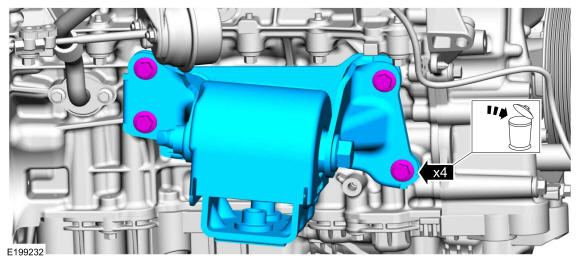

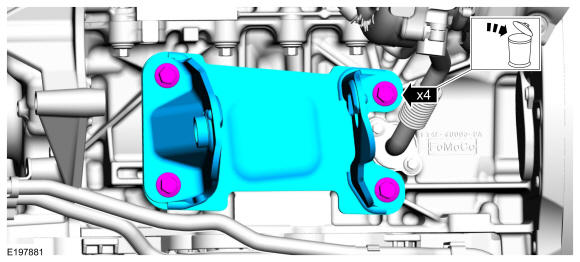

8. Remove the bolts and the engine mount-to-cylinder block bracket.
   • Discard the bolts.

   Courtesy of FORD MOTOR COMPANY

9. Remove and discard the engine mount bracket-to-engine bolts.
   1. Remove the engine mount and bracket as an assembly.
   2. Clean the engine mount bracket-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

   Courtesy of FORD MOTOR COMPANY

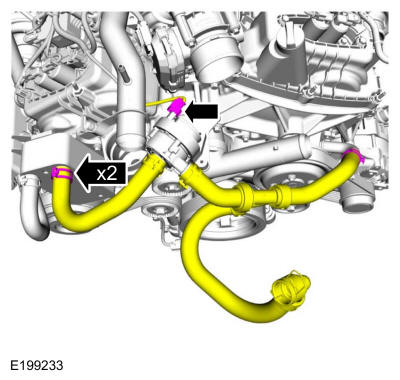

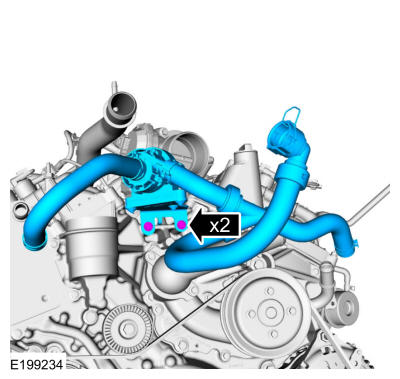

10. • Disconnect the auxiliary coolant pump electrical connector.
    • Release the clamps and disconnect the coolant hoses.

    Courtesy of FORD MOTOR COMPANY

11. Remove the bolts and the auxiliary coolant pump.

    Courtesy of FORD MOTOR COMPANY

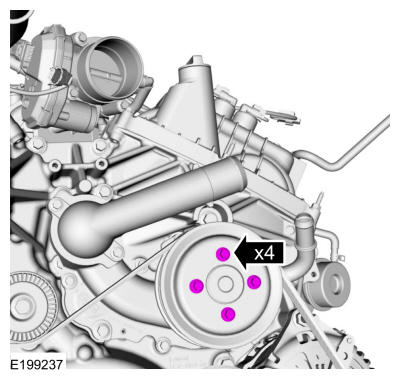

12. Loosen the coolant pump pulley bolts.

    Courtesy of FORD MOTOR COMPANY

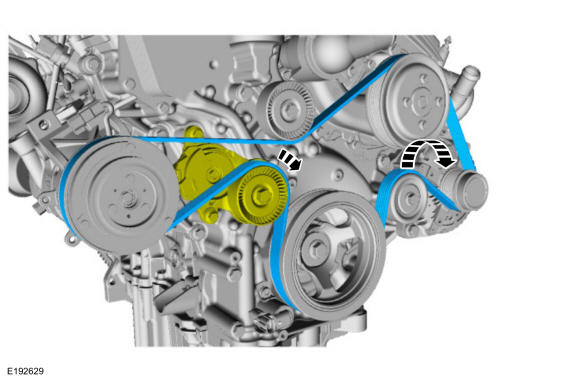

13. Rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt.

    Courtesy of FORD MOTOR COMPANY

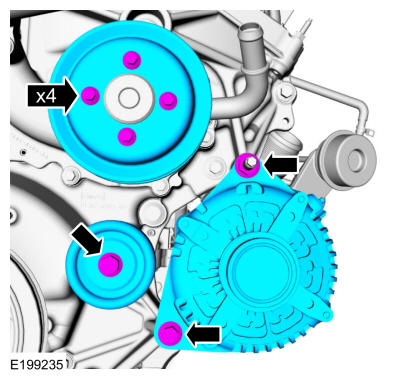

14. • Remove the bolts and the coolant pump pulley.
    • Remove the bolt and the idler pulley.
    • Remove the bolt, the nut and the generator.

    Courtesy of FORD MOTOR COMPANY

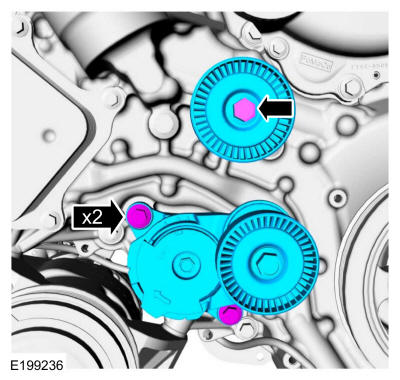

15. Remove the bolts, the accessory drive belt tensioner and the idler pulley.

    Courtesy of FORD MOTOR COMPANY

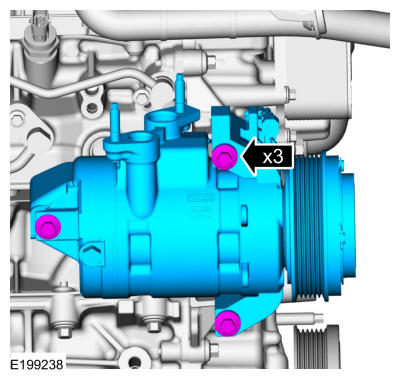

16. Remove the bolts and the A/C compressor.

    Courtesy of FORD MOTOR COMPANY

17. Remove the nuts and the bracket.

    Courtesy of FORD MOTOR COMPANY

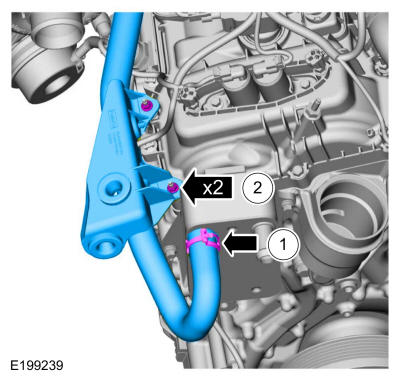

18. 1. Release the clamp and disconnect the heater hose.
    2. Remove the nuts and the bracket and heater hose.

    Courtesy of FORD MOTOR COMPANY

19. Remove the bolts and the oil cooler.

    Courtesy of FORD MOTOR COMPANY

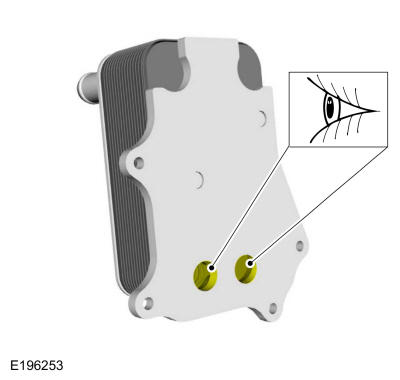

20. Inspect the oil cooler. If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. Refer to: Engine .

    Courtesy of FORD MOTOR COMPANY

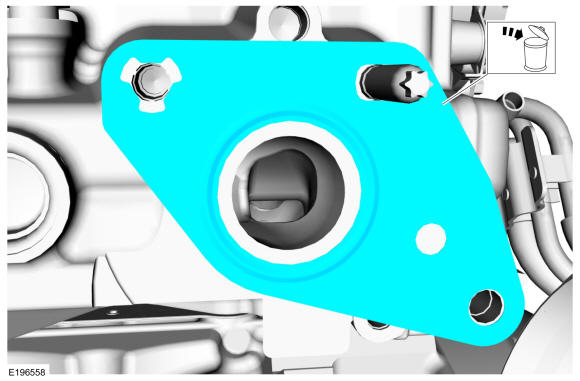

21. Remove and discard the oil cooler gasket.

    Courtesy of FORD MOTOR COMPANY

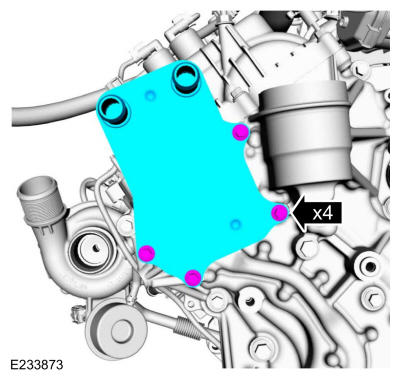

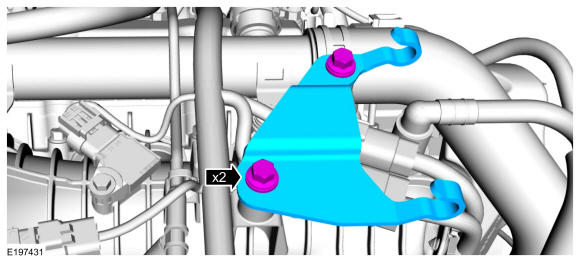

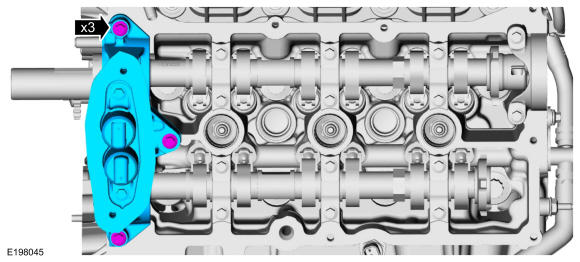

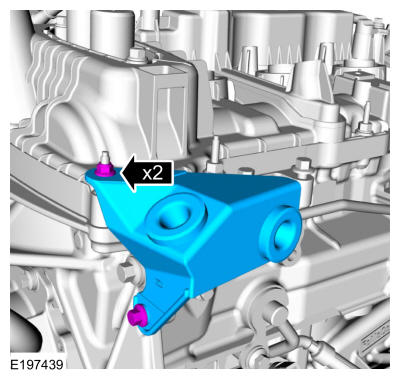

22. Remove the bolts and the engine appearance cover bracket.

    Courtesy of FORD MOTOR COMPANY

23. • Remove the stud bolt and the wiring harness ground terminal from the rear of the LH cylinder head.
    • Disconnect the KS wiring harness connector and detach the retainer.

    Courtesy of FORD MOTOR COMPANY

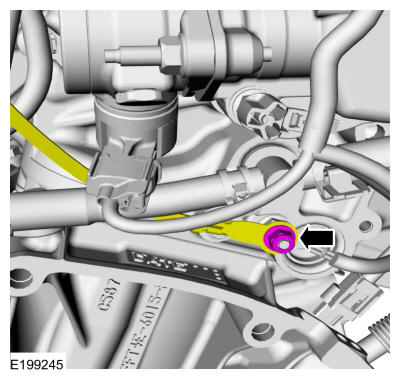

24. Remove the nut and the ground terminal from the rear of the RH cylinder head.

    Courtesy of FORD MOTOR COMPANY

25. • Remove the stud bolt and the wiring harness ground terminal from the rear of the RH cylinder head.
    • Disconnect the fuel pump electrical connector.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

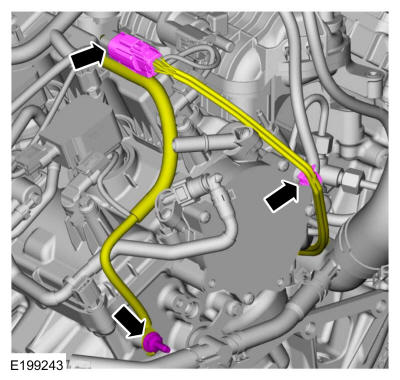

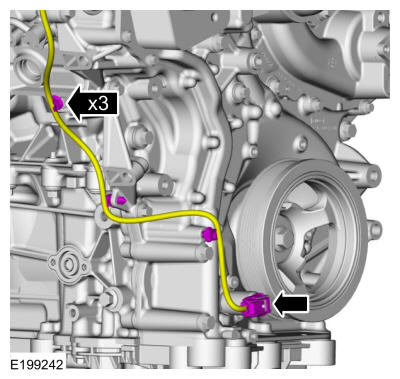

26. Disconnect the oil control solenoid electrical connector and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

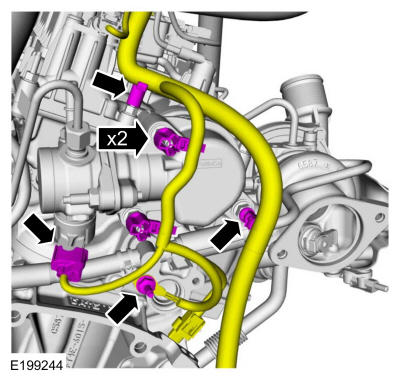

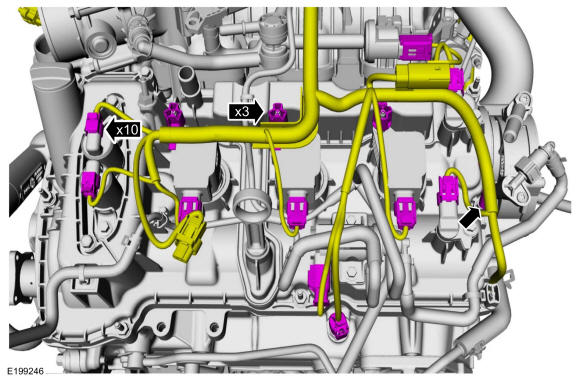

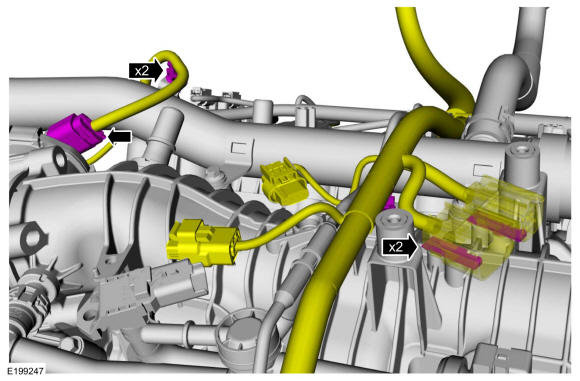

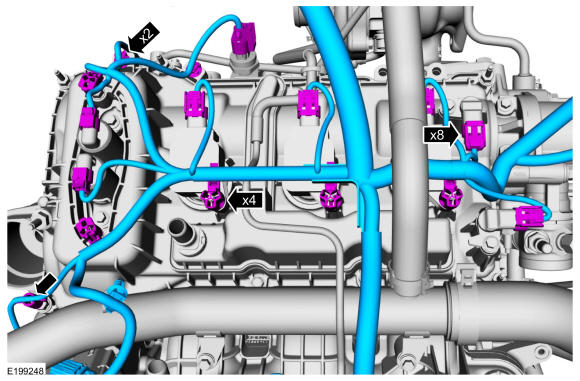

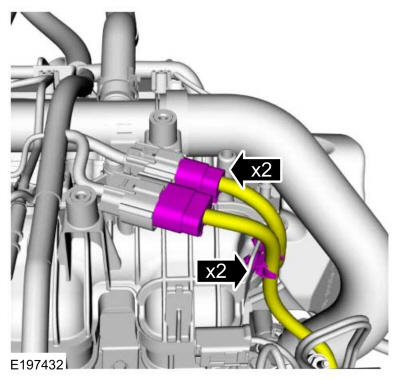

27. Disconnect the engine wiring harness electrical connectors and detach the retainers.

    Courtesy of FORD MOTOR COMPANY

28. Disconnect the engine wiring harness electrical connectors and detach the retainers.

    Courtesy of FORD MOTOR COMPANY

29. Disconnect the engine wiring harness electrical connectors and detach the retainers.

    Courtesy of FORD MOTOR COMPANY

30. Disconnect the engine wiring harness electrical connectors and detach the retainers.
    • Remove the engine wiring harness from the engine.

    Courtesy of FORD MOTOR COMPANY

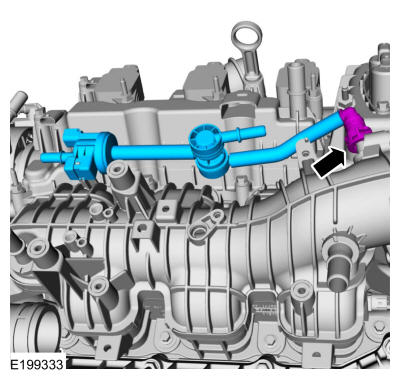

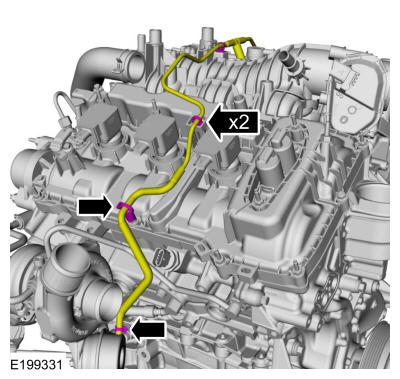

31. Detach the vacuum hose retainers.
    • Release the clamp and disconnect the vacuum hose from the TC.

    Courtesy of FORD MOTOR COMPANY

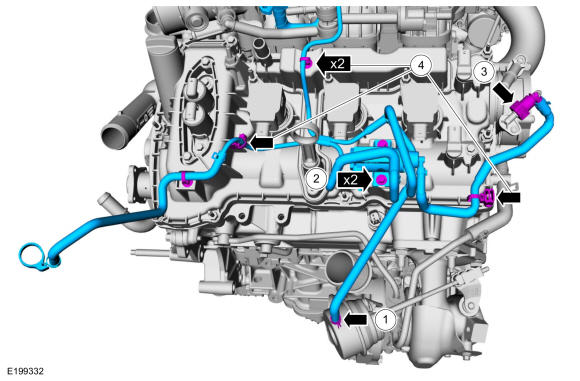

32. 1. Release the clamp and disconnect the vacuum hose from the TC.
    2. Remove the vacuum control solenoid bolts.
    3. Disconnect the vacuum tube quick release coupling. Refer to: Quick Release Coupling .
    4. Detach the retainers and remove the vacuum tube assembly from the engine.

    Courtesy of FORD MOTOR COMPANY

33. Disconnect the quick release coupling and remove the EVAP purge valve. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

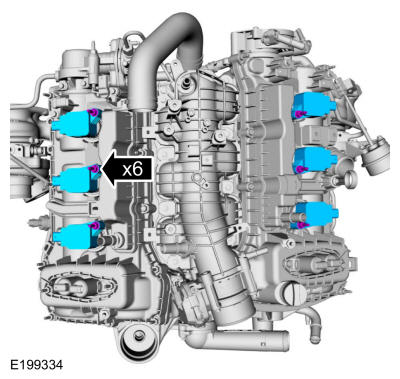

34. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Remove the stud bolts and the ignition-on-coils.

    Courtesy of FORD MOTOR COMPANY

35. Remove the bolts and position the coolant pipe aside.

    Courtesy of FORD MOTOR COMPANY

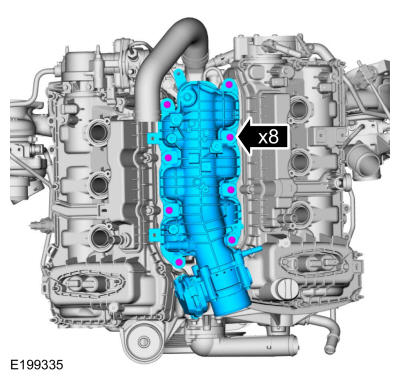

36. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

    Loosen the bolts and remove the intake manifold.

    Courtesy of FORD MOTOR COMPANY

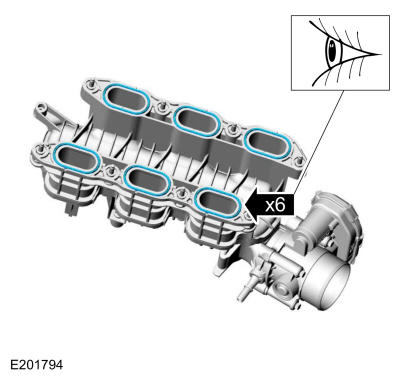

37. • Remove and inspect the gaskets, replace as necessary.
    • Clean and inspect all sealing surfaces.

    Courtesy of FORD MOTOR COMPANY

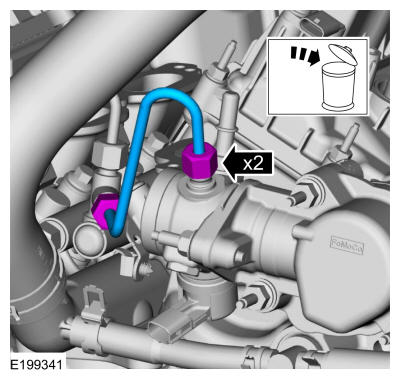

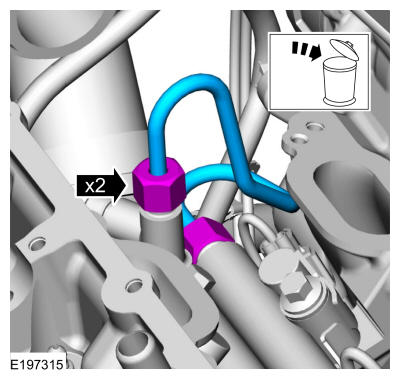

38. NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of high-pressure fuel tube flare nuts.
    • Loosen the high-pressure fuel pump-to-fuel rail high-pressure fuel tube flare nuts.
    • Remove and discard the high-pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

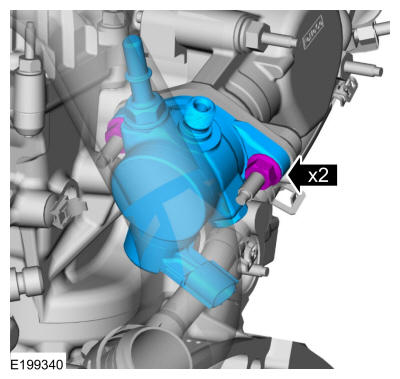

39. NOTE: Alternately loosen the high-pressure fuel pump nuts one revolution at a time.

    Remove the nuts and the high-pressure fuel pump.

    Courtesy of FORD MOTOR COMPANY

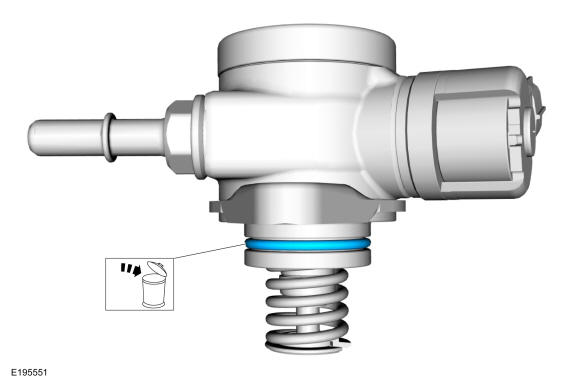

40. Remove and discard the high-pressure fuel pump O-ring seal.

    Courtesy of FORD MOTOR COMPANY

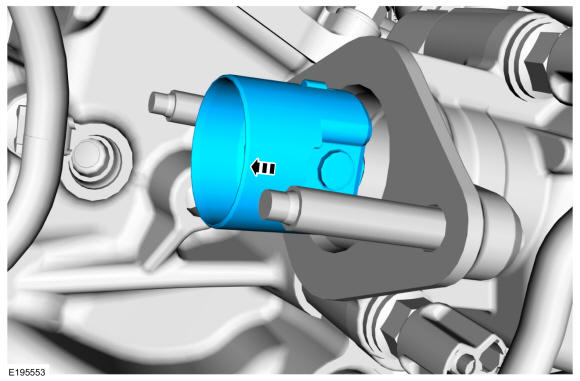

41. Remove the high-pressure fuel pump tappet.

    Courtesy of FORD MOTOR COMPANY

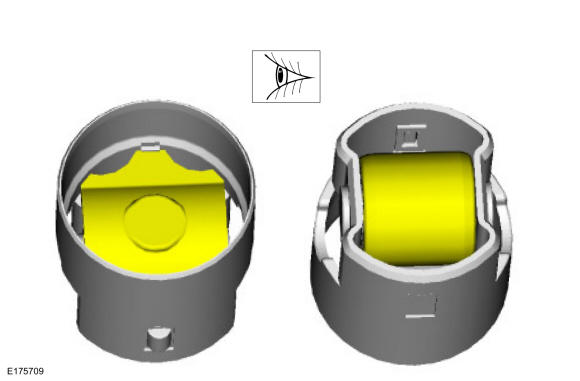

42. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as necessary.

    Courtesy of FORD MOTOR COMPANY

43. Remove the stud bolts and the high-pressure fuel pump drive unit.

    Courtesy of FORD MOTOR COMPANY

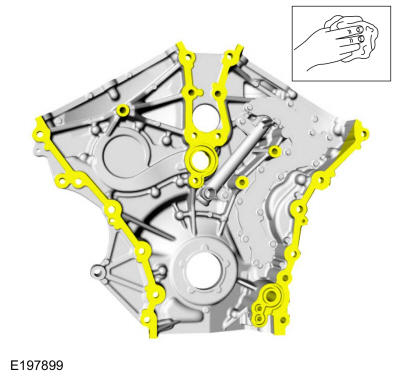

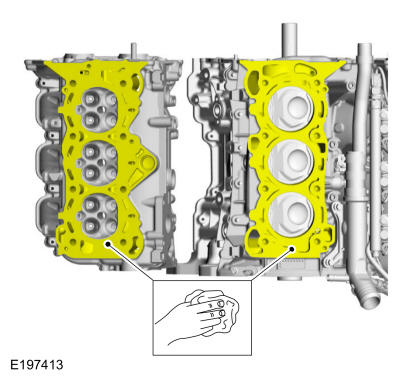

44. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean and inspect the mating surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material

    : Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material

    : Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

45. • Loosen the fuel rail-to-fuel rail high-pressure fuel tube flare nuts.
    • Remove and discard the high-pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

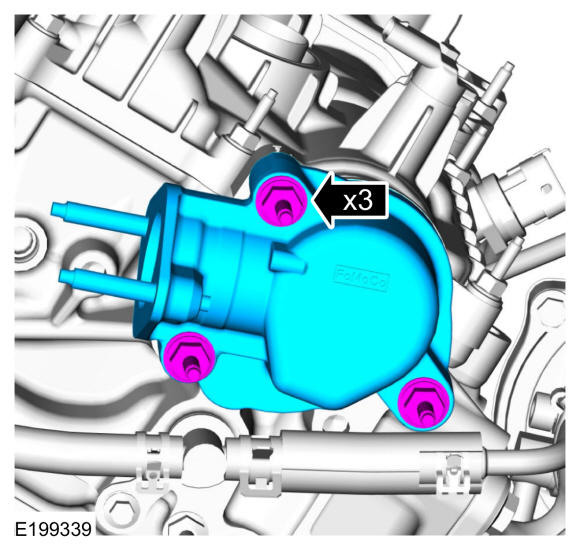

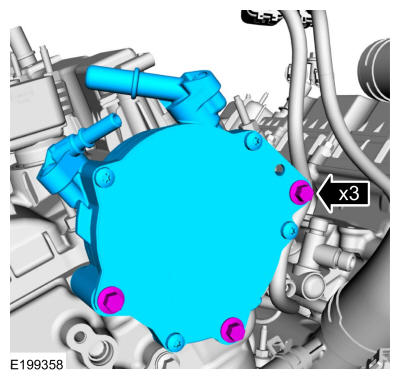

46. Remove the bolts and the brake vacuum pump.

    Courtesy of FORD MOTOR COMPANY

47. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean and inspect the mating surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material

    : Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material

    : Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

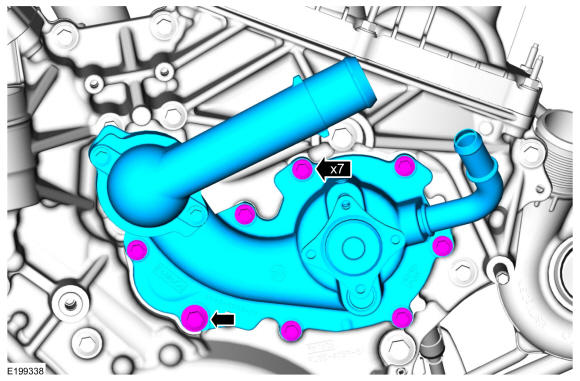

48. Remove the bolts and the coolant pump.

    Courtesy of FORD MOTOR COMPANY

49. Remove and discard the coolant pump gasket and seal.

    Courtesy of FORD MOTOR COMPANY

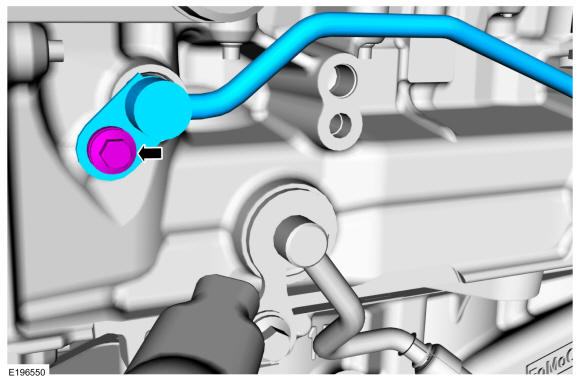

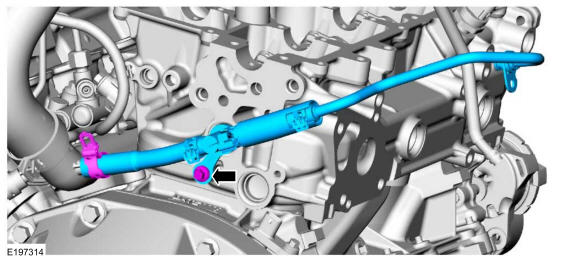

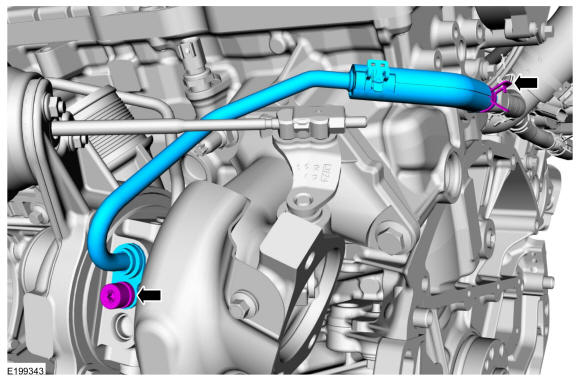

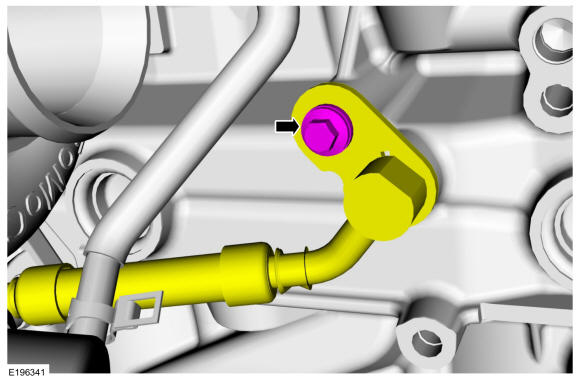

50. Remove the TC coolant return tube bolt, then disconnect and remove the TC coolant return tube.

    Courtesy of FORD MOTOR COMPANY

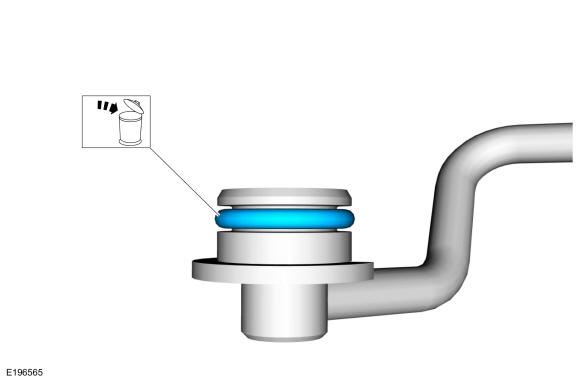

51. Remove and discard the TC coolant return tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

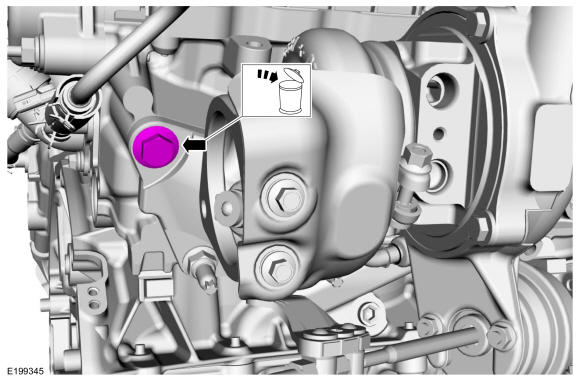

52. Remove the and discard the upper left TC nut.

    Courtesy of FORD MOTOR COMPANY

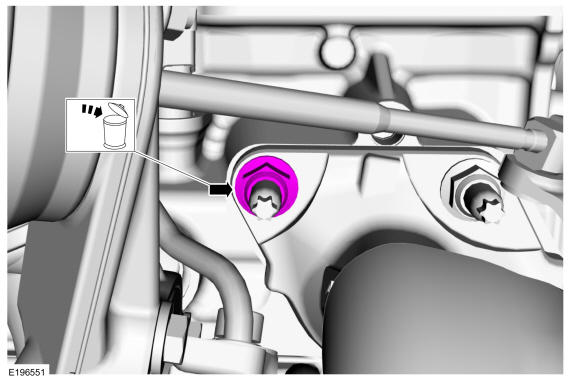

53. Remove the and discard the upper left TC mounting stud.

    Courtesy of FORD MOTOR COMPANY

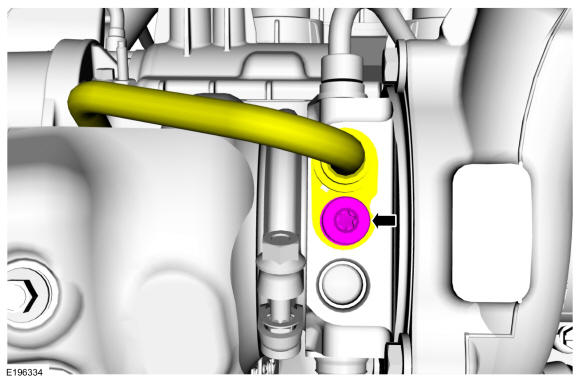

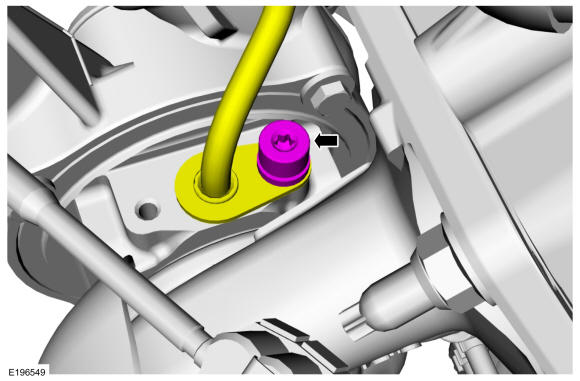

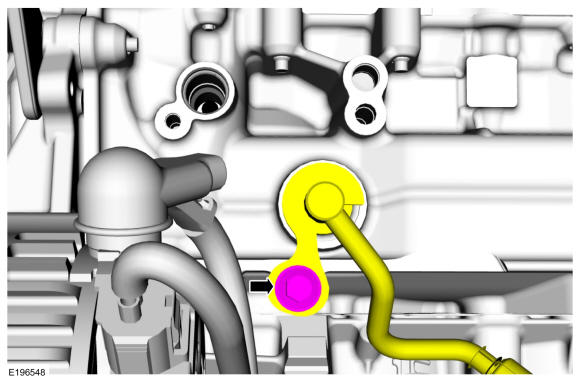

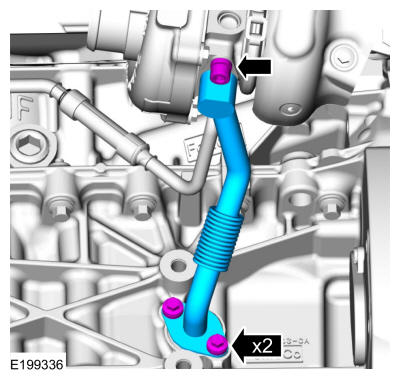

54. Remove the TC oil supply tube bolt and then disconnect the TC oil supply tube from the TC.

    Courtesy of FORD MOTOR COMPANY

55. Remove the TC oil supply tube bolt and then remove the TC oil supply tube.

    Courtesy of FORD MOTOR COMPANY

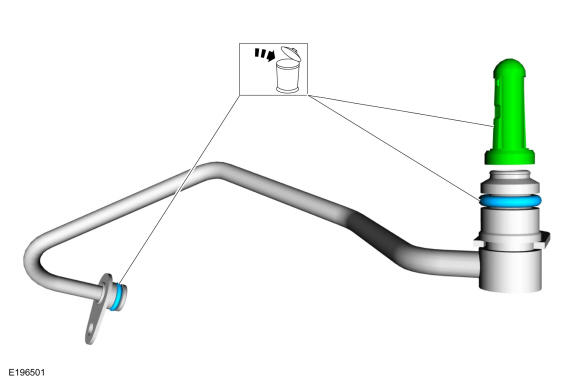

56. Remove and discard the TC oil supply tube O-ring seals and the TC oil supply tube oil filter.

    Courtesy of FORD MOTOR COMPANY

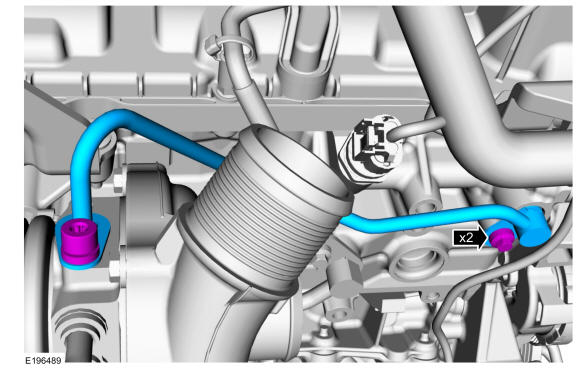

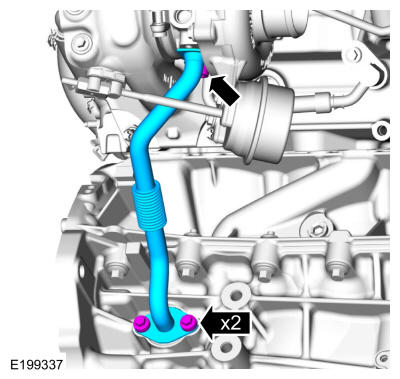

57. Remove the TC oil return tube bolts and then remove the TC oil return tube.

    Courtesy of FORD MOTOR COMPANY

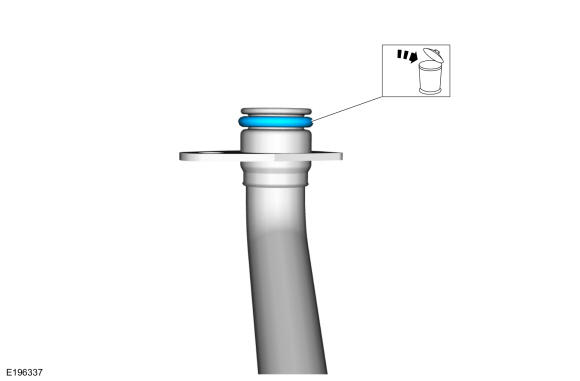

58. Remove and discard the TC oil return tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

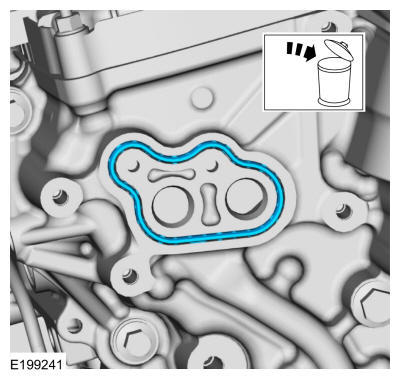

59. Remove and discard the TC oil return tube tube-to-engine block gasket.

    Courtesy of FORD MOTOR COMPANY

60. Remove the TC coolant supply tube bolt.

    Courtesy of FORD MOTOR COMPANY

61. NOTE: Remove the TC coolant supply tube from the engine block while removing the TC.

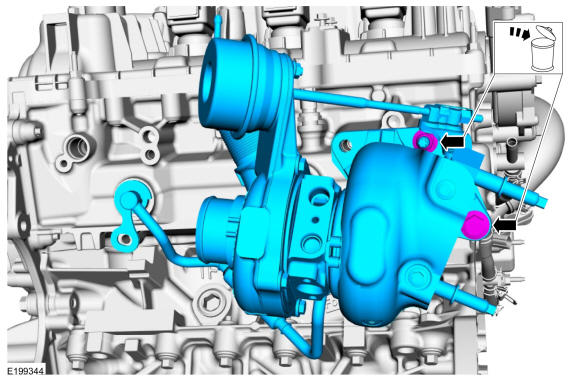

    Remove and discard the TC retainers and then remove the TC.

    Courtesy of FORD MOTOR COMPANY

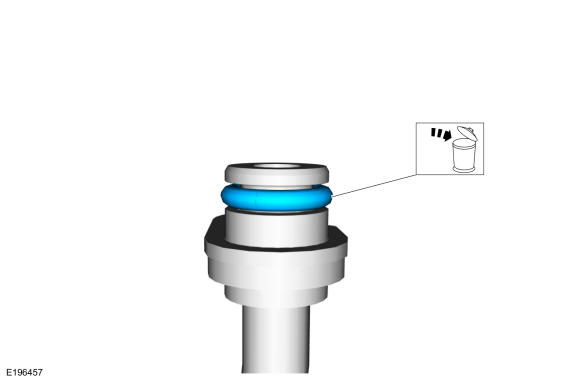

62. Remove and discard the TC coolant supply tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

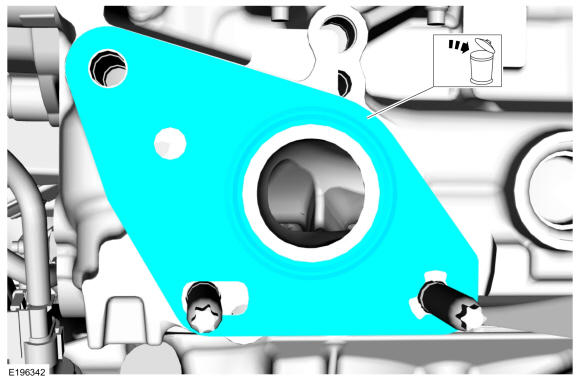

63. Remove and discard the TC gasket.

    Courtesy of FORD MOTOR COMPANY

64. Remove and discard the TC mounting stud.

    Courtesy of FORD MOTOR COMPANY

65. Remove the TC oil supply tube bolts and then remove the TC oil supply tube.

    Courtesy of FORD MOTOR COMPANY

66. Remove and discard the TC oil supply tube O-ring seals and the TC oil supply tube oil filter.

    Courtesy of FORD MOTOR COMPANY

67. Remove the TC coolant return tube bolt, then disconnect the TC coolant return tube and position out of the way.

    Courtesy of FORD MOTOR COMPANY

68. Remove and discard the TC coolant return tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

69. Remove the TC oil return tube bolts and then remove the TC oil return tube.

    Courtesy of FORD MOTOR COMPANY

70. Remove and discard the TC oil return tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

71. Remove and discard the TC oil return tube tube-to-engine block gasket.

    Courtesy of FORD MOTOR COMPANY

72. Remove the TC coolant supply tube bolt.

    Courtesy of FORD MOTOR COMPANY

73. Remove and discard the TC bolt.

    Courtesy of FORD MOTOR COMPANY

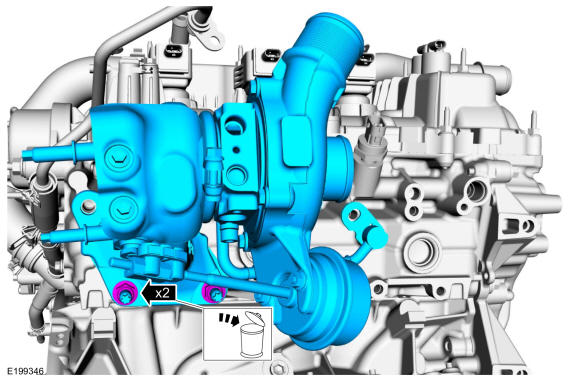

74. NOTE: Remove the TC coolant supply tube from the engine block while removing the TC.

    Remove and discard the TC nuts and then remove the TC.

    Courtesy of FORD MOTOR COMPANY

75. Remove and discard the TC coolant supply tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

76. Remove and discard the TC gasket.

    Courtesy of FORD MOTOR COMPANY

77. Remove and discard the TC mounting studs.

    Courtesy of FORD MOTOR COMPANY

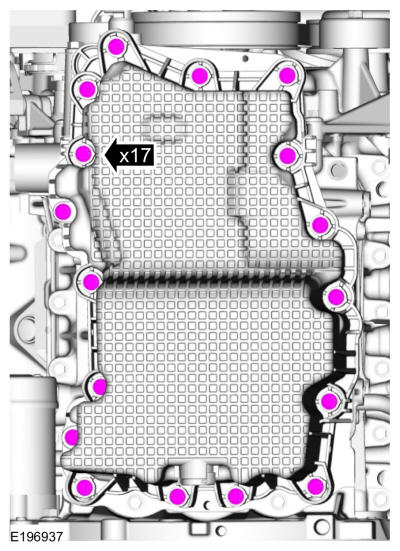

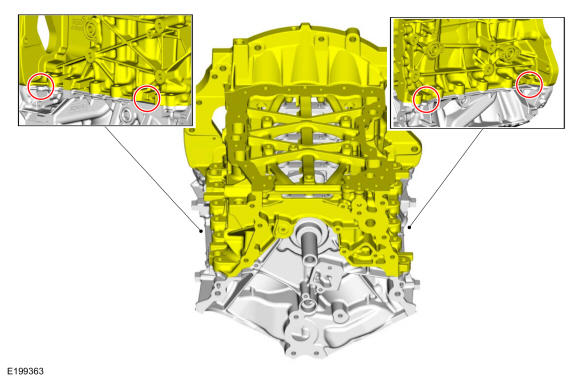

78. Remove the oil pan bolts.

    Courtesy of FORD MOTOR COMPANY

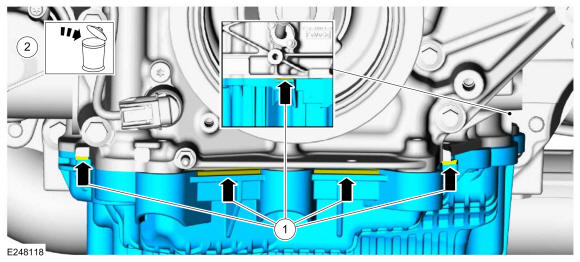

79. 1. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and separate the oil pan from the bottom of the engine.
    2. NOTE: Do not reuse the oil pan.

       Remove and discard the oil pan.

    Courtesy of FORD MOTOR COMPANY

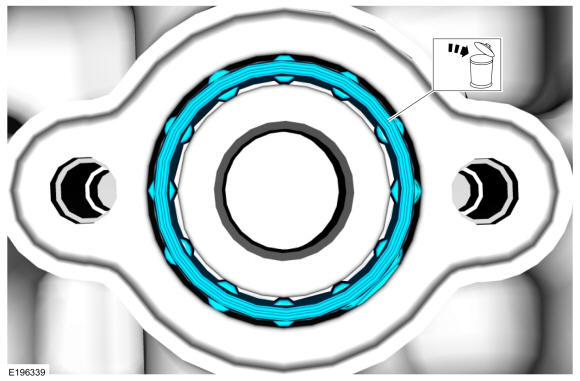

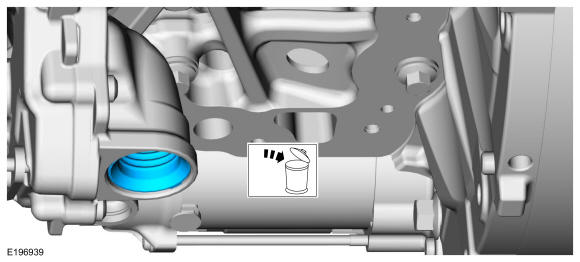

80. Remove and discard the oil pump seal.

    Courtesy of FORD MOTOR COMPANY

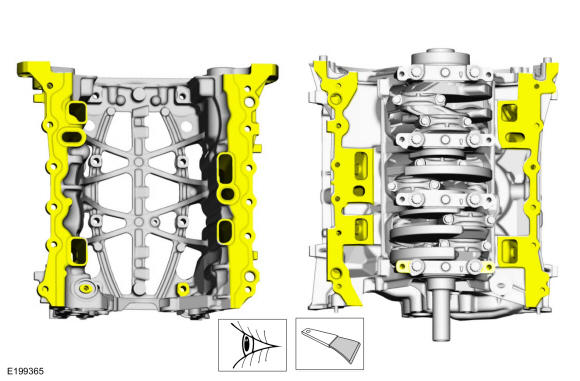

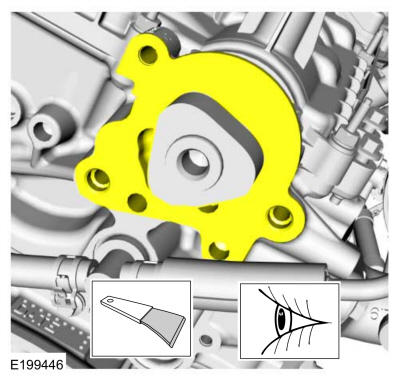

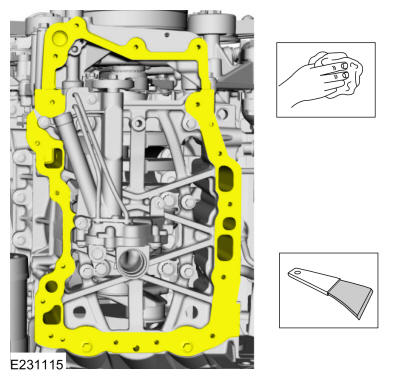

81. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

    Make sure that the oil pan sealing surfaces of the cylinder block and engine front cover are free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material

    : Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material

    : Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

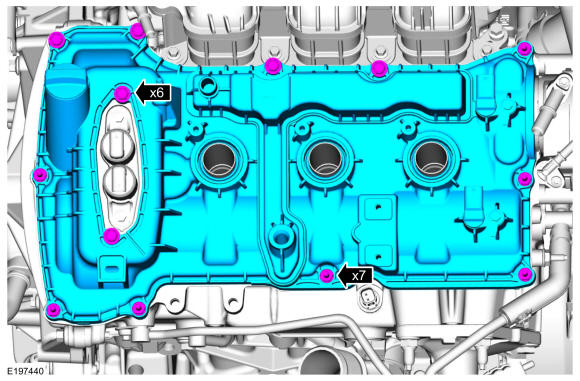

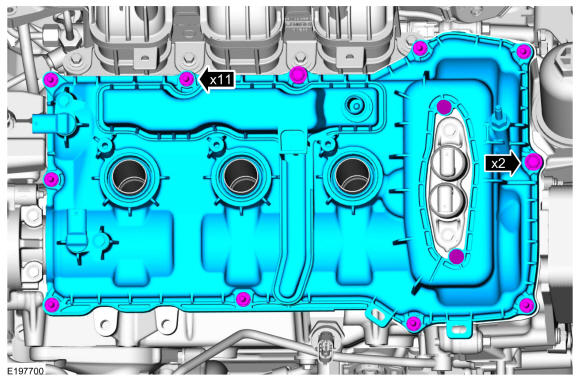

82. Loosen the fasteners and remove the valve cover.

    Courtesy of FORD MOTOR COMPANY

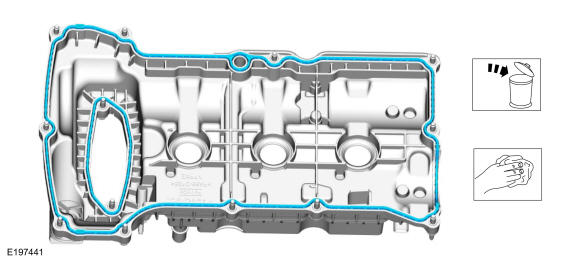

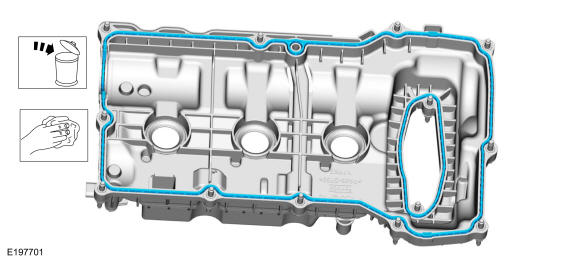

83. Remove and discard the gasket.
    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Courtesy of FORD MOTOR COMPANY

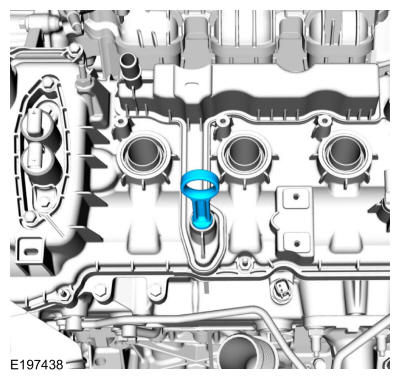

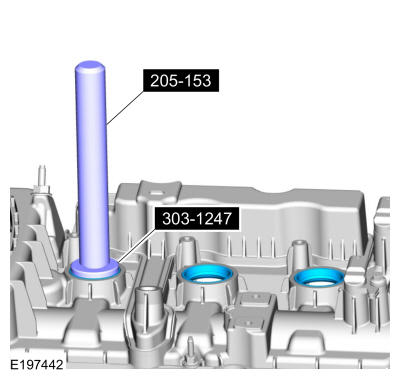

84. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

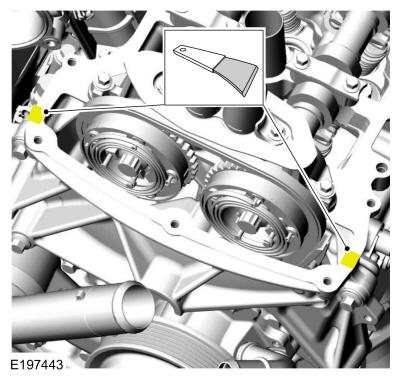

85. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material

    : Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material

    : Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

86. Remove the oil level indicator.

    Courtesy of FORD MOTOR COMPANY

87. Loosen the fasteners and remove the valve cover.

    Courtesy of FORD MOTOR COMPANY

88. Remove and discard the gasket.
    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Courtesy of FORD MOTOR COMPANY

89. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

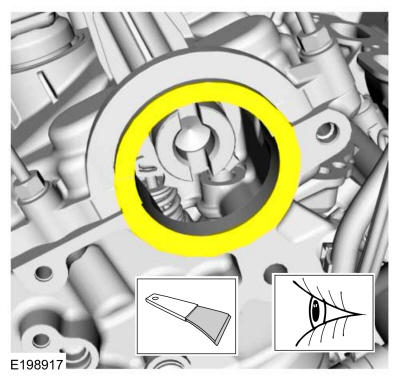

90. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material

    : Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material

    : Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

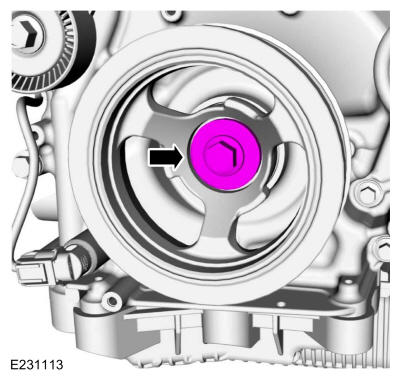

91. Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

92. Using the 3 Leg Puller and a step plate, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller

    Courtesy of FORD MOTOR COMPANY

93. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.
    1. Install the crankshaft pulley bolt.
    2. Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. NOTE: Retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

       Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

94. NOTE: There are 4 different types of fasteners, note location of each fastener for assembly.

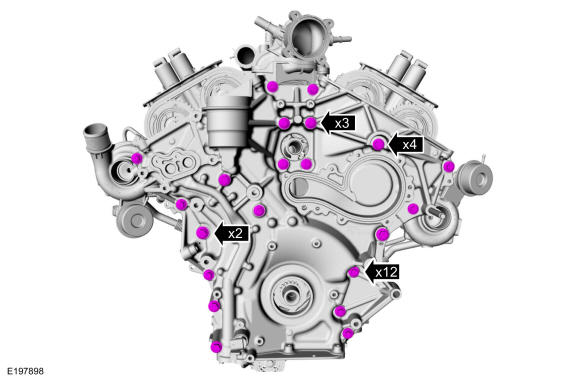

    Remove the engine front cover fasteners.

    Courtesy of FORD MOTOR COMPANY

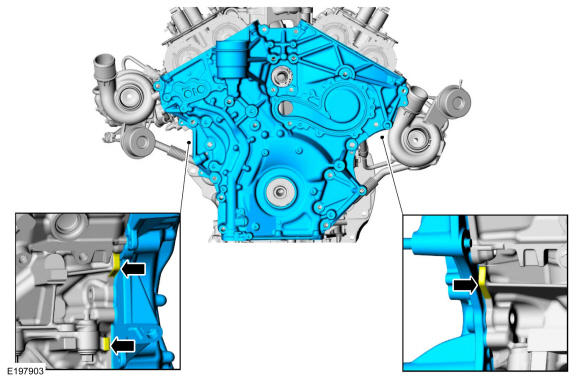

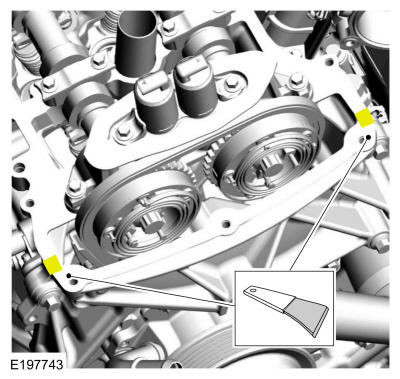

95. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and remove the engine front cover. Use the General Equipment: Flat-Bladed Screwdriver

    Courtesy of FORD MOTOR COMPANY

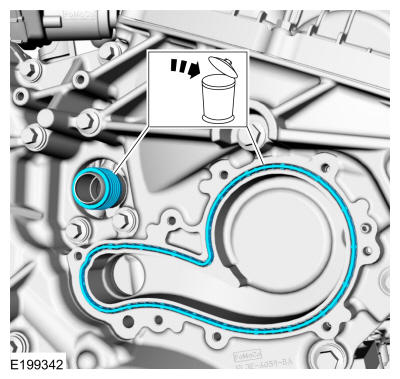

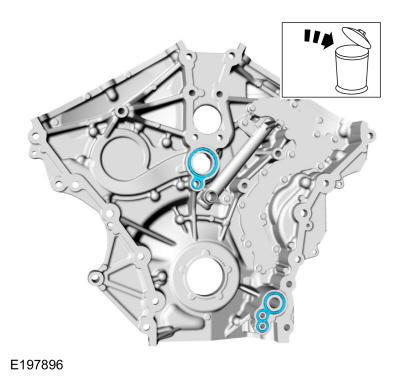

96. Remove and discard the engine front cover gaskets.

    Courtesy of FORD MOTOR COMPANY

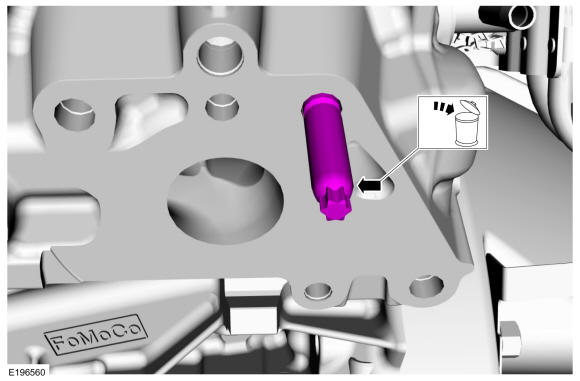

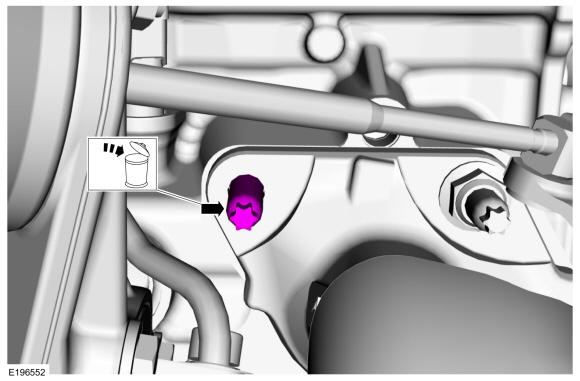

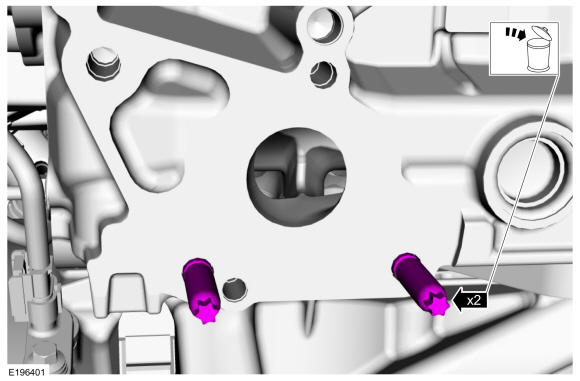

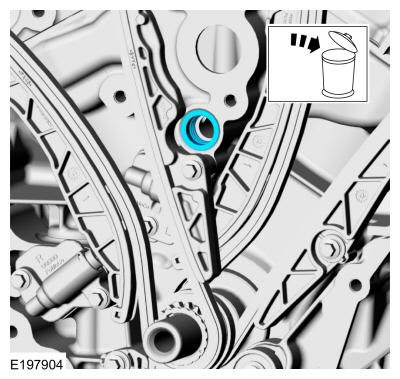

97. Remove and discard the oil gallery seal (6G068).

    Courtesy of FORD MOTOR COMPANY

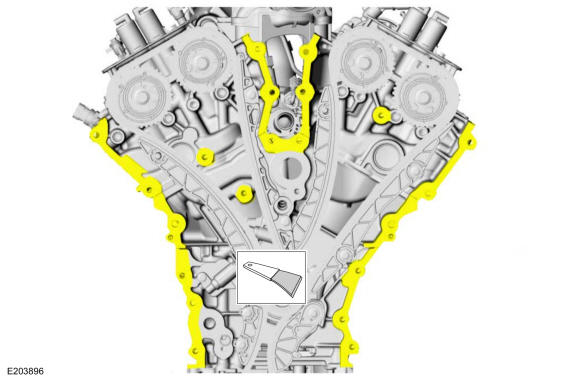

98. NOTE: Only use a 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) to clean the engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.
    • Clean the engine front cover using a 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm. Refer to: RTV Sealing Surface Cleaning and Preparation .
    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

      Material

      : Motorcraft ® Silicone Gasket Remover / ZC-30-A

      Material

      : Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Material

      : Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

99. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages may cause engine failure.
    NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc ® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material

    : Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material

    : Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

100. NOTE: Rotate the crankshaft utilizing only the original crankshaft pulley bolt. Failure to follow this direction may cause damage to the crankshaft and result in engine failure.

     Install the original crankshaft pulley bolt.

     Courtesy of FORD MOTOR COMPANY

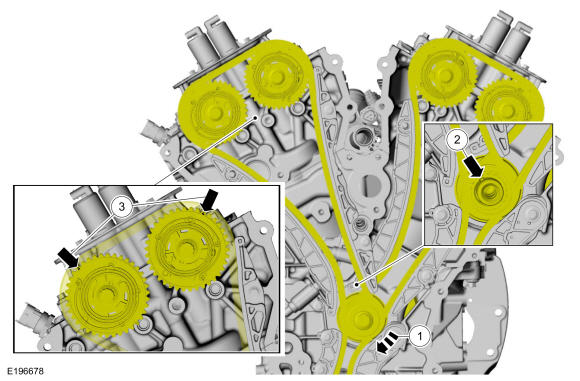

101. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.
     1. Rotate the crankshaft clockwise.
     2. Position the crankshaft sprocket keyway at the 11 o'clock position.
     3. Verify the triangle  timing marks on the VCT units are at the 2 o'clock (intake) and 11 o'clock (exhaust) positions. If the circle  timing marks are at these positions the crankshaft must be turned clockwise one revolution (360 degrees).

     Courtesy of FORD MOTOR COMPANY

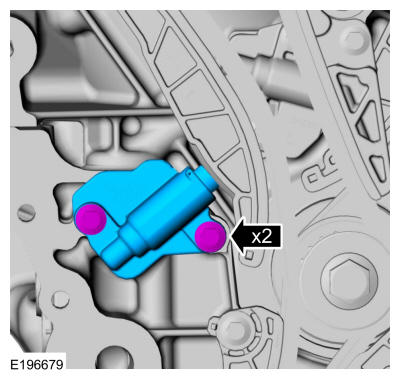

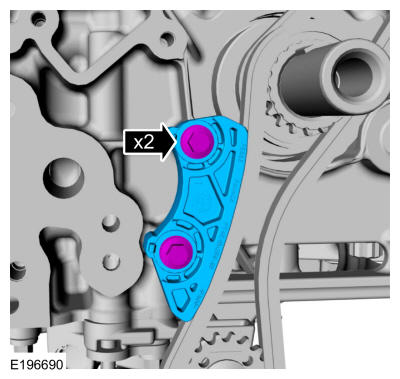

102. Remove the bolts and the RH timing chain tensioner.

     Courtesy of FORD MOTOR COMPANY

103. Remove the RH timing chain tensioner arm.

     Courtesy of FORD MOTOR COMPANY

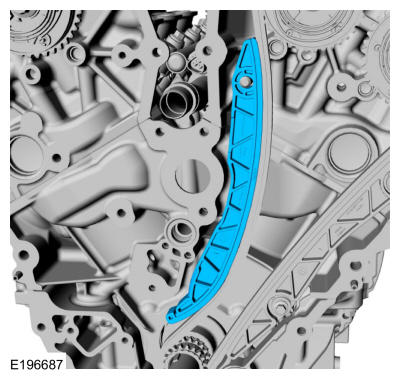

104. Remove the bolts and the RH timing chain guide.

     Courtesy of FORD MOTOR COMPANY

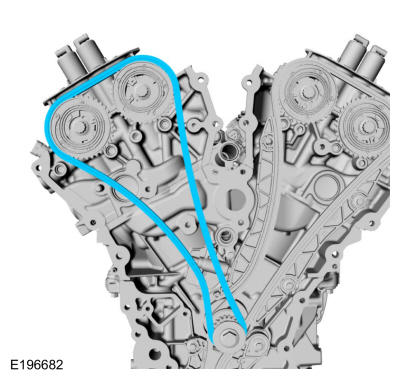

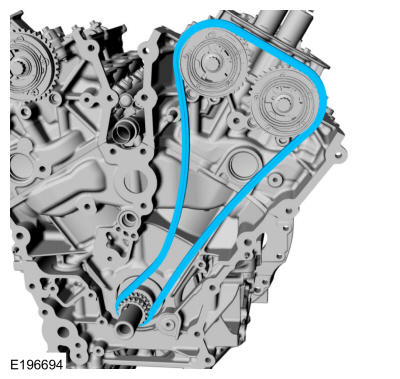

105. Remove the RH timing chain.

     Courtesy of FORD MOTOR COMPANY

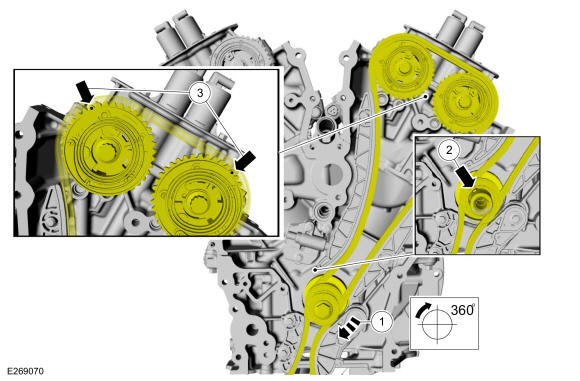

106. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the LH side the circle marks are used.
     1. Rotate the crankshaft clockwise one revolution (360 degrees).
     2. Position the crankshaft sprocket keyway at the 11 o'clock position.
     3. The circle  timing marks on the VCT units will be at the 10 o'clock (intake) and 12:30 (exhaust) positions.

     Courtesy of FORD MOTOR COMPANY

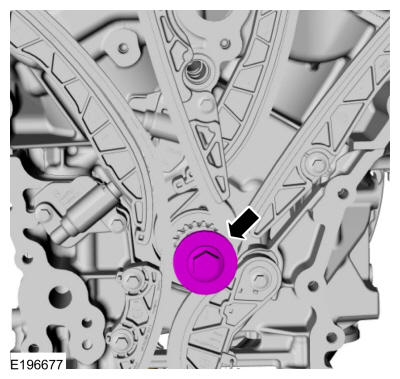

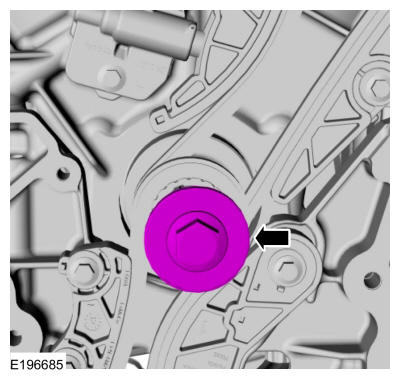

107. Remove the original crankshaft pulley bolt.

     Courtesy of FORD MOTOR COMPANY

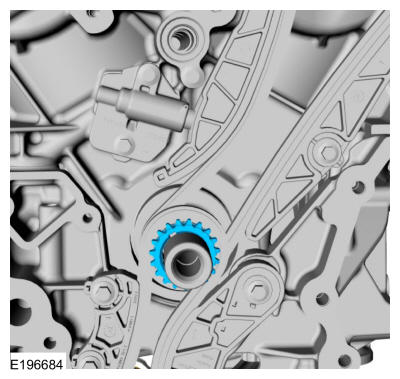

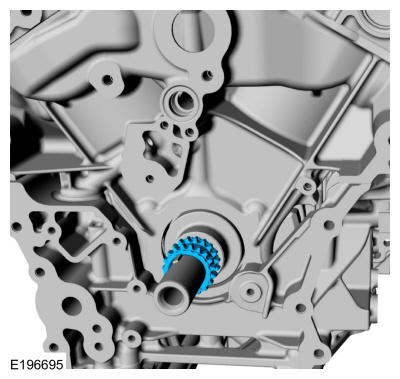

108. Remove the timing chain sprocket.

     Courtesy of FORD MOTOR COMPANY

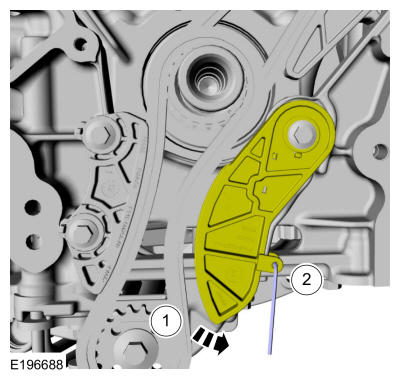

109. 1. Rotate the oil pump drive chain tensioner counterclockwise.
     2. Insert a small hex wrench or pin into the holes of the tensioner to secure the end of the spring.

     Courtesy of FORD MOTOR COMPANY

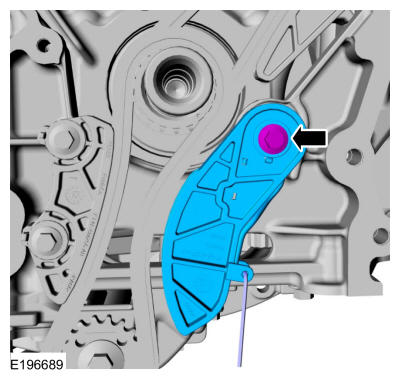

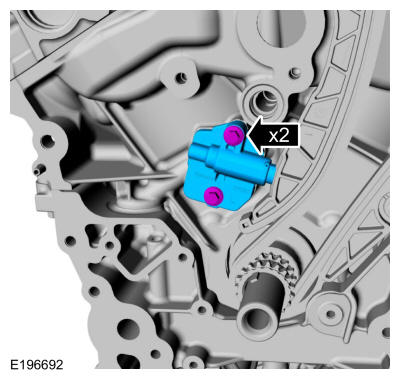

110. Remove the bolt and oil pump drive chain tensioner.

     Courtesy of FORD MOTOR COMPANY

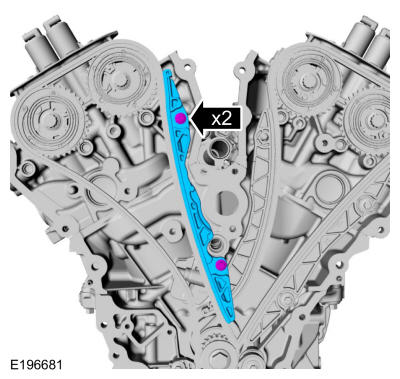

111. Remove the bolts and oil pump drive chain guide.

     Courtesy of FORD MOTOR COMPANY

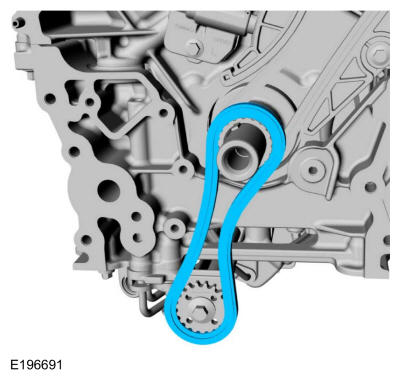

112. Remove the oil pump drive chain.

     Courtesy of FORD MOTOR COMPANY

113. Remove the bolts and the LH timing chain tensioner.

     Courtesy of FORD MOTOR COMPANY

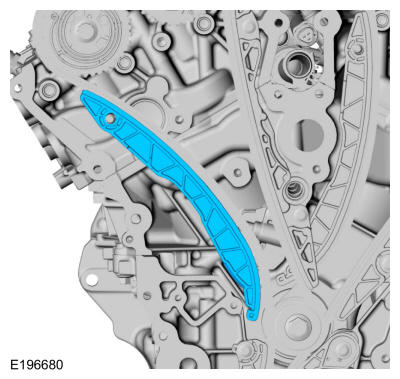

114. Remove the LH timing chain tensioner arm.

     Courtesy of FORD MOTOR COMPANY

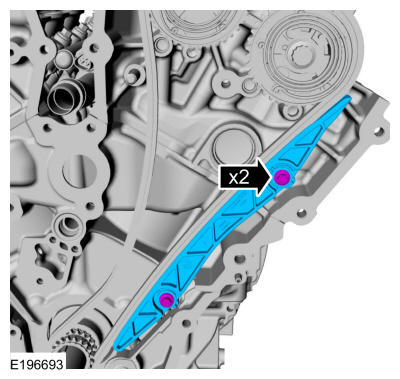

115. Remove the bolts and the LH timing chain guide.

     Courtesy of FORD MOTOR COMPANY

116. Remove the LH timing chain.

     Courtesy of FORD MOTOR COMPANY

117. Remove the timing chain sprocket.

     Courtesy of FORD MOTOR COMPANY

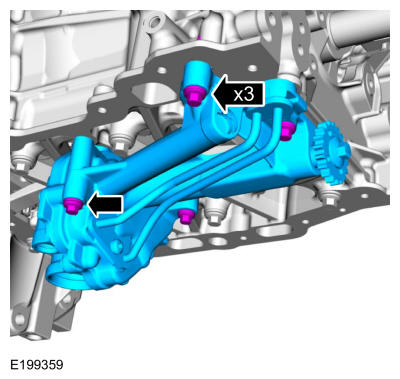

118. Remove the bolts and the oil pump.

     Courtesy of FORD MOTOR COMPANY

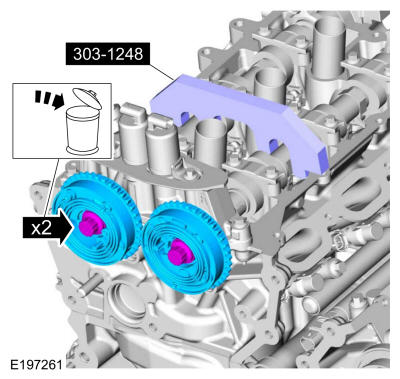

119. 1. Install Special Service Tool: 303-1248 Camshaft holding tools.
     2. Remove and discard the VCT unit bolts.
     3. Remove the VCT units.

     Courtesy of FORD MOTOR COMPANY

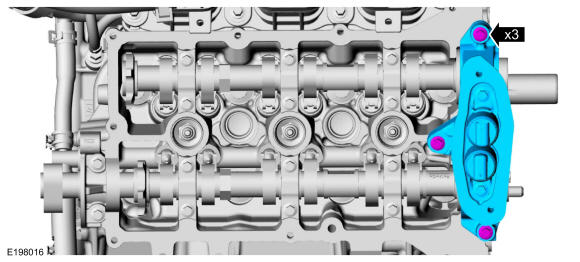

120. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

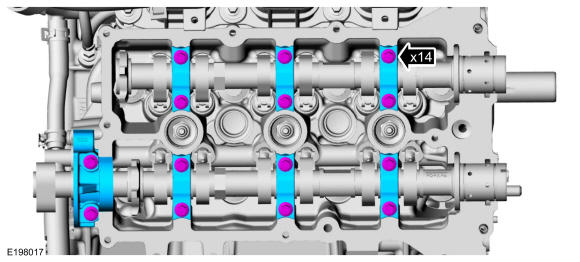

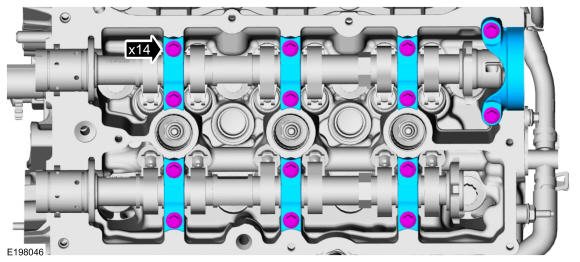

121. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

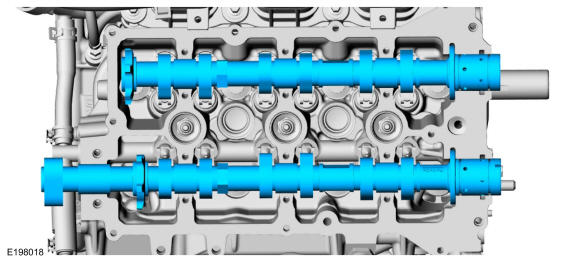

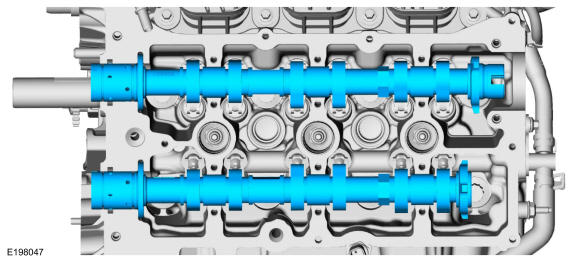

122. Remove the intake and exhaust camshafts.

     Courtesy of FORD MOTOR COMPANY

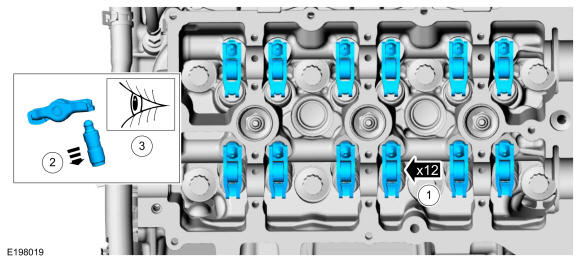

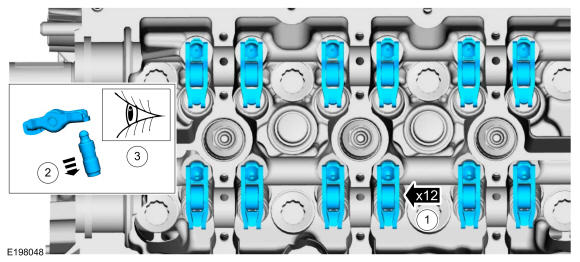

123. 1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
     2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
     3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

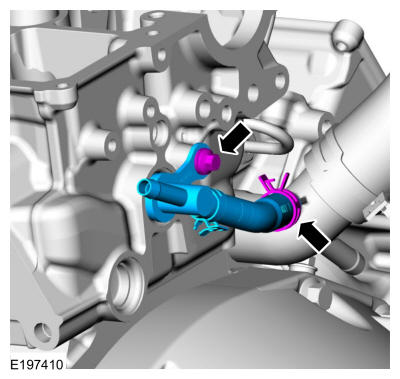

124. 1. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
     2. NOTE: Do not pry the cylinder head to coolant outlet connector behind the bracket. If necessary, use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

        Remove the bolt and the cylinder head to coolant outlet connector hose assembly.

     Courtesy of FORD MOTOR COMPANY

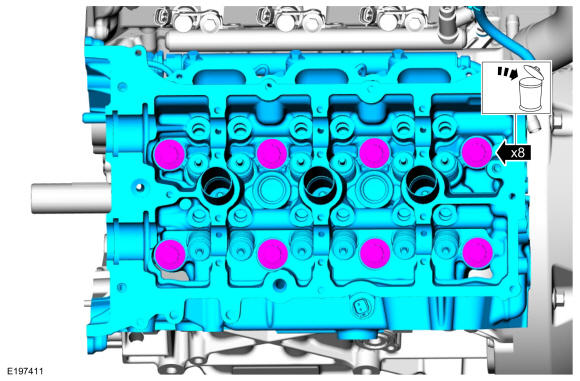

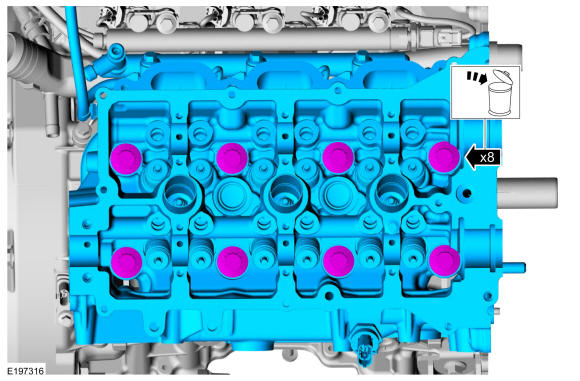

125. • Remove and discard the cylinder head bolts.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

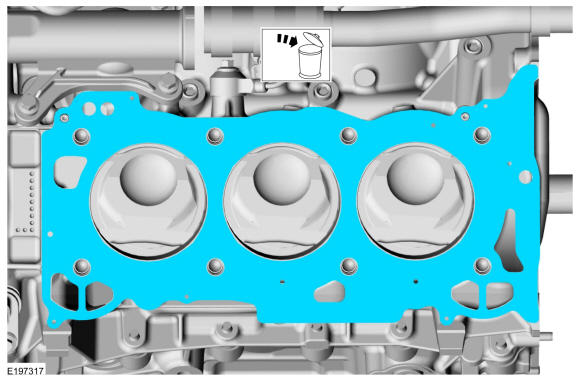

126. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

127. • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.
     • Refer to: Cylinder Head Distortion .
     • Refer to: Cylinder Block Distortion .

     Courtesy of FORD MOTOR COMPANY

128. 1. Install Special Service Tool: 303-1248 Camshaft holding tools.
     2. Remove and discard the VCT unit bolts.
     3. Remove the VCT units.

     Courtesy of FORD MOTOR COMPANY

129. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

130. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

131. Remove the intake and exhaust camshafts.

     Courtesy of FORD MOTOR COMPANY

132. 1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
     2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
     3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

133. 1. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
     2. NOTE: Do not pry the cylinder head to coolant outlet connector behind the bracket. If necessary, use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

        Remove the bolt and the cylinder head to coolant outlet connector hose assembly.

     Courtesy of FORD MOTOR COMPANY

134. • Remove and discard the cylinder head bolts.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

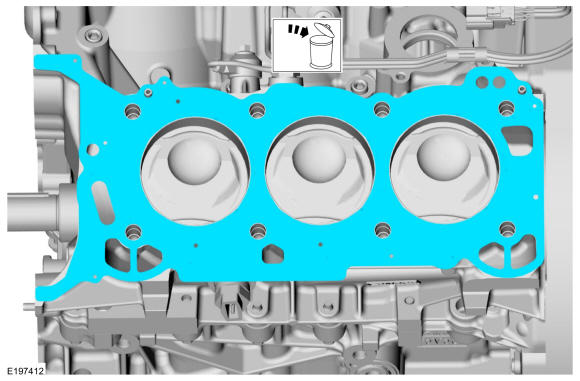

135. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

136. • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.
     • Refer to: Cylinder Head Distortion .
     • Refer to: Cylinder Block Distortion .

     Courtesy of FORD MOTOR COMPANY

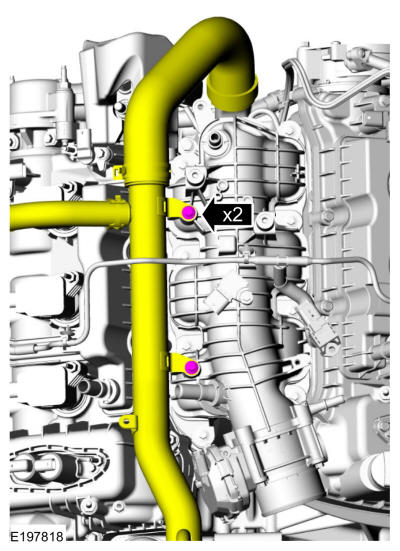

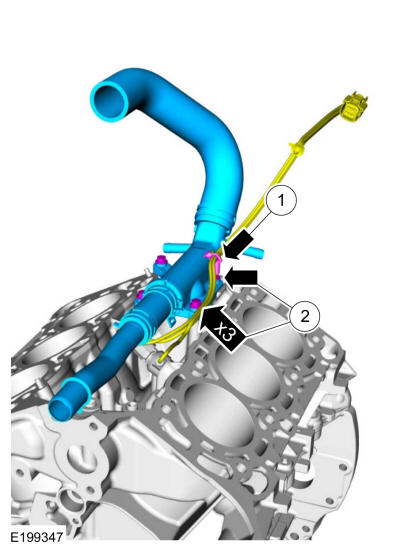

137. 1. Detach the wiring harness retainer from the stud bolt
     2. Remove the stud bolt, the nuts and the coolant outlet connector pipe.

     Courtesy of FORD MOTOR COMPANY

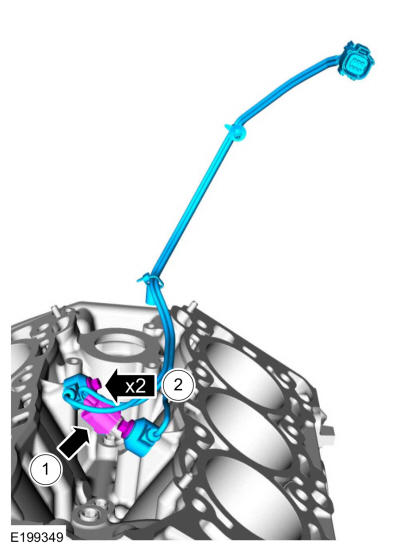

138. 1. Disconnect the ECT sensor electrical connector.
     2. Remove the bolts and the KS assembly.

     Courtesy of FORD MOTOR COMPANY

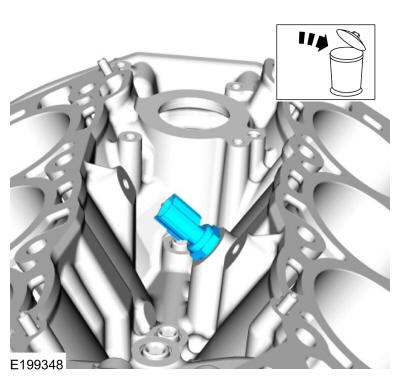

139. NOTE: Do not reuse the ECT sensor, install a new sensor.

     Remove and discard the ECT sensor.

     Courtesy of FORD MOTOR COMPANY

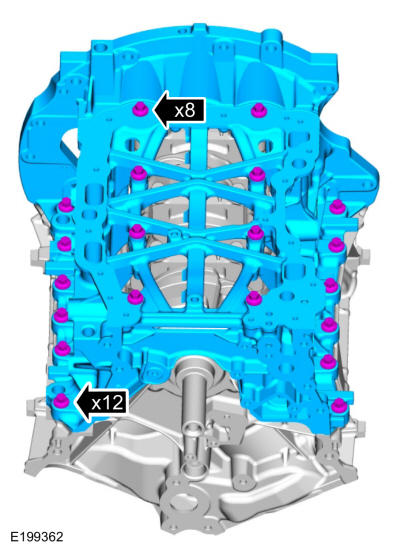

140. Remove the engine block skirt stiffener bolts.

     Courtesy of FORD MOTOR COMPANY

141. Using a suitable pry bar at the 4 pry pad locations, release the engine block skirt stiffener-to-engine block seal.

     Courtesy of FORD MOTOR COMPANY

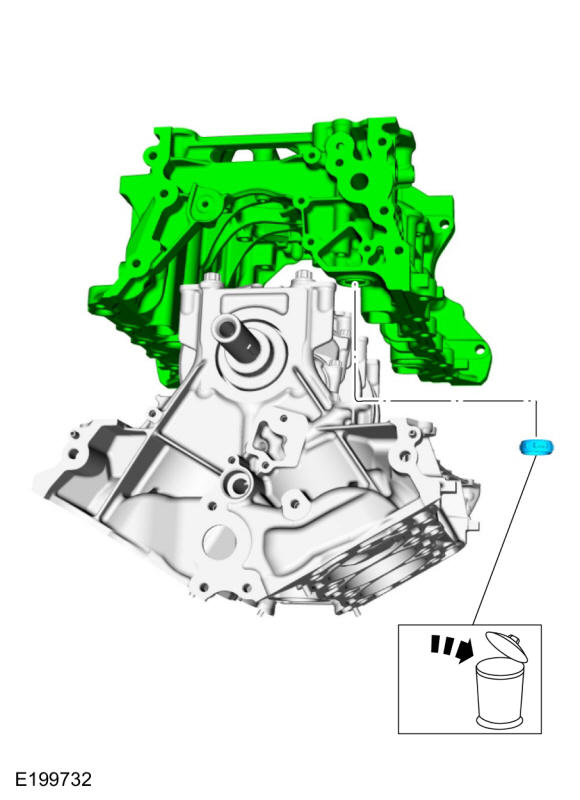

142. • Remove the engine block skirt stiffener.
     • Remove and discard the oil seal.

     Courtesy of FORD MOTOR COMPANY

143. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

     Clean and inspect the mating surfaces. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

     Material

     : Motorcraft ® Silicone Gasket Remover / ZC-30-A

     Material

     : Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

     Material

     : Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

     Courtesy of FORD MOTOR COMPANY

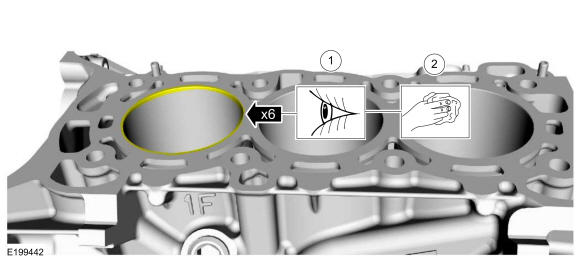

144. • Before removing the pistons, inspect the top of the cylinder bores.
     • If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad.

     Courtesy of FORD MOTOR COMPANY

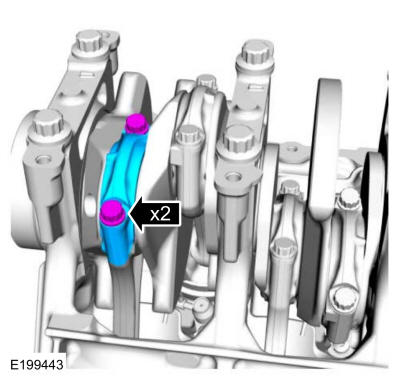

145. Remove the bolts and the connecting rod cap.

     Courtesy of FORD MOTOR COMPANY

146. NOTE: Position the cylinder bank for the piston serviced in a vertical position. Do not scratch the cylinder walls or crankshaft journals with the connecting rod or engine damage may occur.

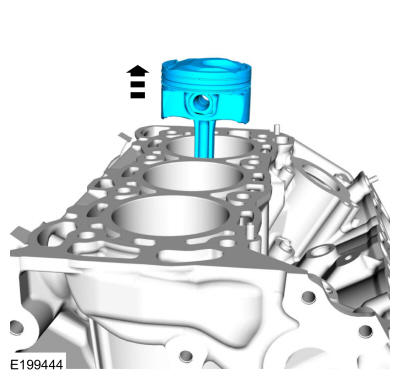

     • Remove the piston through the top of the cylinder block
     • Repeat the steps for each of the remaining pistons.

     Courtesy of FORD MOTOR COMPANY

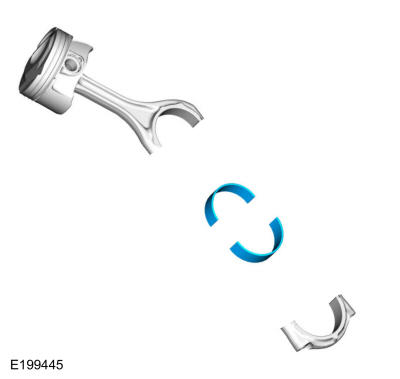

147. • Remove the connecting rod bearings.
     • Disassemble and inspect the pistons. Refer to: Piston . Refer to: Piston Inspection .

     Courtesy of FORD MOTOR COMPANY

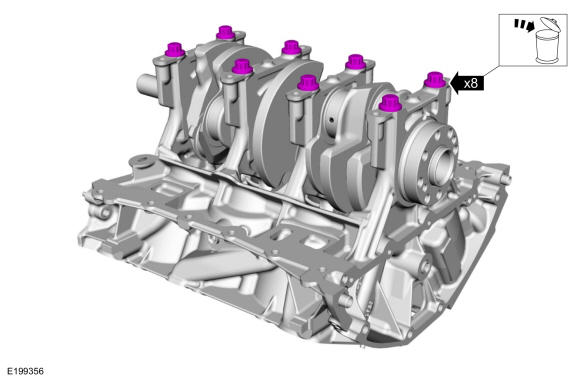

148. Remove and discard the main bearing cap bolts.

     Courtesy of FORD MOTOR COMPANY

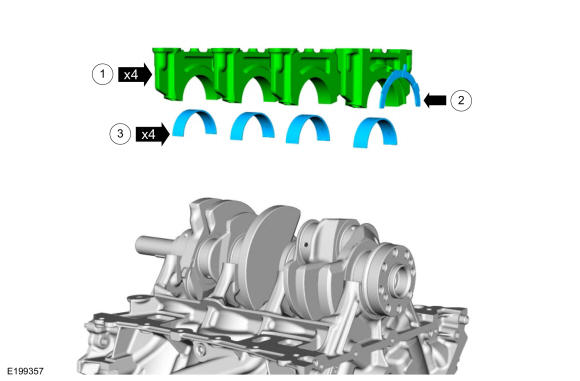

149. 1. Remove the main bearing caps.
     2. Remove the lower thrust washer.
     3. Remove the lower main bearings.

     Courtesy of FORD MOTOR COMPANY

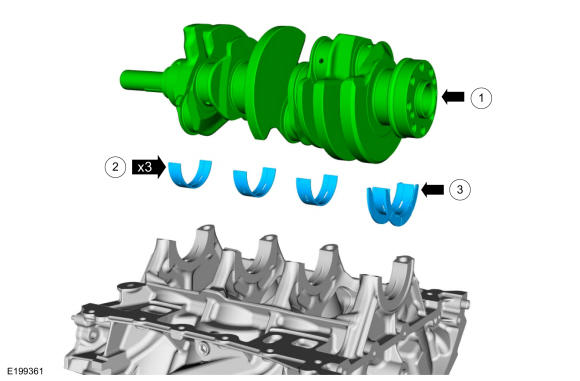

150. 1. Remove the crankshaft.
     2. Remove the lower main bearings.
     3. Remove the lower thrust bearing.

     Courtesy of FORD MOTOR COMPANY

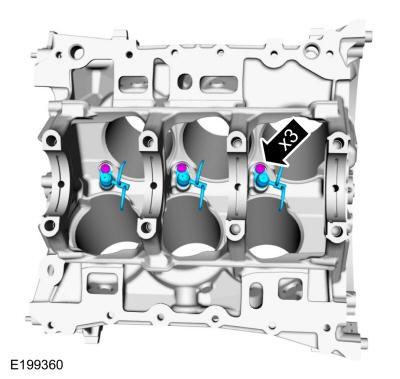

151. Remove the bolts and the piston cooling jets from the cylinder block.

Courtesy of FORD MOTOR COMPANY
