Quick Release Coupling

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 1
  1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

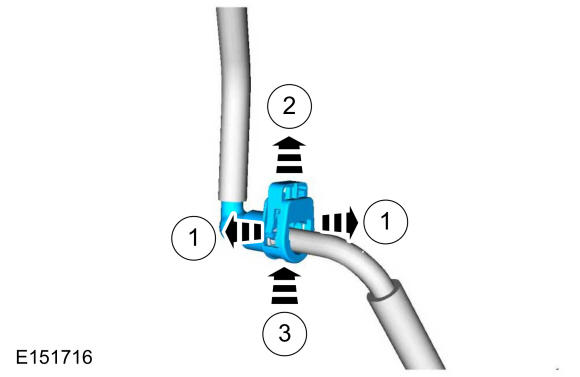

  3. GFD178073Courtesy of FORD MOTOR COMPANY
  4. GFD178074Courtesy of FORD MOTOR COMPANY

Connect

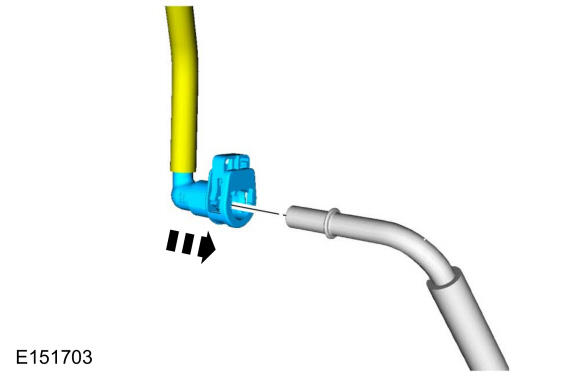

  1. Push the quick release coupling onto the tube.
    GFD178075Courtesy of FORD MOTOR COMPANY

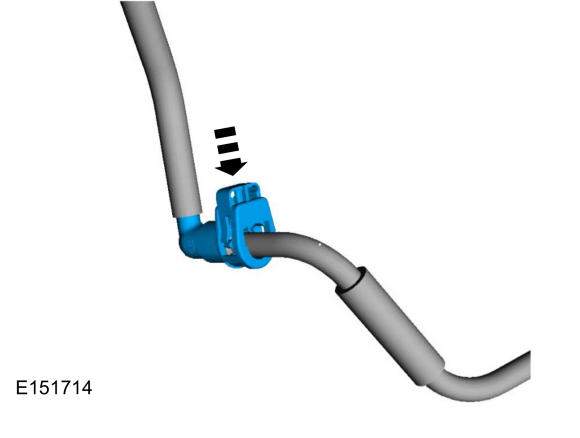

  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick connect coupling body until flush and the tabs are locked in place.

    GFD178076Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 2
  1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

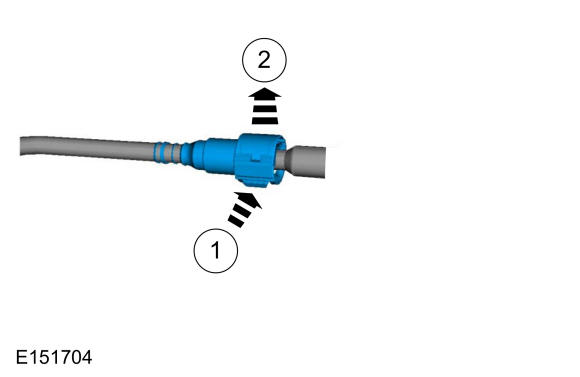

  3. GFD178077Courtesy of FORD MOTOR COMPANY

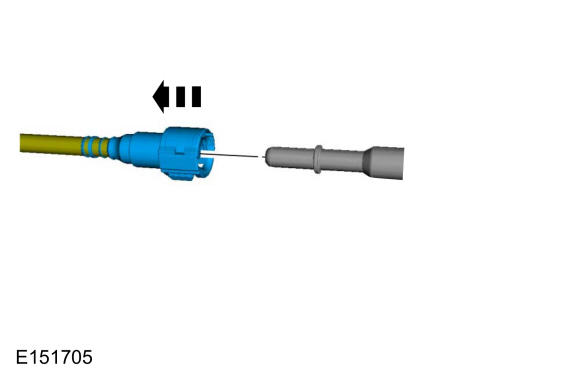

  4. GFD178078Courtesy of FORD MOTOR COMPANY

    5. Connect

  1. GFD178079Courtesy of FORD MOTOR COMPANY

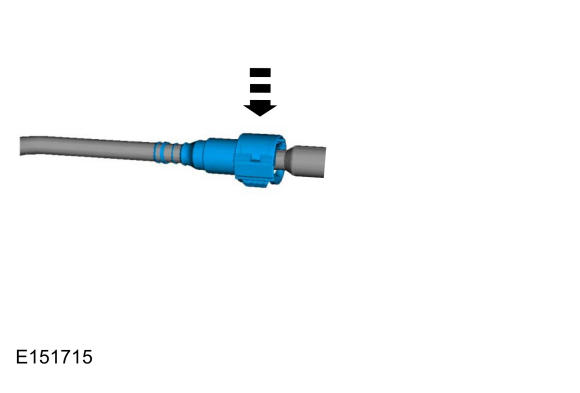

  2. GFD178080Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 3
  1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

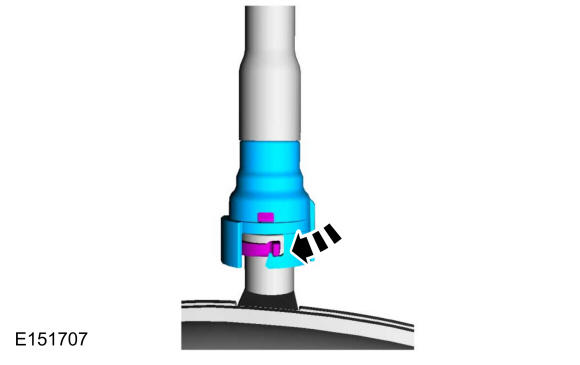

  3. GFD178081Courtesy of FORD MOTOR COMPANY

Connect

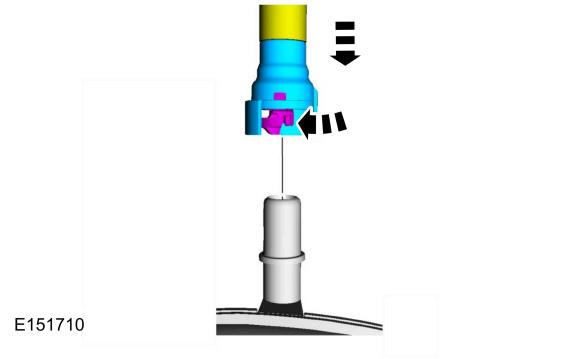

  1. GFD178082Courtesy of FORD MOTOR COMPANY

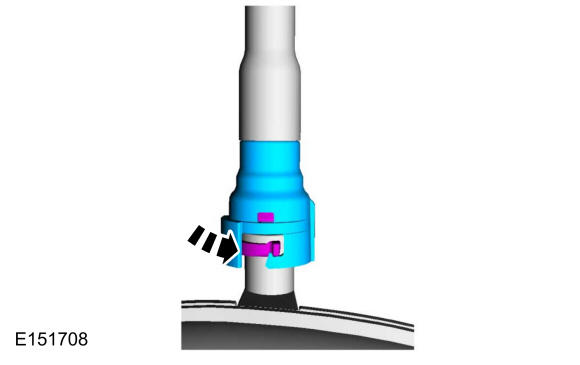

  2. GFD178083Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 4
  1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

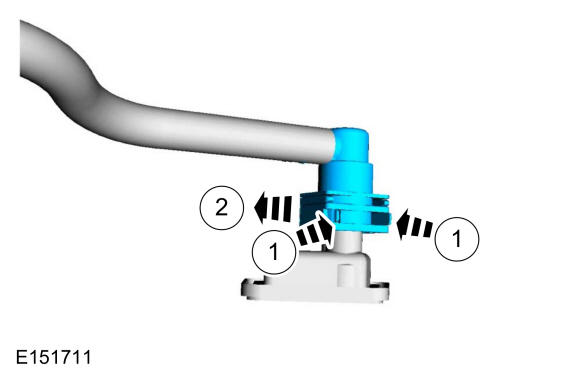

  3. GFD178084Courtesy of FORD MOTOR COMPANY

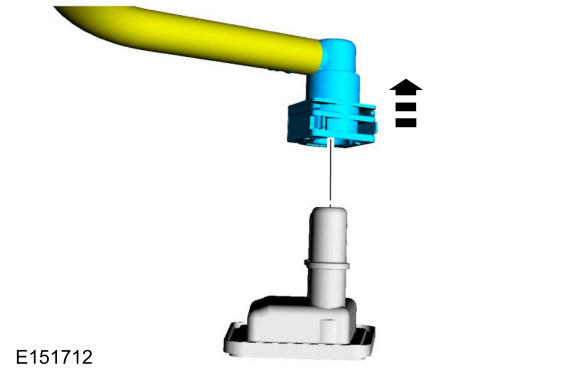

  4. GFD178085Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD178086Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 6
  1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

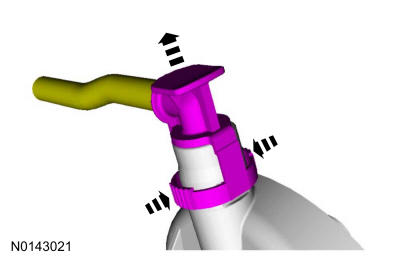

  3. Press the tabs of the rear retainer clip and pull it to the outward position.
    GFD178087Courtesy of FORD MOTOR COMPANY

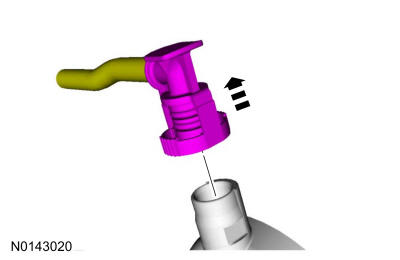

  4. GFD178088Courtesy of FORD MOTOR COMPANY

Connect

  1. Pull on the quick connect coupling to make sure it is securely fastened.
    GFD178089Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 7
  1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

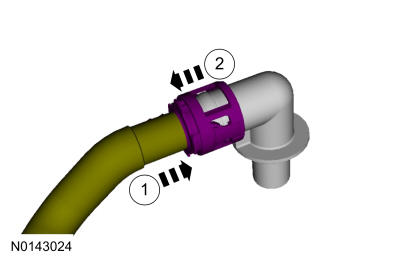

  3. GFD178090Courtesy of FORD MOTOR COMPANY
  4. GFD178091Courtesy of FORD MOTOR COMPANY

Connect

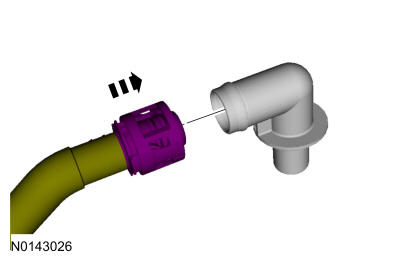

  1. Pull on the quick connect coupling to make sure it is securely fastened.
    GFD178092Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 8
  1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

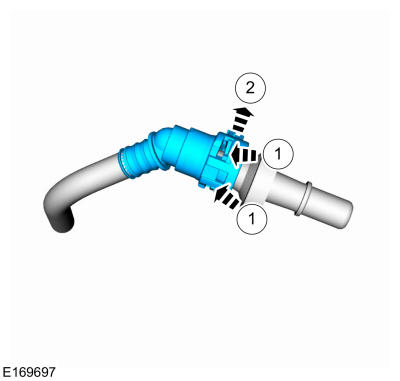

  3. GFD178093Courtesy of FORD MOTOR COMPANY

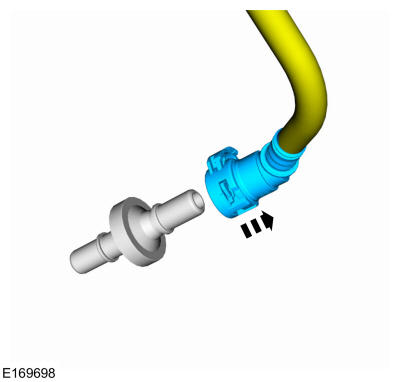

  4. GFD178094Courtesy of FORD MOTOR COMPANY

Connect

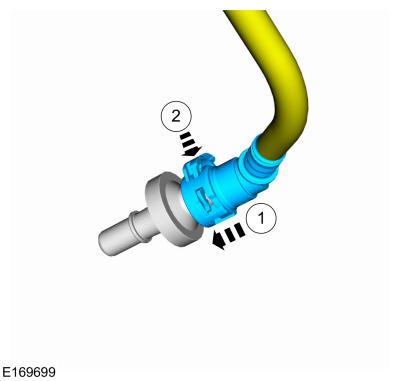

  1. GFD178095Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 9
  1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

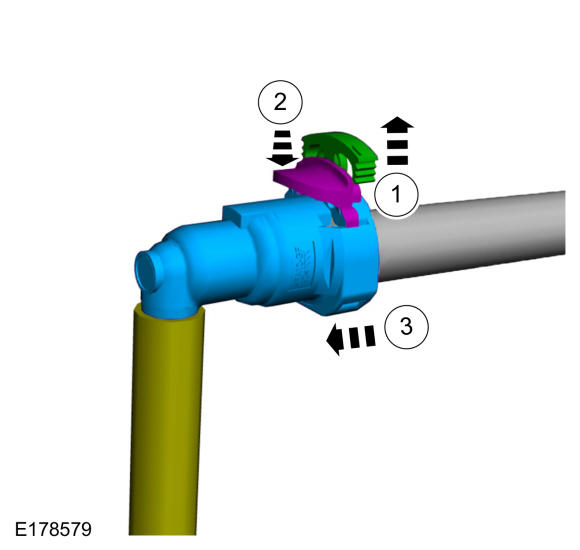

    1. Release the secondary locking tab.
    2. Depress the primary locking tab.
    3. Separate the quick release coupling from the tube.
GFD178096Courtesy of FORD MOTOR COMPANY

Connect

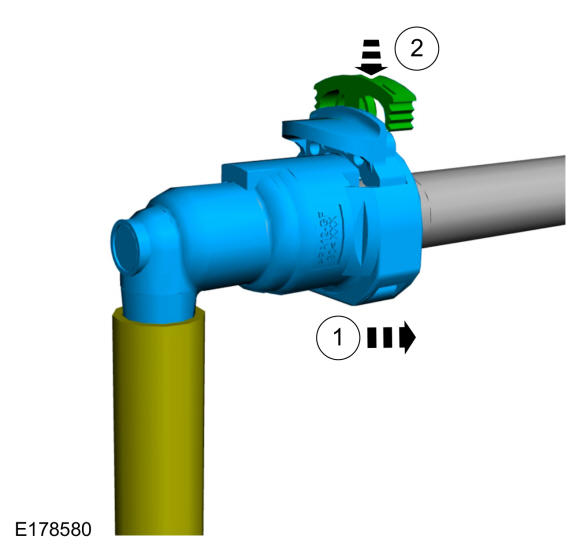

    1. Push the quick release coupling onto the tube.
    2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Lock the secondary locking tab.

    GFD178097Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 10
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

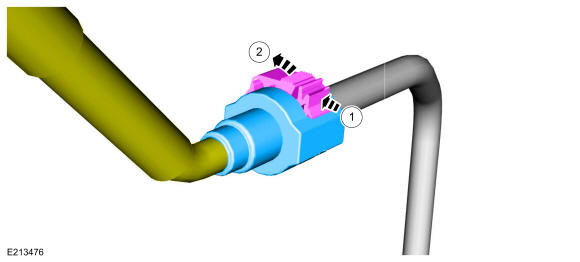

    1. Push on the locking tab.
    2. Lift the clip.
    GFD178098Courtesy of FORD MOTOR COMPANY

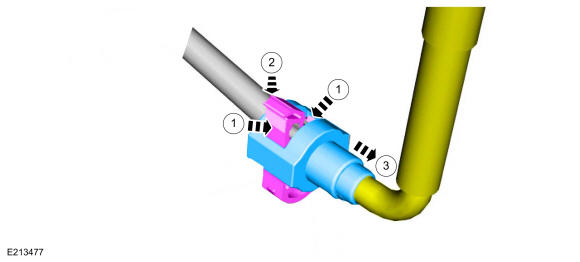

    1. Depress the tabs inward.
    2. Push the clip downward.
    3. Separate the quick release coupling from the fuel line.
GFD178099Courtesy of FORD MOTOR COMPANY

Connect

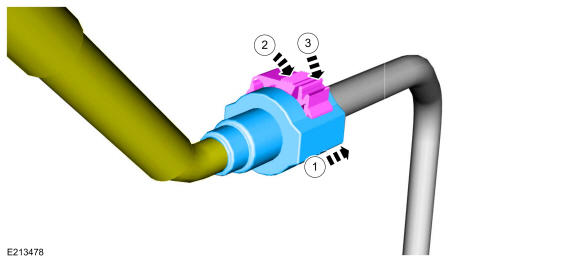

    1. Push the quick release coupling onto the tube.
    2. Push the clip down into the quick release coupling.
    3. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD178100Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
