Steering Wheel Switch: Notes

WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

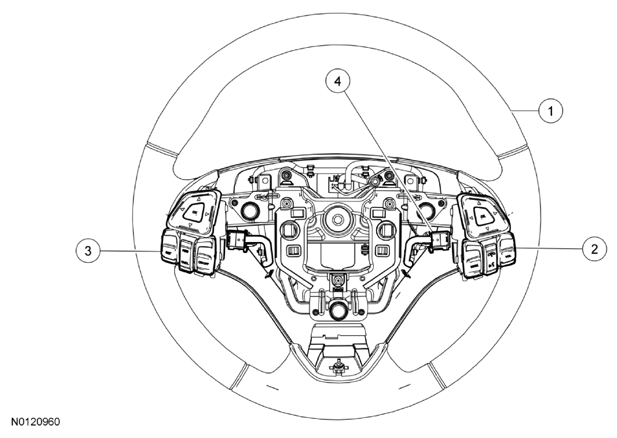

Fig 1: Identifying Steering Wheel Switch Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3600	Steering wheel
2	9C888	RH steering wheel switch
3	9C888	LH steering wheel switch
4	-	Electrical connector (part of 14672)
