Steering Column Multifunction Switch: Notes

WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Steering wheel removed for clarity.

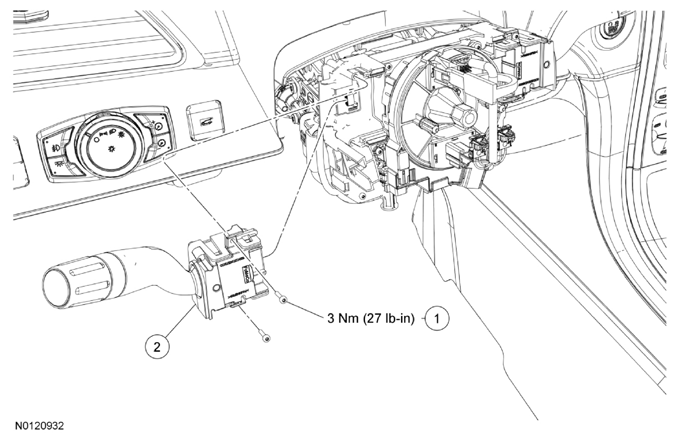

Fig 1: Steering Column Multifunction Switch Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Multifunction switch screws (2 required) (part of 3F791)
2	13341	Multifunction switch
