Removal And Installation: Glass-Panel: Installation

  1. Install the glass panel.
    1. Position the glass panel.
    2. Install the nuts.

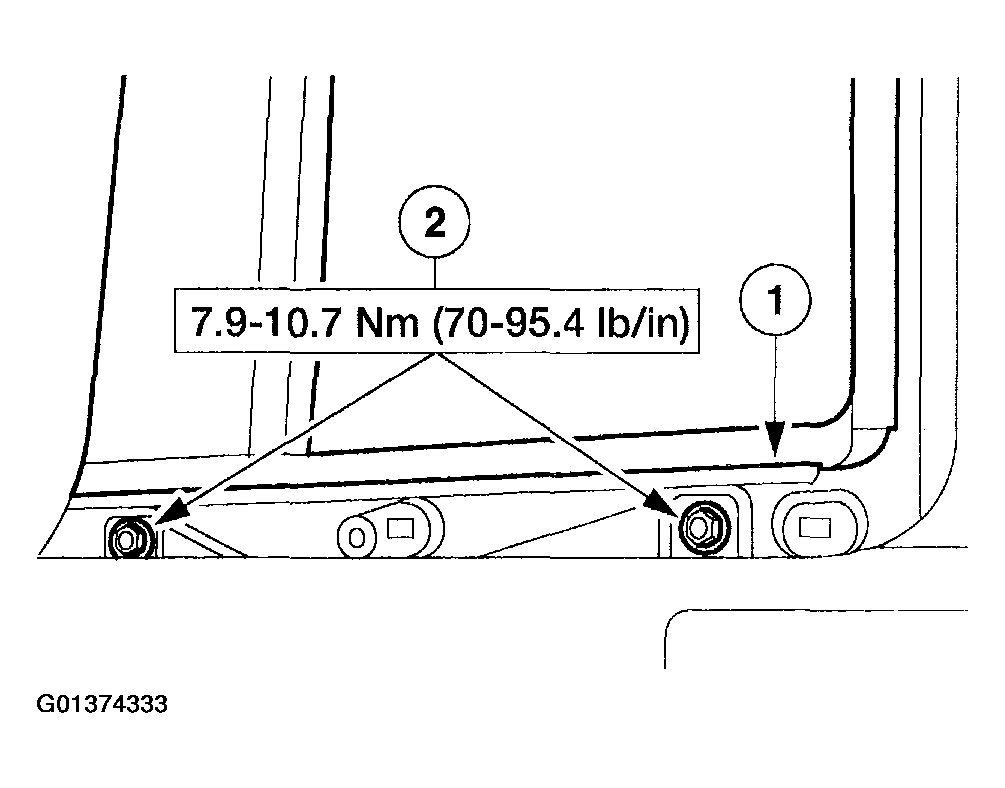

    Fig 1: Installing Glass Panel
    G01374333Courtesy of FORD MOTOR CO.
  2. Adjust the glass panel; refer to HEIGHT ADJUSTMENT  and HORIZONTAL ADJUSTMENT .
