Height Adjustment

  1. Verify that the sliding roof panel height is within specification.

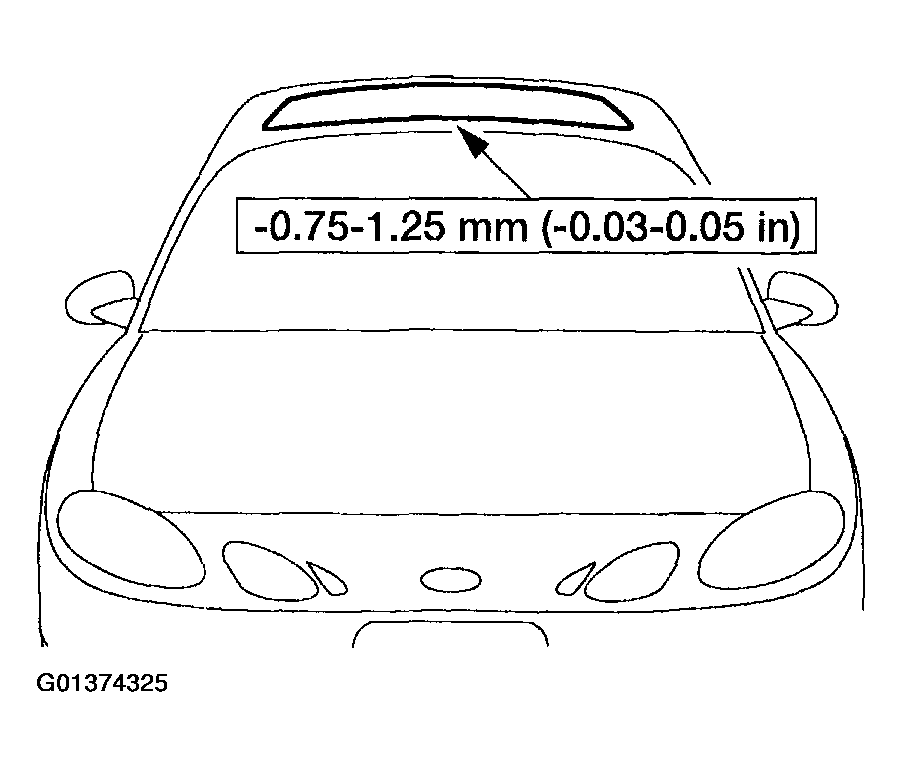

    Fig 1: Identifying Sliding Roof Panel Height
    G01374325Courtesy of FORD MOTOR CO.
  2. Remove the lower panel cover.

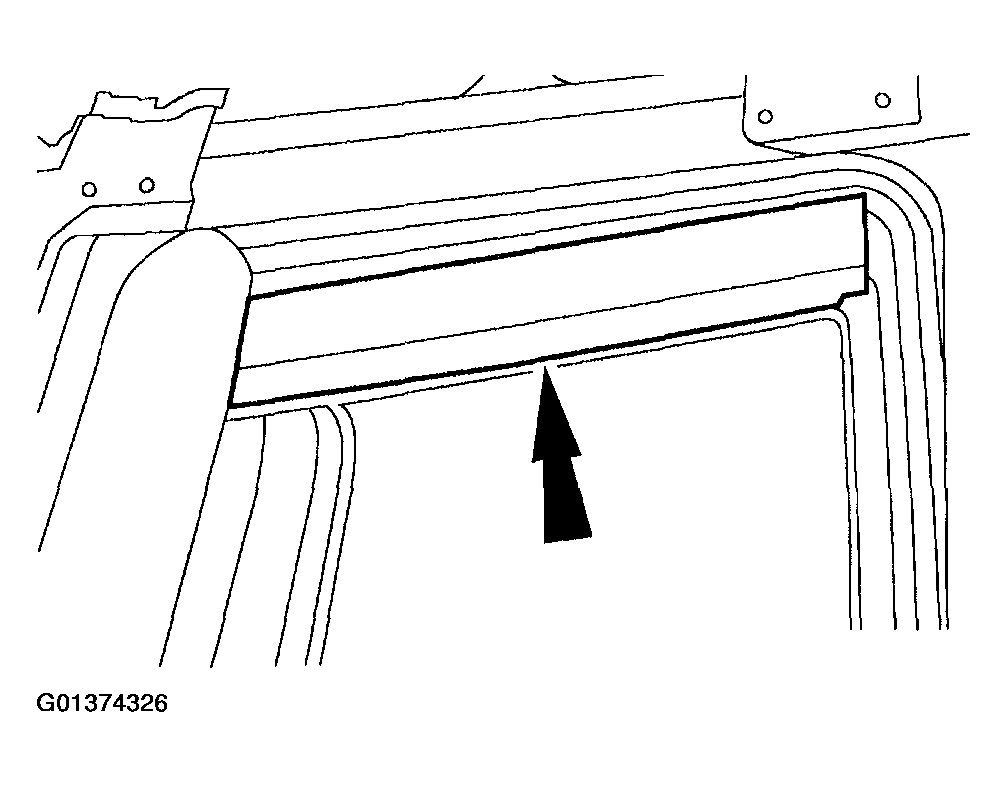

    Fig 2: Removing Lower Panel Cover
    G01374326Courtesy of FORD MOTOR CO.
  3. Loosen the lower panel installation screw and adjust the height to specification.

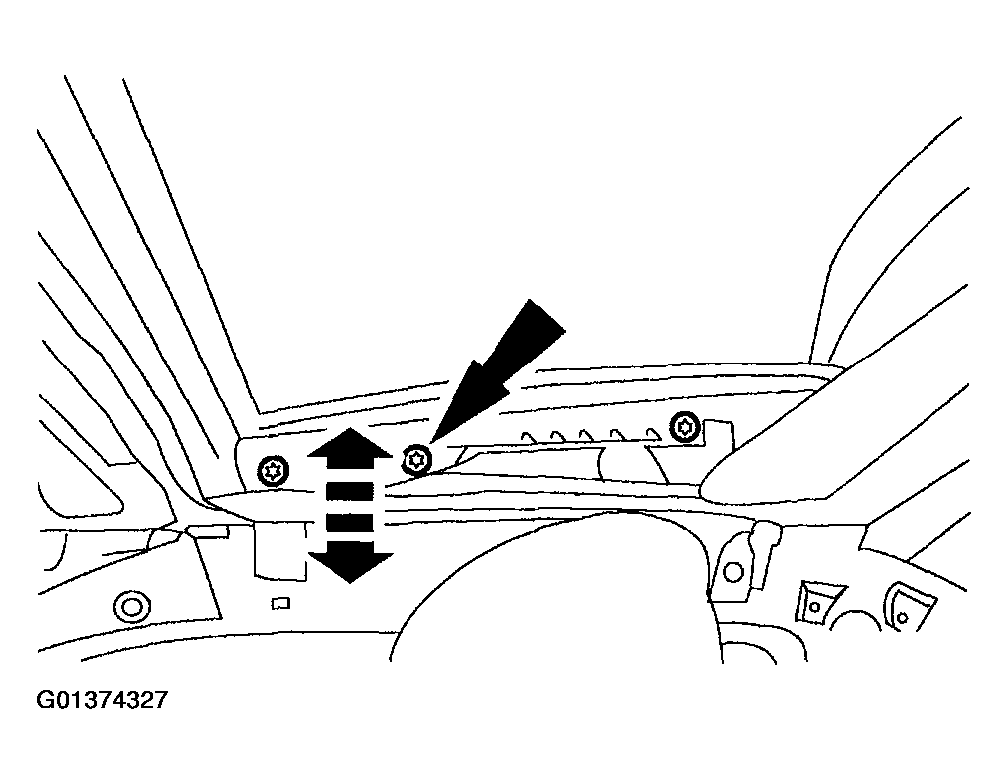

    Fig 3: Loosening Lower Panel Installation Screw
    G01374327Courtesy of FORD MOTOR CO.
