Removal And Installation: Cable/Bracket: Installation

    NOTE: If equipped with air suspension, reactivate the system by turning on the air suspension switch.
  1. Follow the removal procedure in reverse order.
    • Move manual lever into the overdrive (O/D) range.
    • Adjust the transmission shift cable; refer to CABLE/BRACKET ADJUSTMENT .

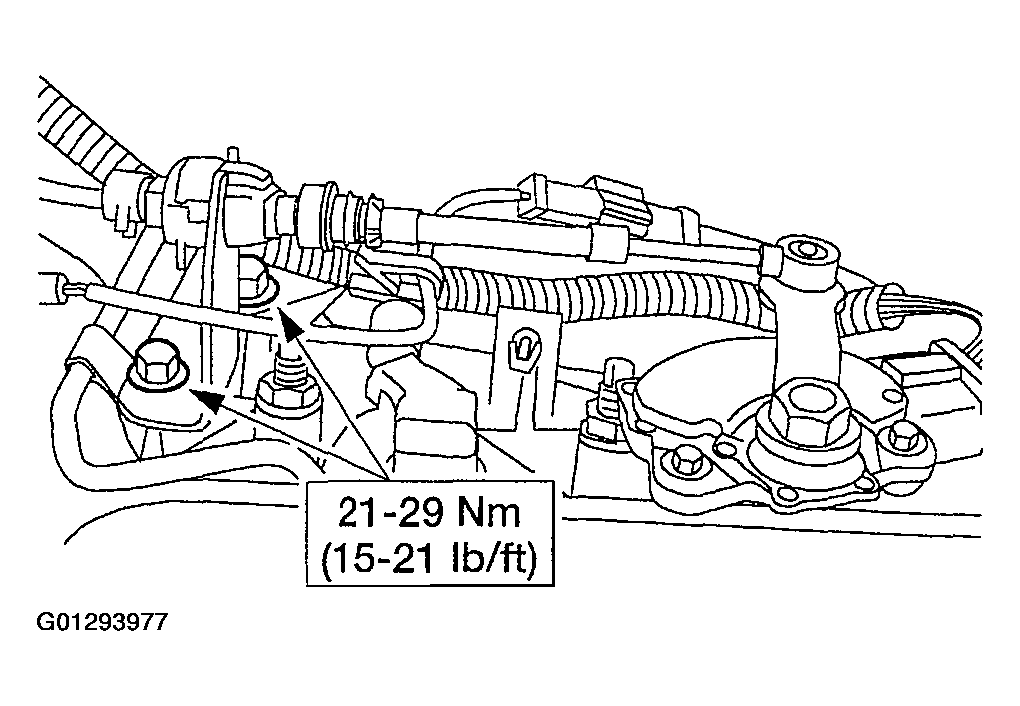

      Fig 1: Installing Transmission Shift Cable Bracket To Automatic Transmission
      G01293977Courtesy of FORD MOTOR CO.
