Cable/Bracket Adjustment

  1. Place the gearshift lever (7210) in the (D) position and hang a 1.4 kg (3 lb) weight on the shift control selector lever.
    • Move the gearshift lever to the first gear position, then move back two detents to the (D) position.
    • Hang the 1.4 kg (3 lb) weight on the gearshift lever.
  2. Raise and support the vehicle.
  3. Disconnect the transmission shift cable from the manual control lever (7A256).

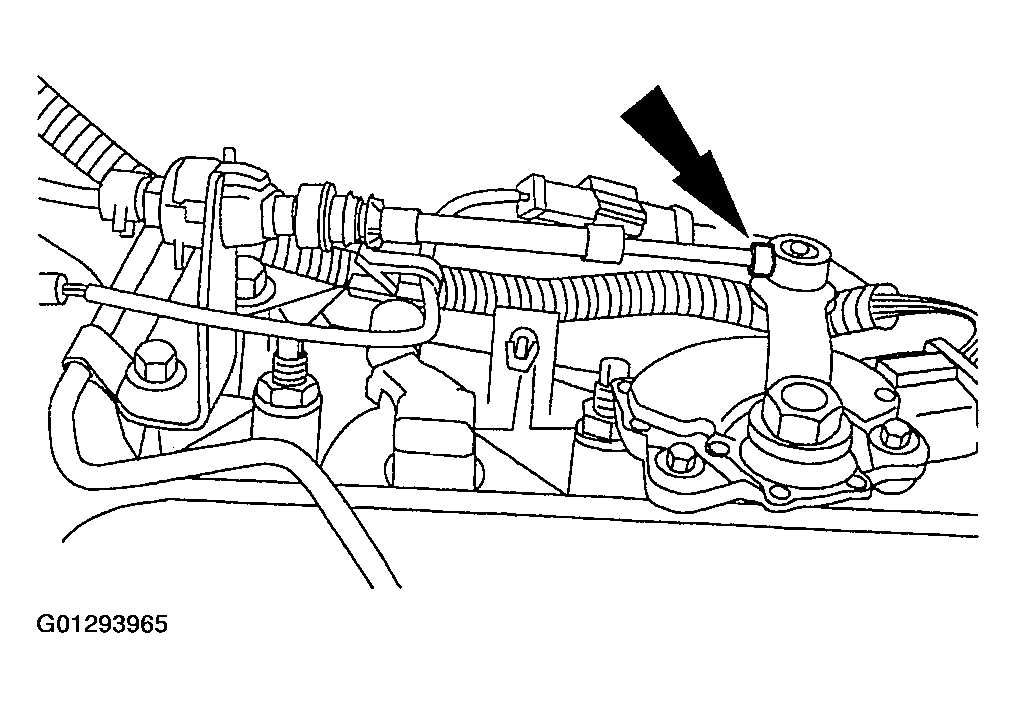

    Fig 1: Disconnecting Transmission Shift Cable From Manual Control Lever
    G01293965Courtesy of FORD MOTOR CO.
  4. Pull out the transmission shift cable adjustment lock on the shift cable body.
    Fig 2: Pulling Out Transmission Shift Cable Adjustment Lock On Shift Cable Body
    G01293966Courtesy of FORD MOTOR CO.
  5. Place the manual control lever in the (D) position.
    1. Rotate the manual control lever fully counterclockwise.
    2. Rotate the manual control lever clockwise to the (D) position. (2 detents).

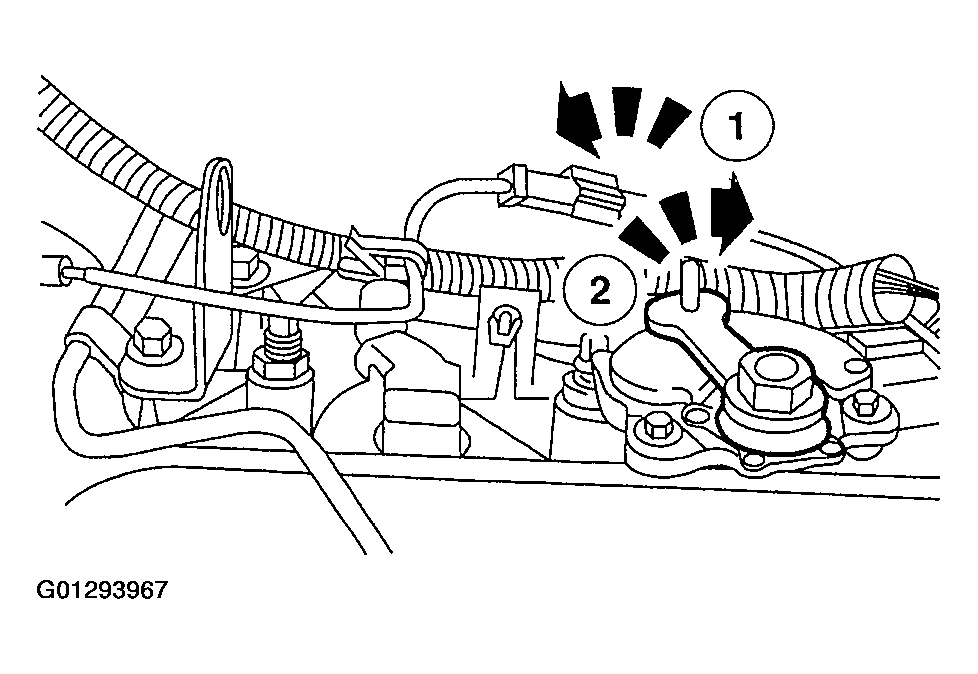

      Fig 3: Placing Manual Control Lever In (D) Position
      G01293967Courtesy of FORD MOTOR CO.
  6. Connect the transmission shift cable to the manual control lever.

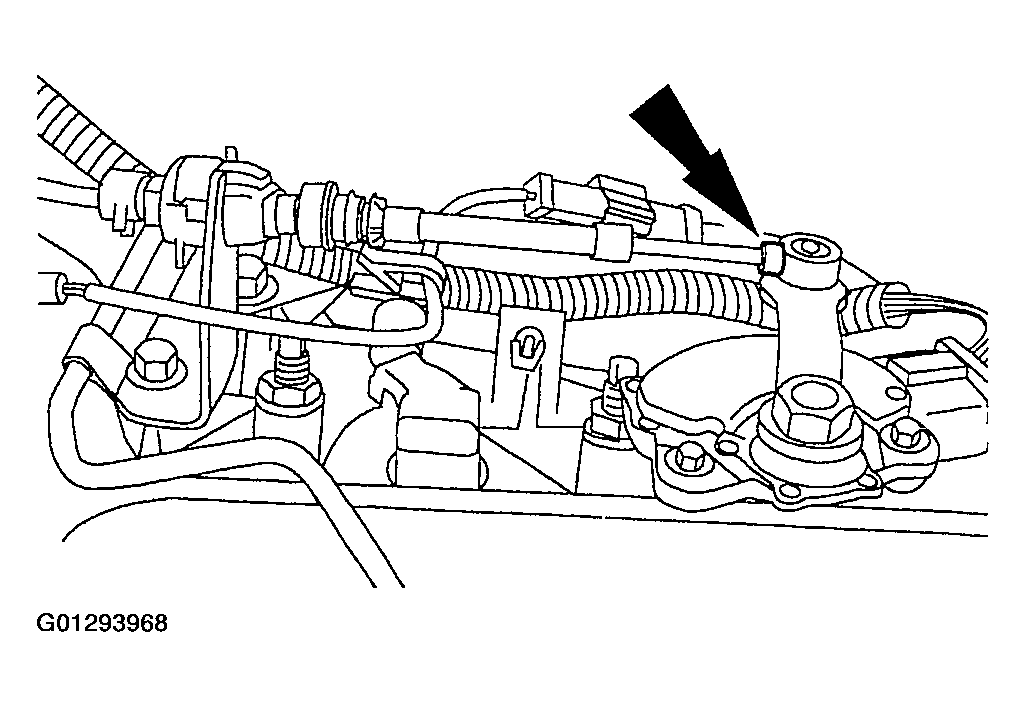

    Fig 4: Connecting Transmission Shift Cable To Manual Control Lever
    G01293968Courtesy of FORD MOTOR CO.
  7. Push in the transmission shift cable adjustment lock on the shift cable body.

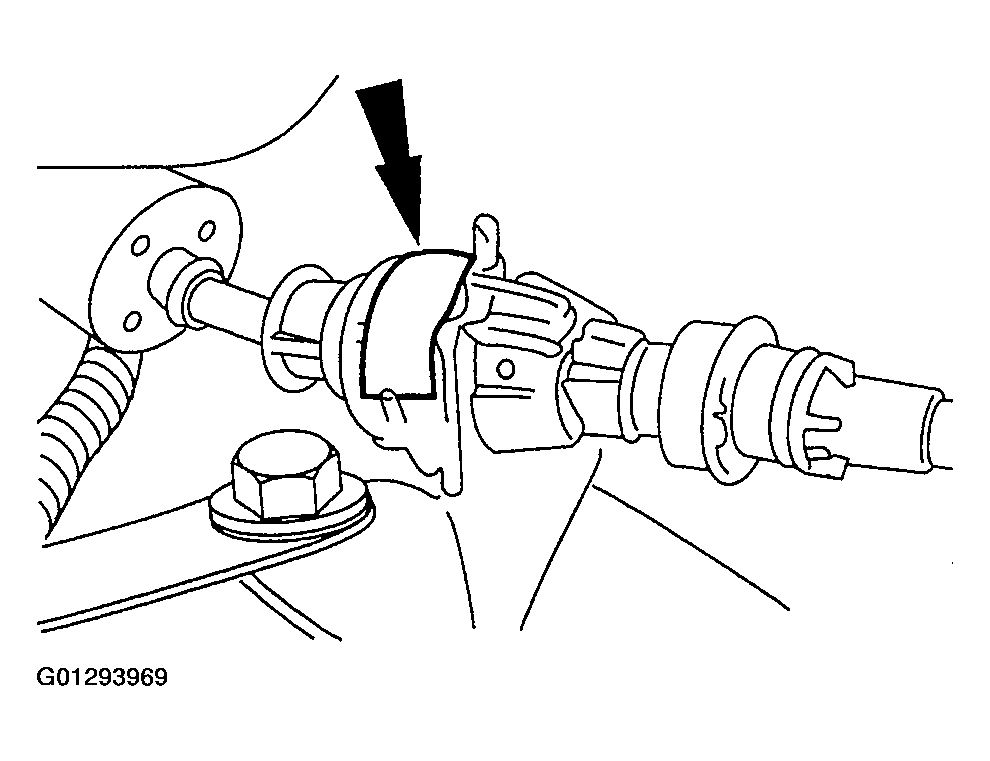

    Fig 5: Pushing In Transmission Shift Cable Adjustment Lock On Shift Cable Body
    G01293969Courtesy of FORD MOTOR CO.
  8. NOTE: If equipped with air suspension, reactivate the system by turning on the air suspension switch.
  9. Lower the vehicle.
  10. Remove the 1.4 kg (3 lb) weight.
  11. CAUTION: To prevent damage, do not adjust the transmission shift cable in any position other than (D).
  12. Verify that the vehicle will start only in P or N and that backup lamps illuminate in R. If not, repeat steps 1 through 7 and perform a digital transmission range sensor alignment. Refer to DIGITAL TRANSMISSION RANGE (TR) SENSOR .
