Transmission Insulator And Retainer: Installation

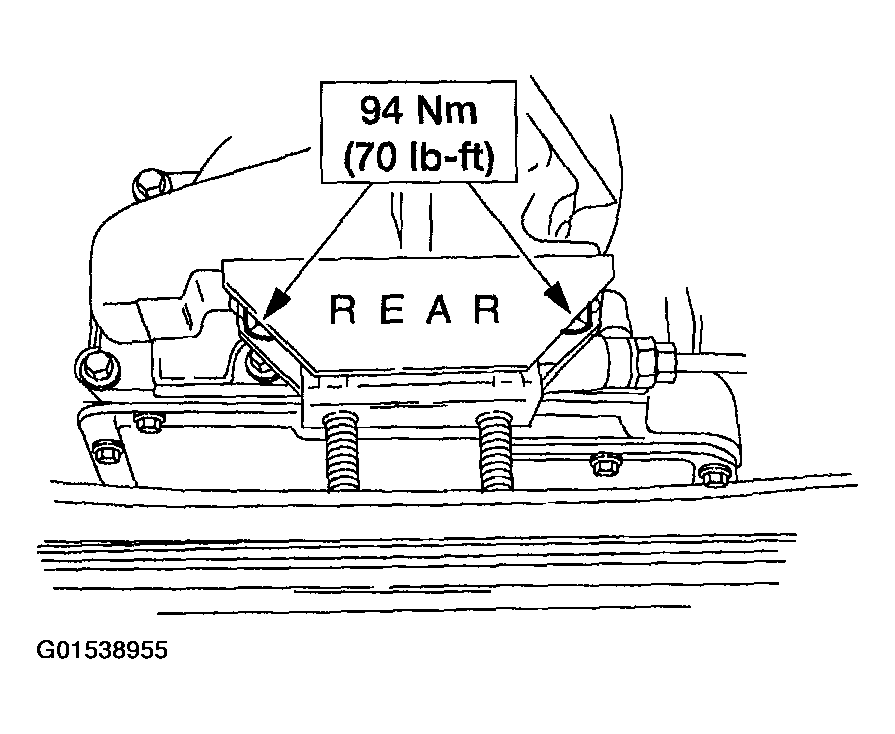

Install the insulator and retainer.

Fig 1: Installing Insulator And Retainer
Courtesy of FORD MOTOR CO.

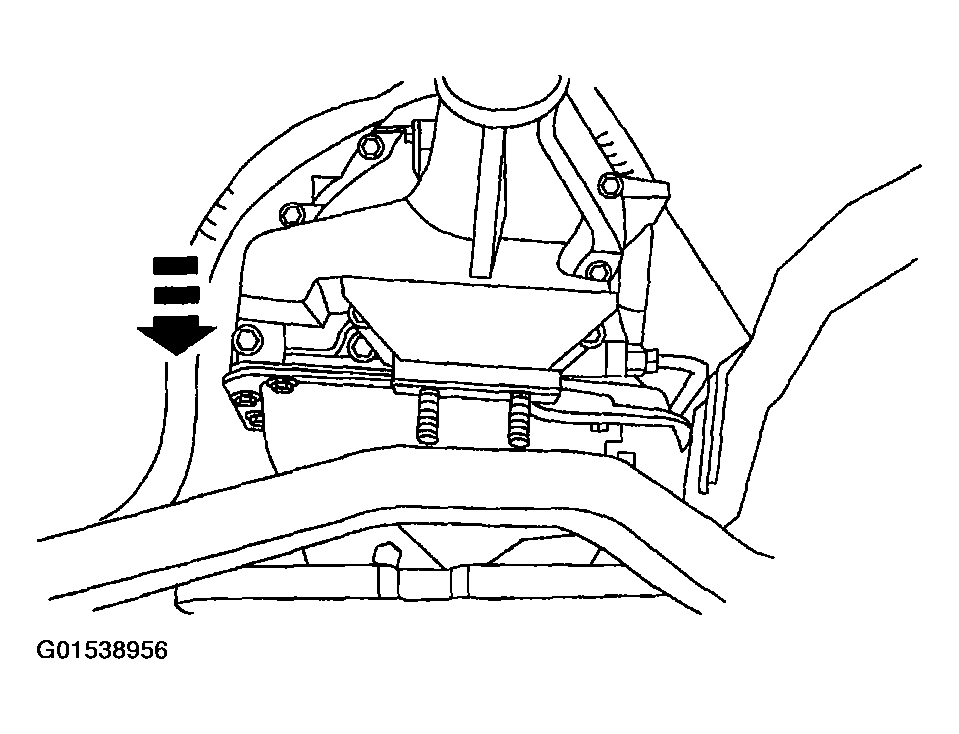

Lower the transmission on to the rear crossmember support.

Fig 2: Placing Tool Transmission On To Rear Crossmember Support
Courtesy of FORD MOTOR CO.

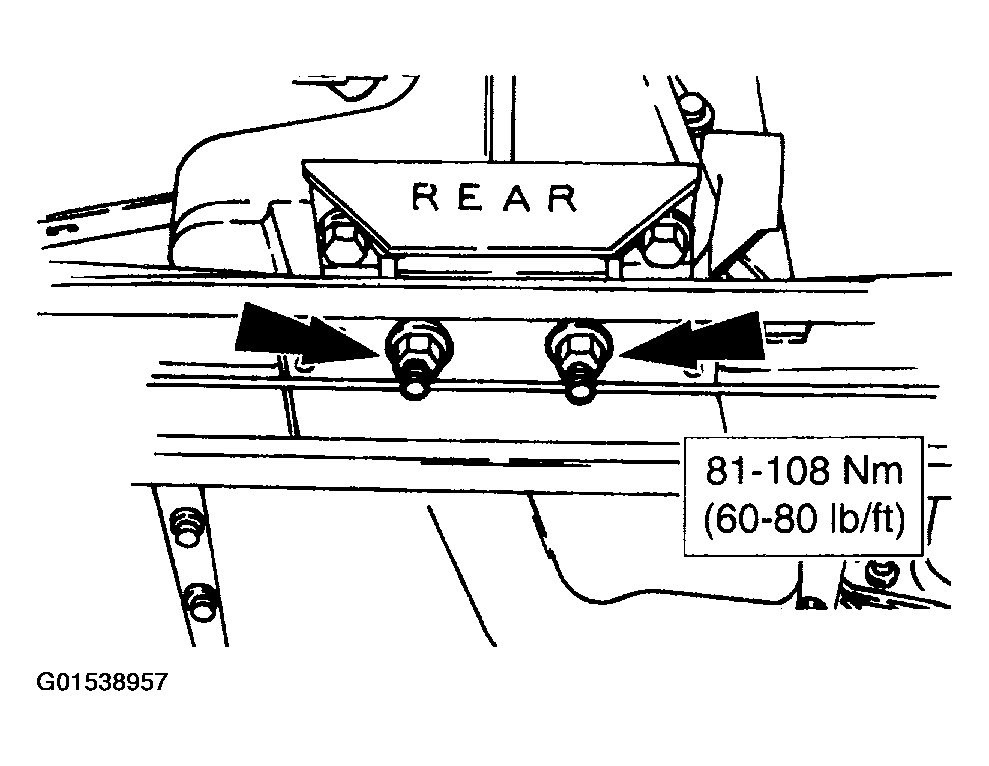

Install the nuts.

Fig 3: Installing Nuts
Courtesy of FORD MOTOR CO.

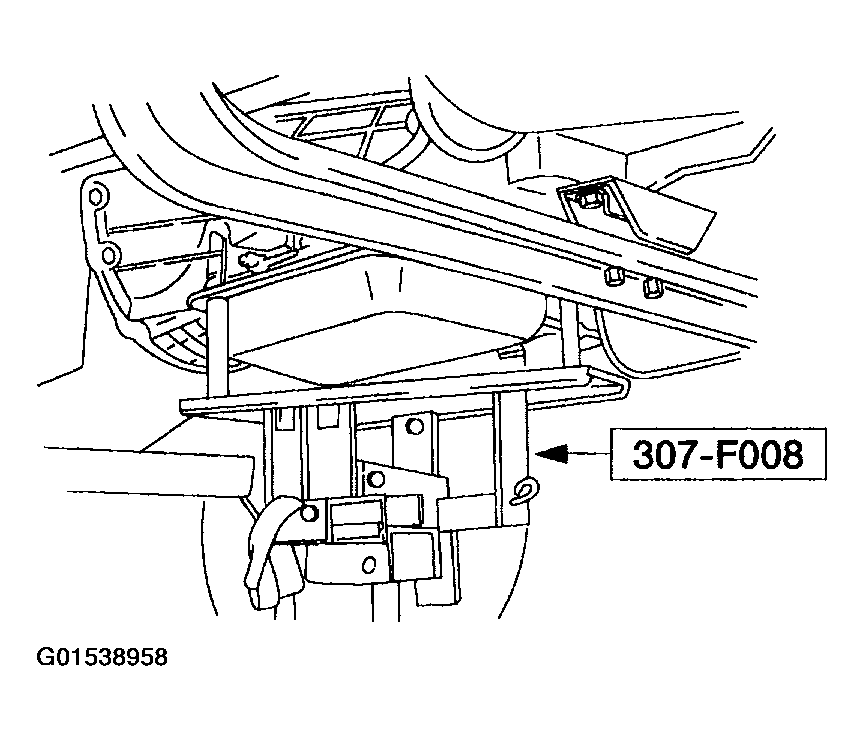

Remove the highlift transmission jack with the special tool from the transmission.

Fig 4: Removing Highlift Transmission Jack With Special Tool From Transmission
Courtesy of FORD MOTOR CO.

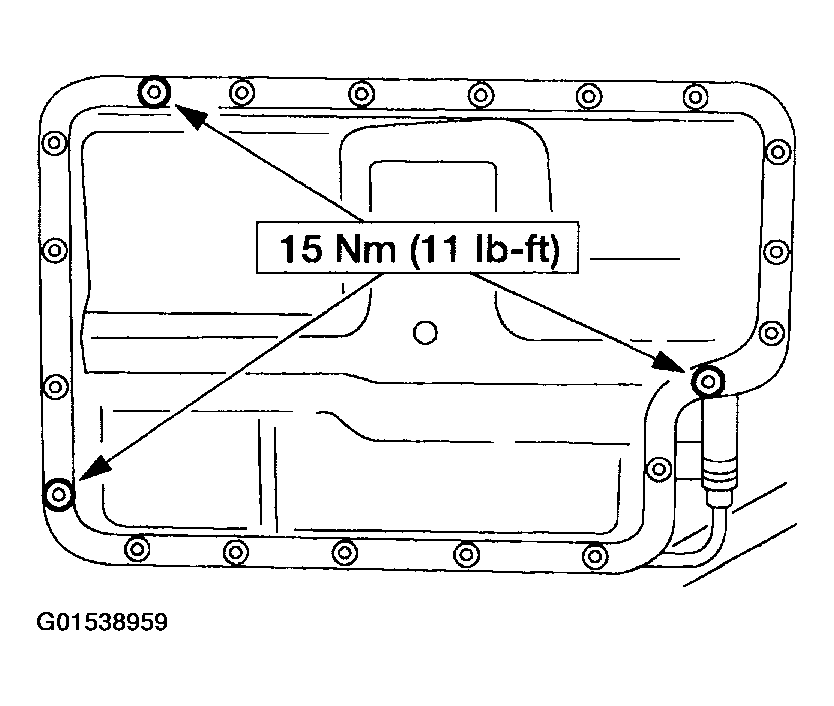

Install the transmission fluid pan-to-case retaining bolts.

Fig 5: Installing Transmission Fluid Pan-To-Case Retaining Bolts
Courtesy of FORD MOTOR CO.
Remove the supports and lower the vehicle.
