Park System: Removal

NOTE: For internal park mechanism service, refer to MANUAL CONTROL LEVER SHAFT AND SEAL .
  1. Remove the extension housing and the extension housing gasket. For additional information, refer to EXTENSION HOUSING SEAL AND BUSHING .
  2. Remove the parking rod guide plate.
    1. Remove the bolts.
    2. Remove the parking rod guide plate.

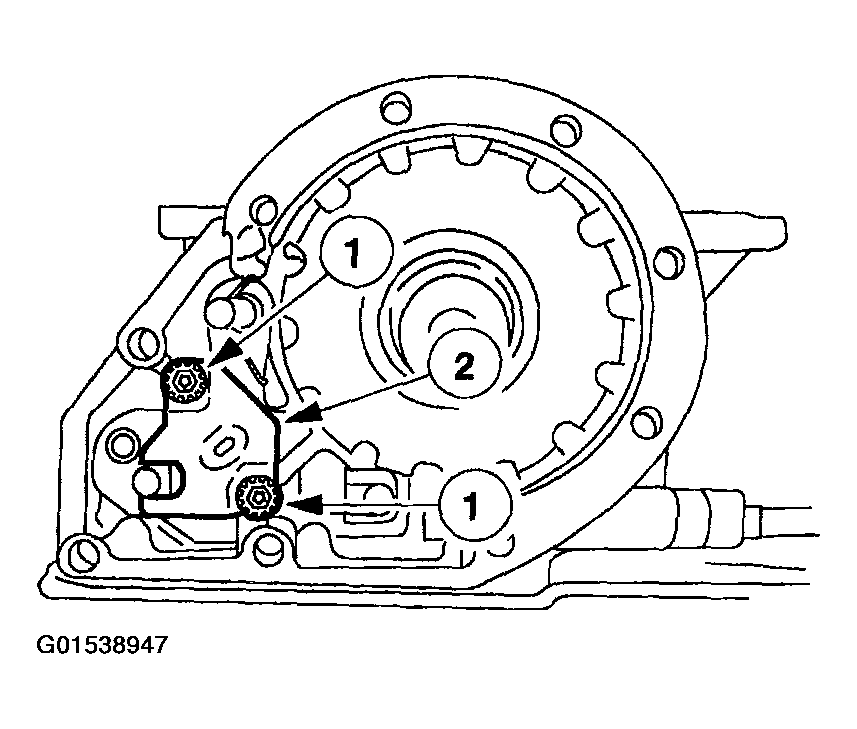

    Fig 1: Removing Parking Rod Guide Plate
    G01538947Courtesy of FORD MOTOR CO.
    3. NOTE: If installing a new park gear, refer to OUTPUT SHAFT - CHECK DIESEL ENGINE  or OUTPUT SHAFT - CHECK GAS ENGINE .

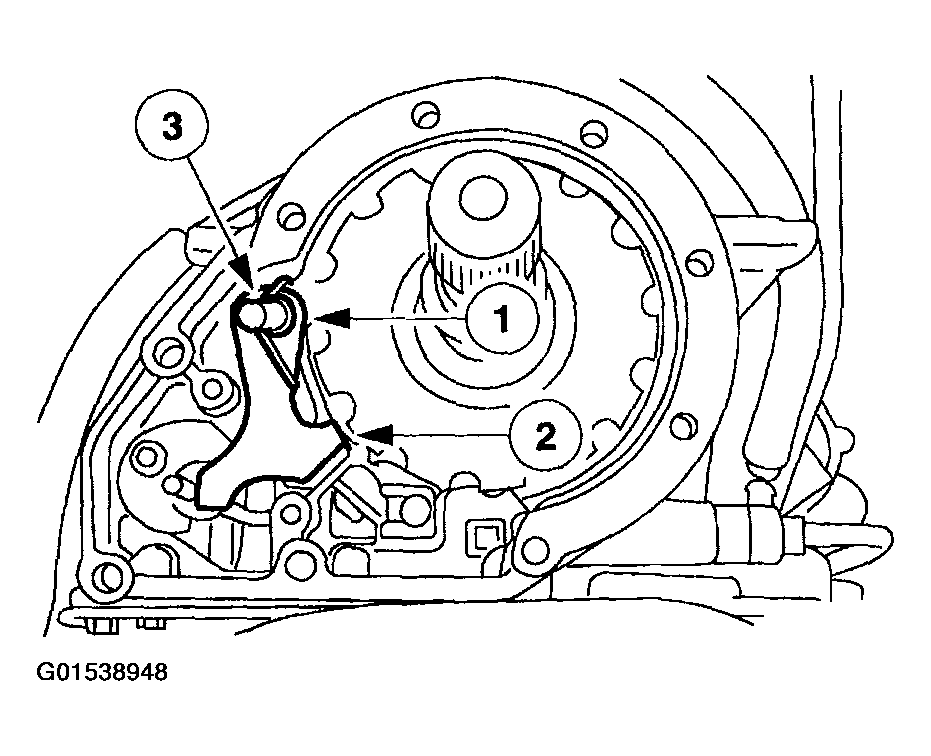

    Fig 2: Removing Park Pawl Shaft
    G01538948Courtesy of FORD MOTOR CO.
  3. Remove the park pawl shaft.
    1. Remove the park pawl return spring.
    2. Remove the park pawl.
    3. Remove the park pawl shaft.
