Intermediate Servo: Removal

  1. Remove the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY - ACCUMULATOR BODY, SOLENOID BODY .
    2. NOTE: Gently tap on the servo cover with a rubber mallet to compress and allow servo assembly to pop up.

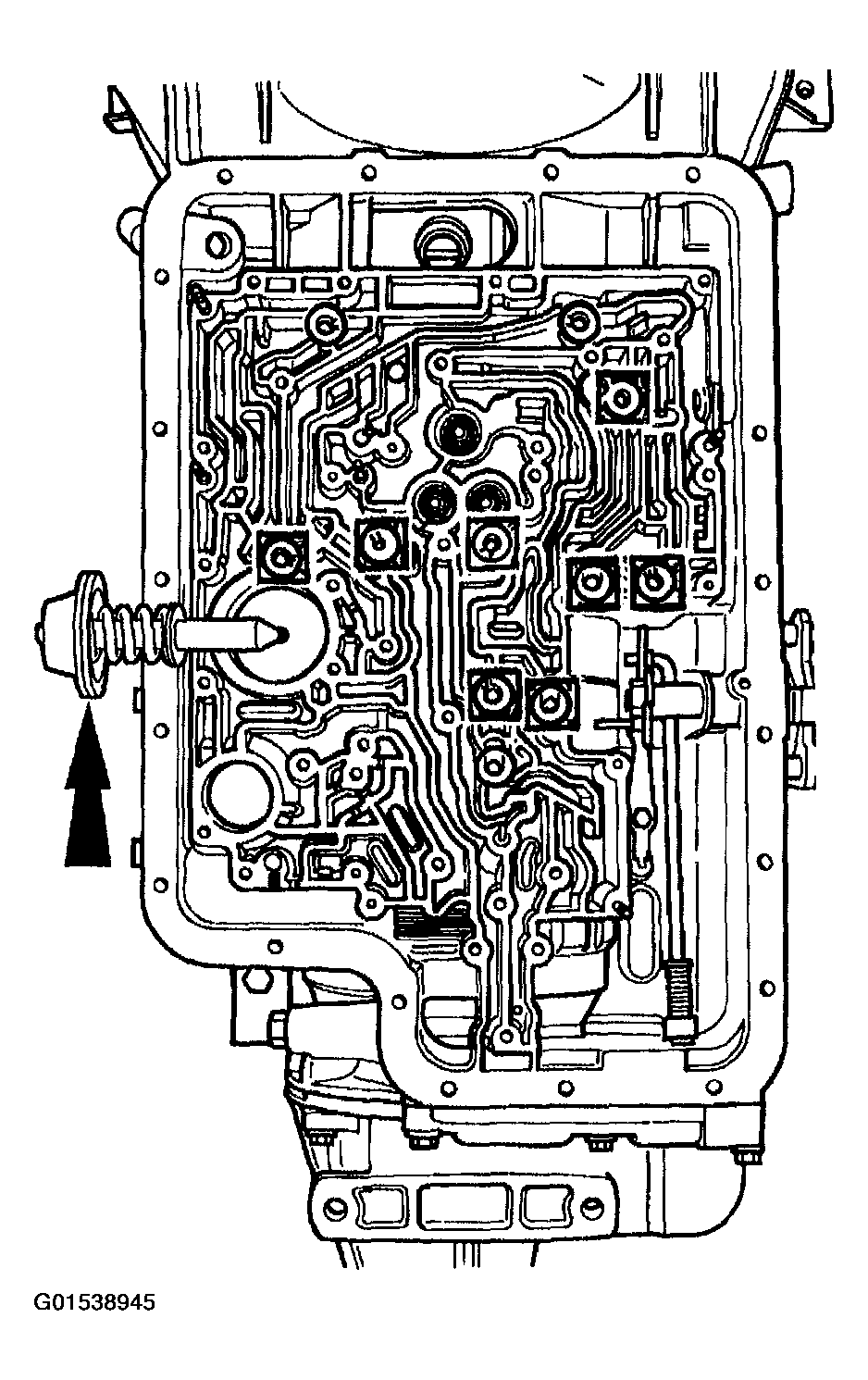

    Fig 1: Removing Intermediate Servo
    G01538945Courtesy of FORD MOTOR CO.
  2. Remove the intermediate servo.
