Intermediate Servo: Installation

    NOTE: Lubricate the servo seal with clean transmission fluid.

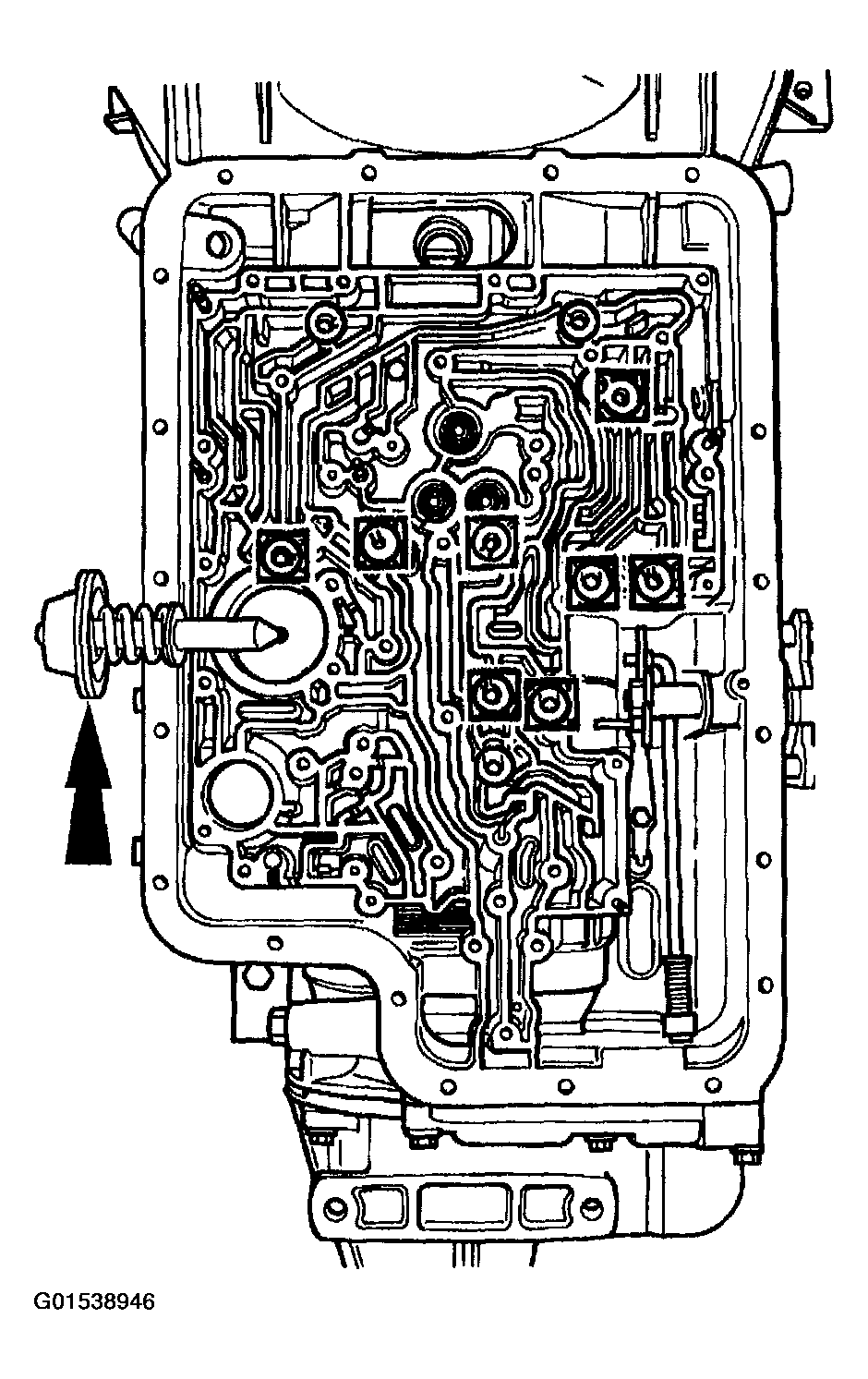

    Fig 1: Installing Intermediate Band Servo
    G01538946Courtesy of FORD MOTOR CO.
  1. Install the intermediate band servo.
  2. Install the main control valve body.
