Digital Transmission Range (Tr) Sensor: Installation

Install the digital TR sensor.
1. Install the sensor.
2. Loosely install the bolts.

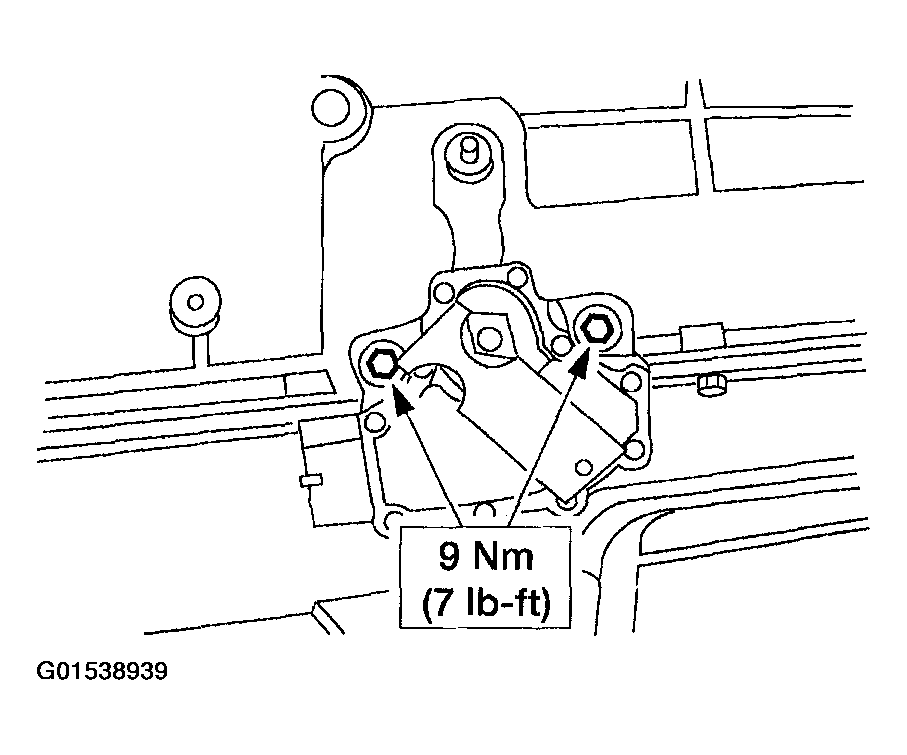

Fig 1: Installing Digital TR Sensor
Courtesy of FORD MOTOR CO.

NOTE: Make sure that the manual control lever is in the neutral position.

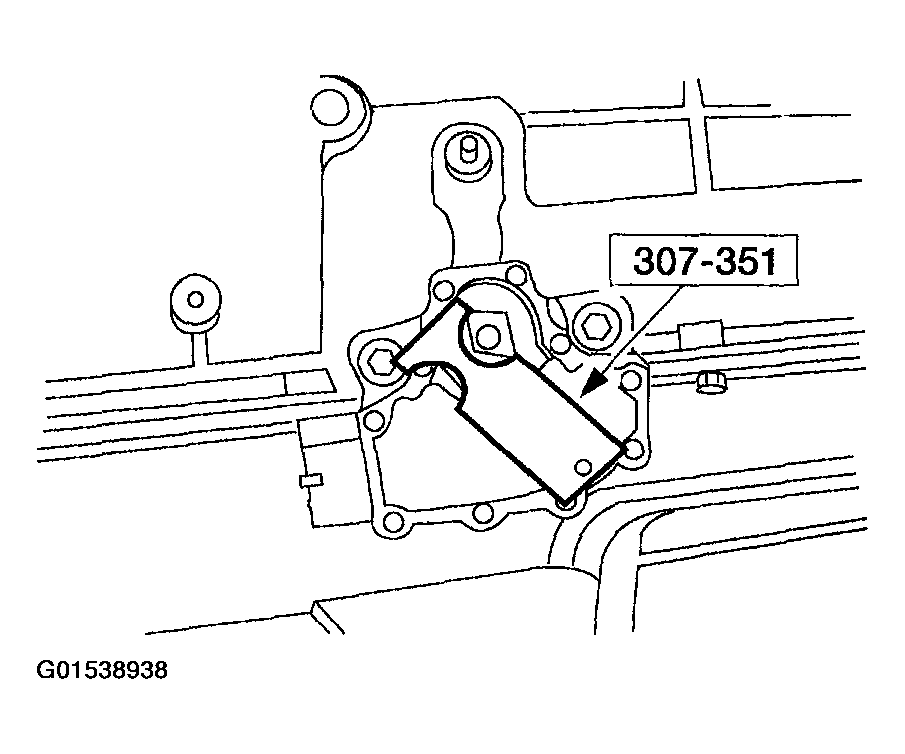

Fig 2: Aligning Digital TR Sensor Using Special Tool

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor. The tool is designed to fit snug.
Tighten the bolts.

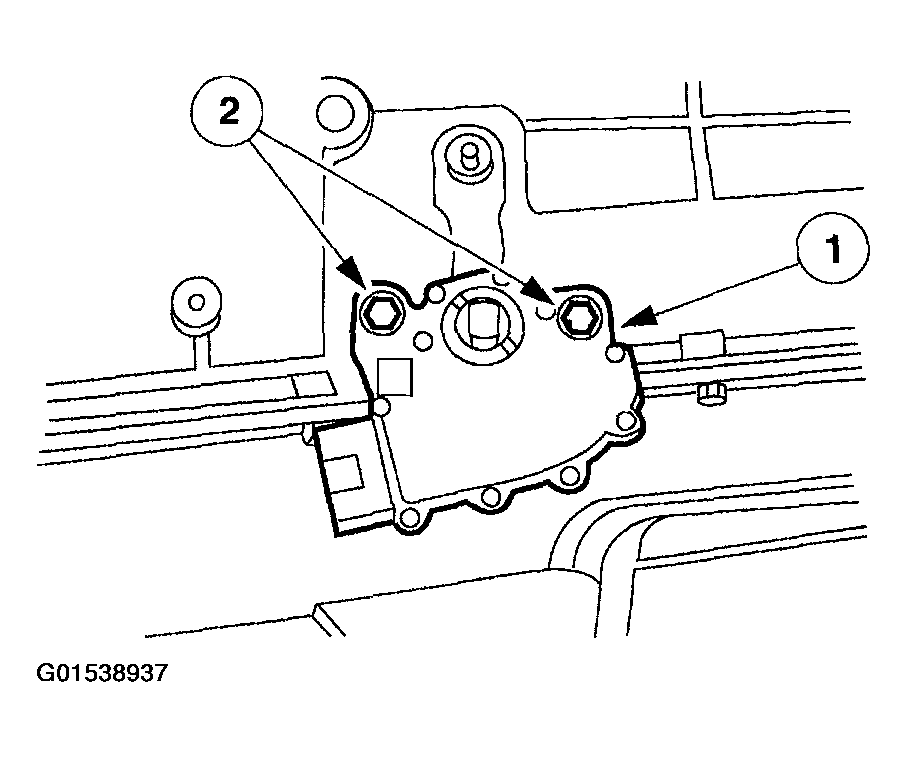

Fig 3: Tightening Digital TR Sensor Bolts
Courtesy of FORD MOTOR CO.
Reconnect the shift cable at the manual control lever.

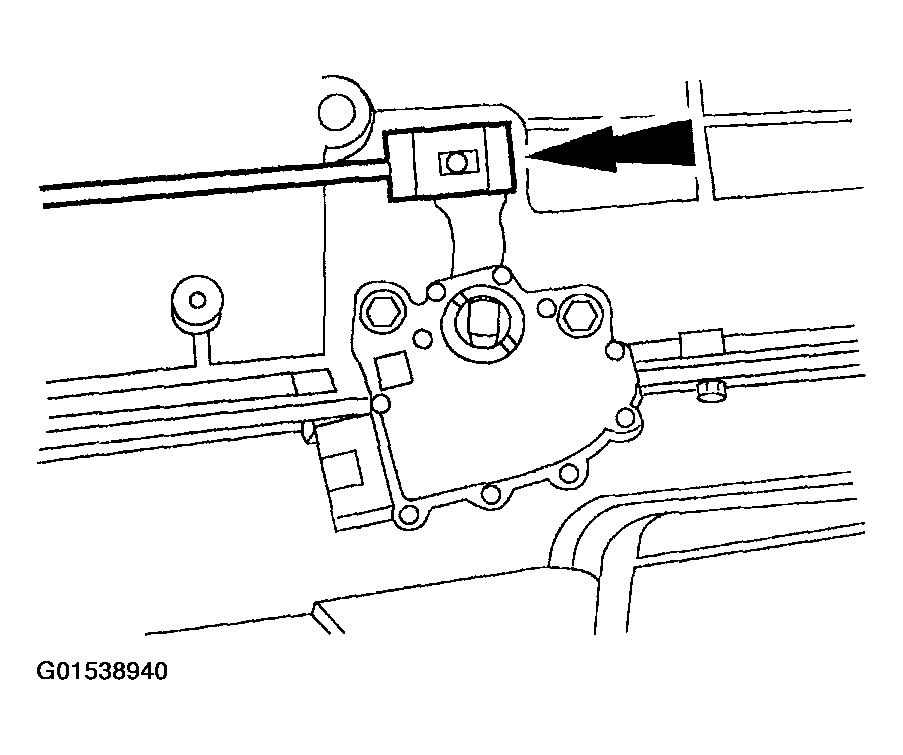

Fig 4: Connecting Shift Cable At Manual Control Lever
Courtesy of FORD MOTOR CO.
Reconnect the connector.

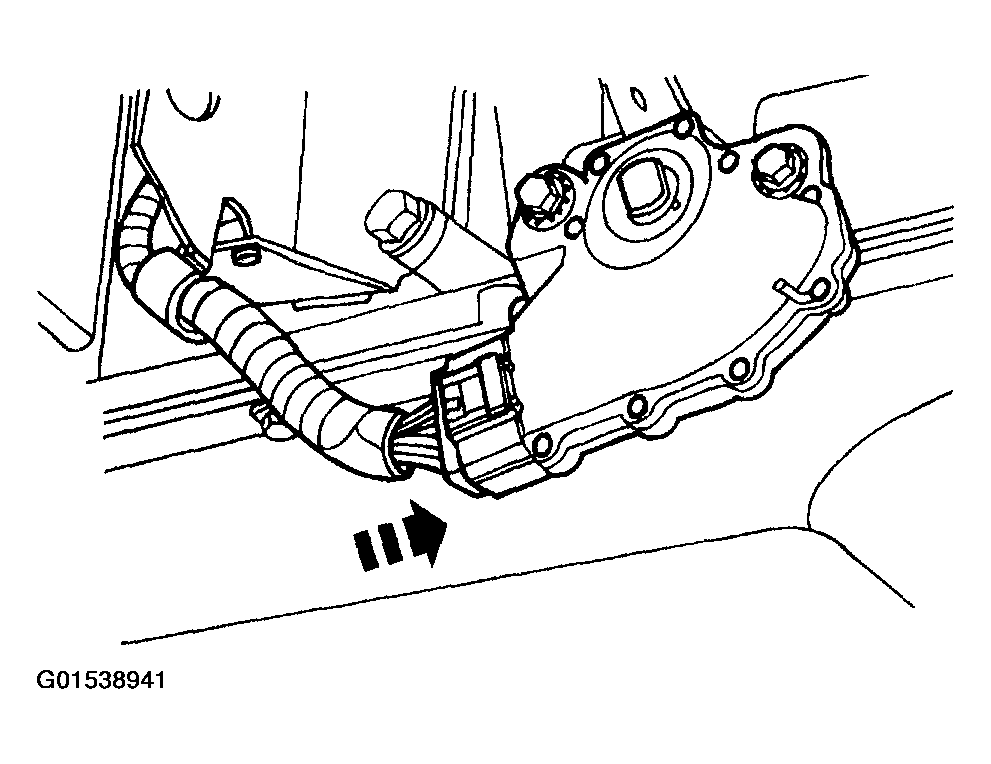

Fig 5: Connecting Digital TR Sensor Connector
Courtesy of FORD MOTOR CO.
Reconnect the battery ground cable.
Lower the vehicle.
