Automatic Transmission - 4R100
>>
Disassembly And Assembly Of Subassemblies
>>
Pump Assembly
>>
Pump Assembly, Disassembled View
Pump Assembly, Disassembled View

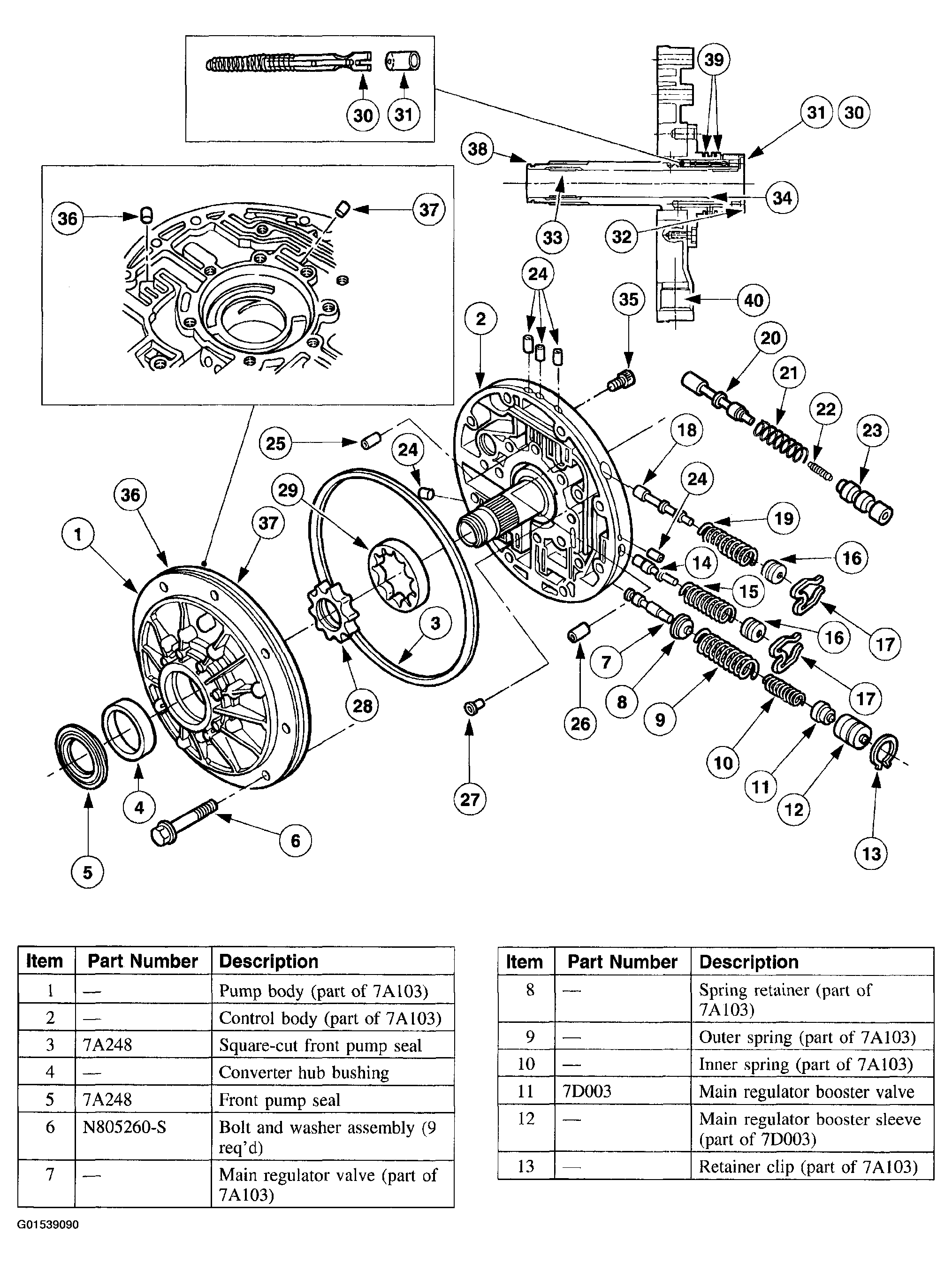

Fig 1: Disassembled View Of Pump Assembly
Courtesy of FORD MOTOR CO.

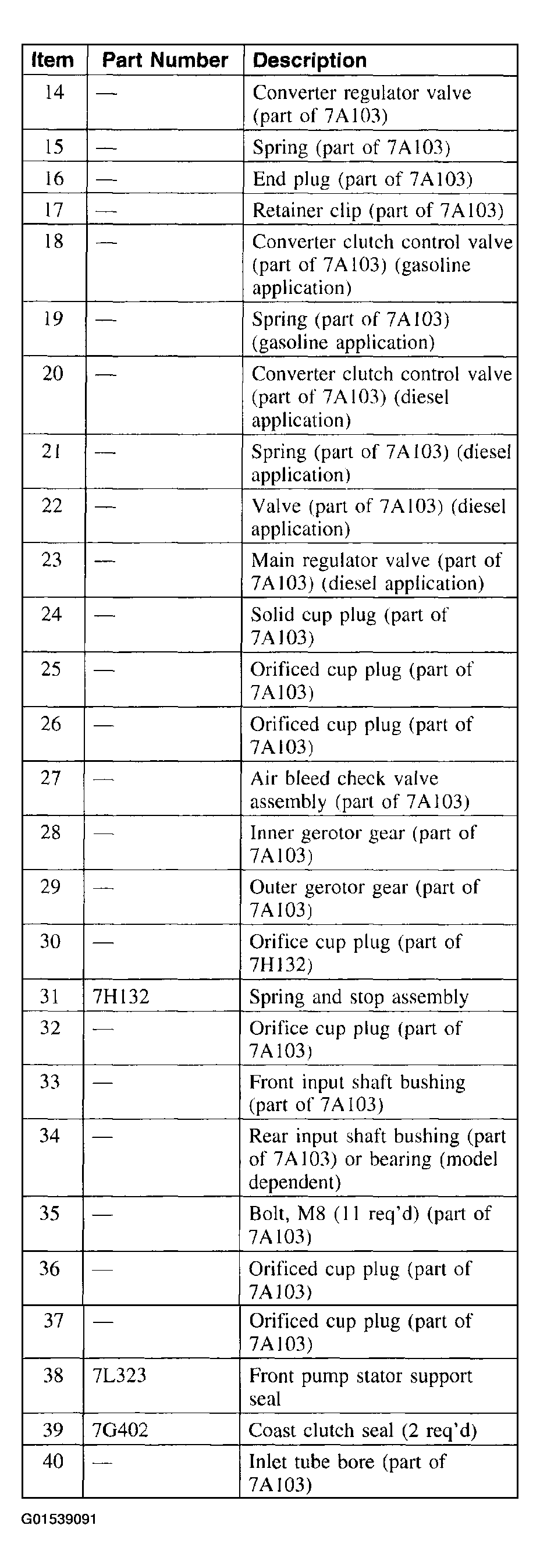

Fig 2: Parts Number Description Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
