Output Shaft - Check Diesel Engine: Disassembly
- Inspect the output shaft for wear. Make sure the cup plug orifice and lube passages through output shaft are clean and free of debris. Replace as required.
- Inspect the bearing surfaces of the output shaft for wear or scores. If excessive wear or scores are found, replace output shaft and inspect mating components.
- Check the splines on the output shaft for wear. Replace the output shaft if the splines are excessively worn. Inspect all the bushings for wear. Replace if worn or damaged.
- Inspect the output shaft for damage and install new as necessary.

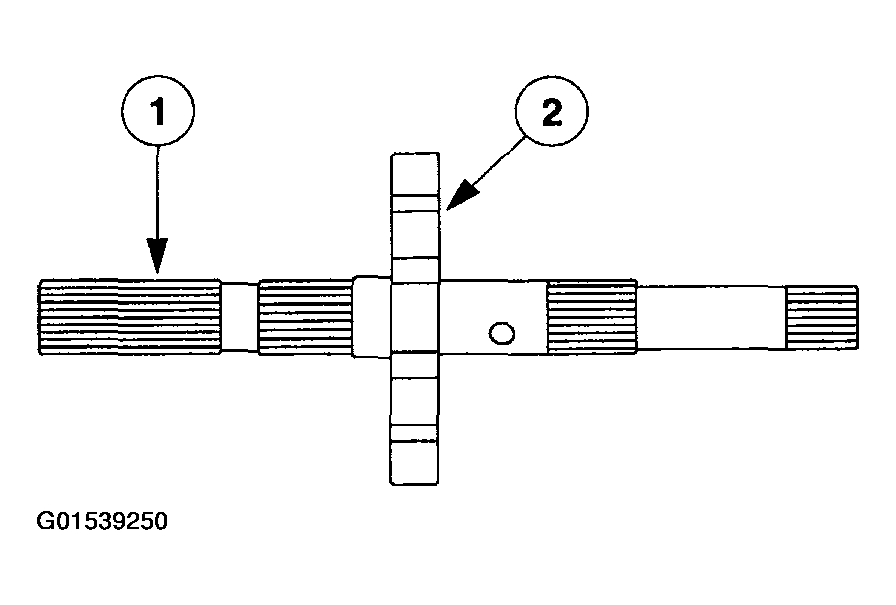

- Inspect the output shaft.
- Inspect the park gear.

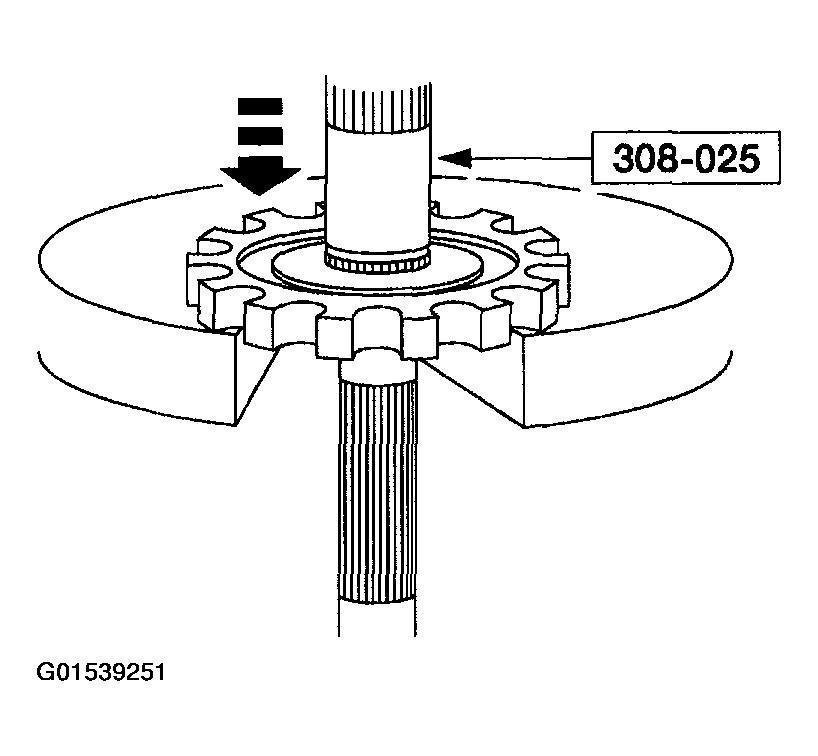

- If required, use an Arbor Press and the special tool to remove the park gear. Remove the park gear.
CAUTION:
Build-up of contamination can block the flow of lubricant behind the cup plug and cause transmission assembly damage.
NOTE:
The anti-seepage seal is intended for shipping purposes only. It is not necessary to remove and reuse this seal when replacing the output shaft.
NOTE:
The output shaft cannot be disassembled and must be replaced if damaged.
NOTE:
The park gear will only require removal if either the output shaft or the park gear is damaged and require replacement.
