Output Shaft - Check Diesel Engine: Assembly

  1. If removed, use the Arbor Press and the special tool to install the park gear, press the park gear onto the output shaft until it stops at the shoulder on the output shaft.

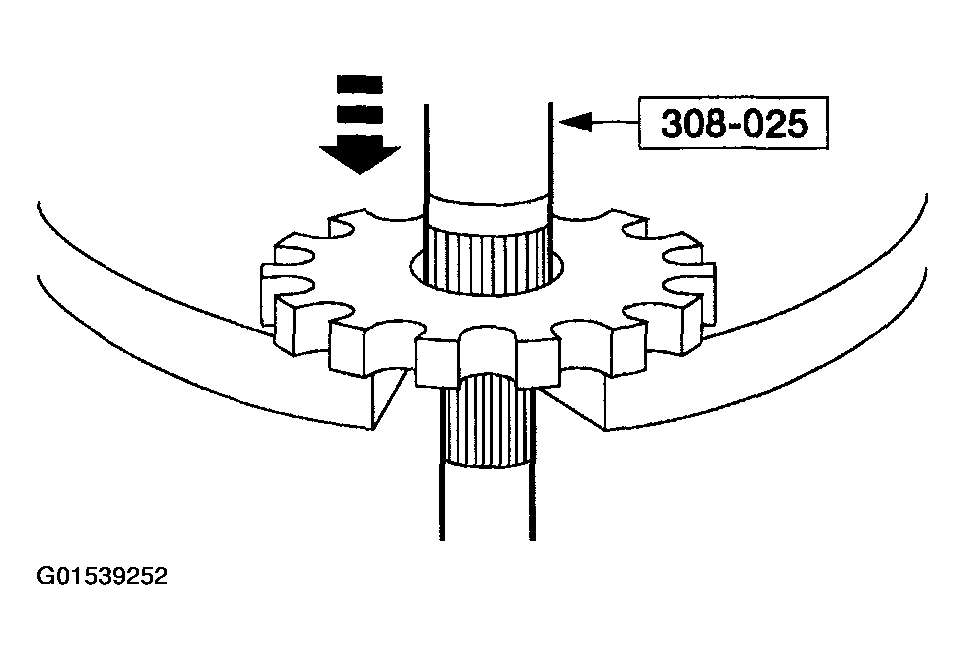

    Fig 1: Installing Park Gear Using Special Tool
    G01539252Courtesy of FORD MOTOR CO.
