Low One-Way Clutch Assembly: Notes

LOW/REVERSE ONE-WAY CLUTCH ASSEMBLY AND PISTON, DISASSEMBLED VIEW

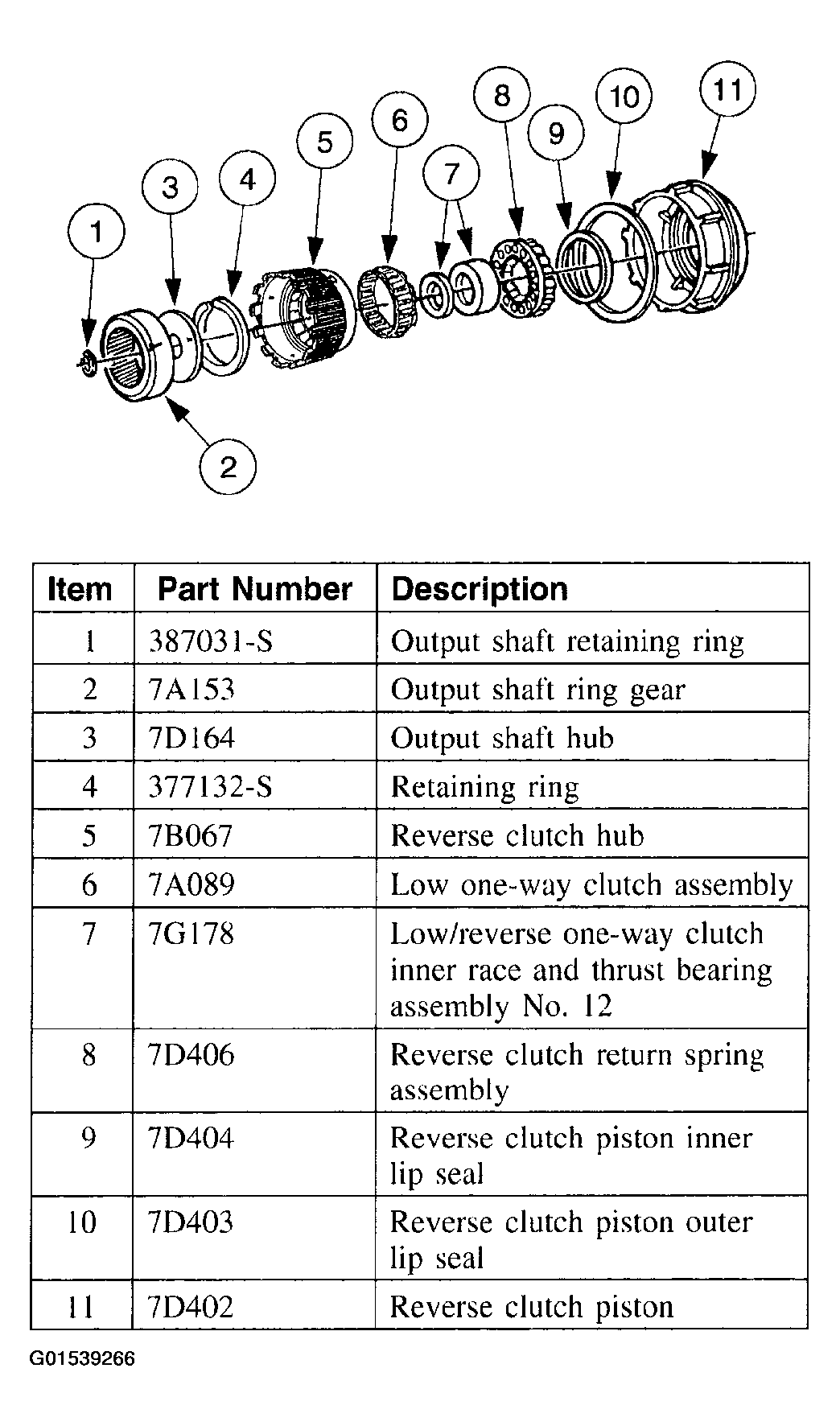

Fig 1: Disassembled View Low/Reverse One-Way Clutch Assembly and Piston

G01539266

Courtesy of FORD MOTOR CO.
