Intermediate/Overdrive Cylinder Assembly: Notes

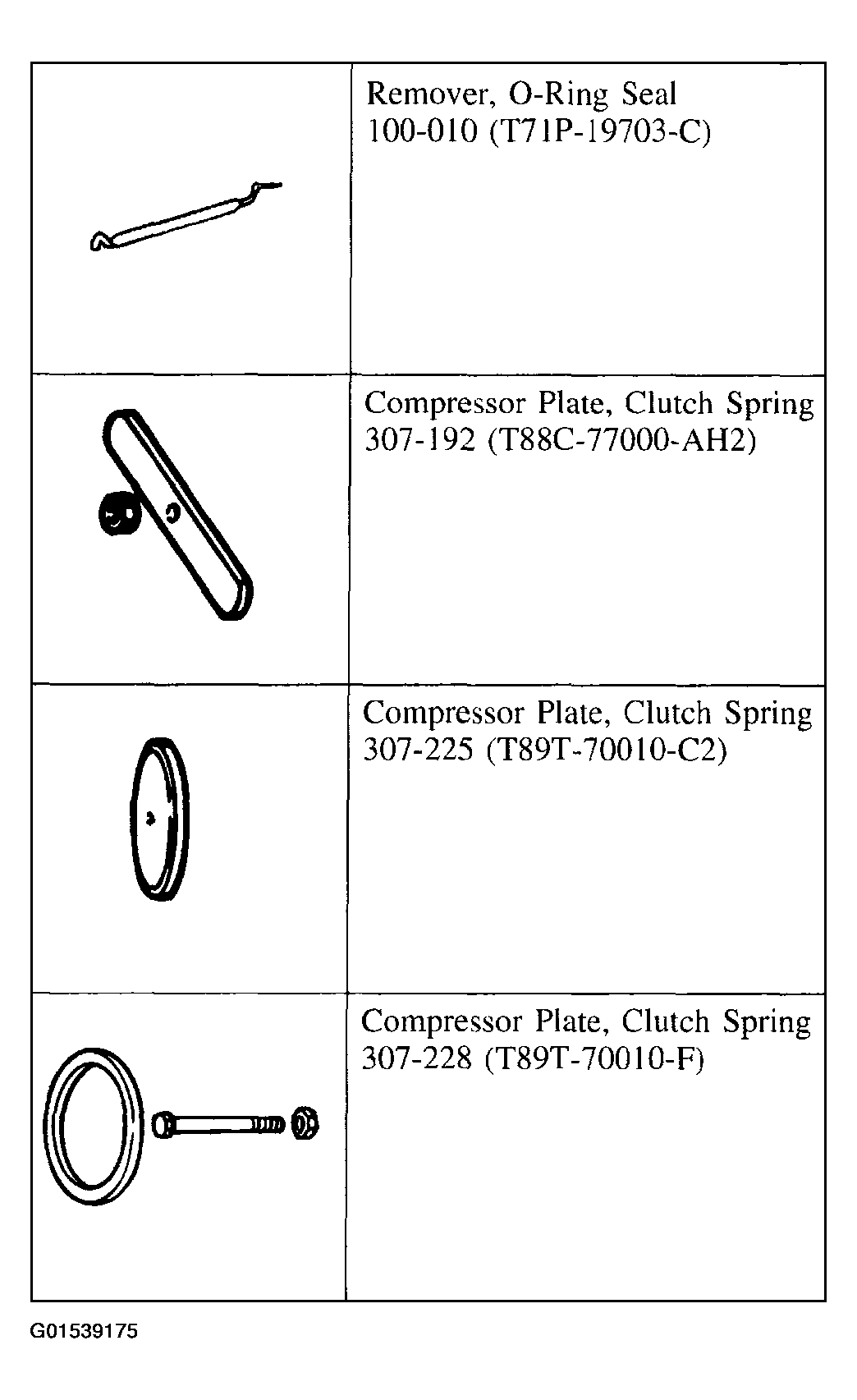

SPECIAL TOOL(S)

Fig 1: Identifying Special Tools
G01539175Courtesy of FORD MOTOR CO.

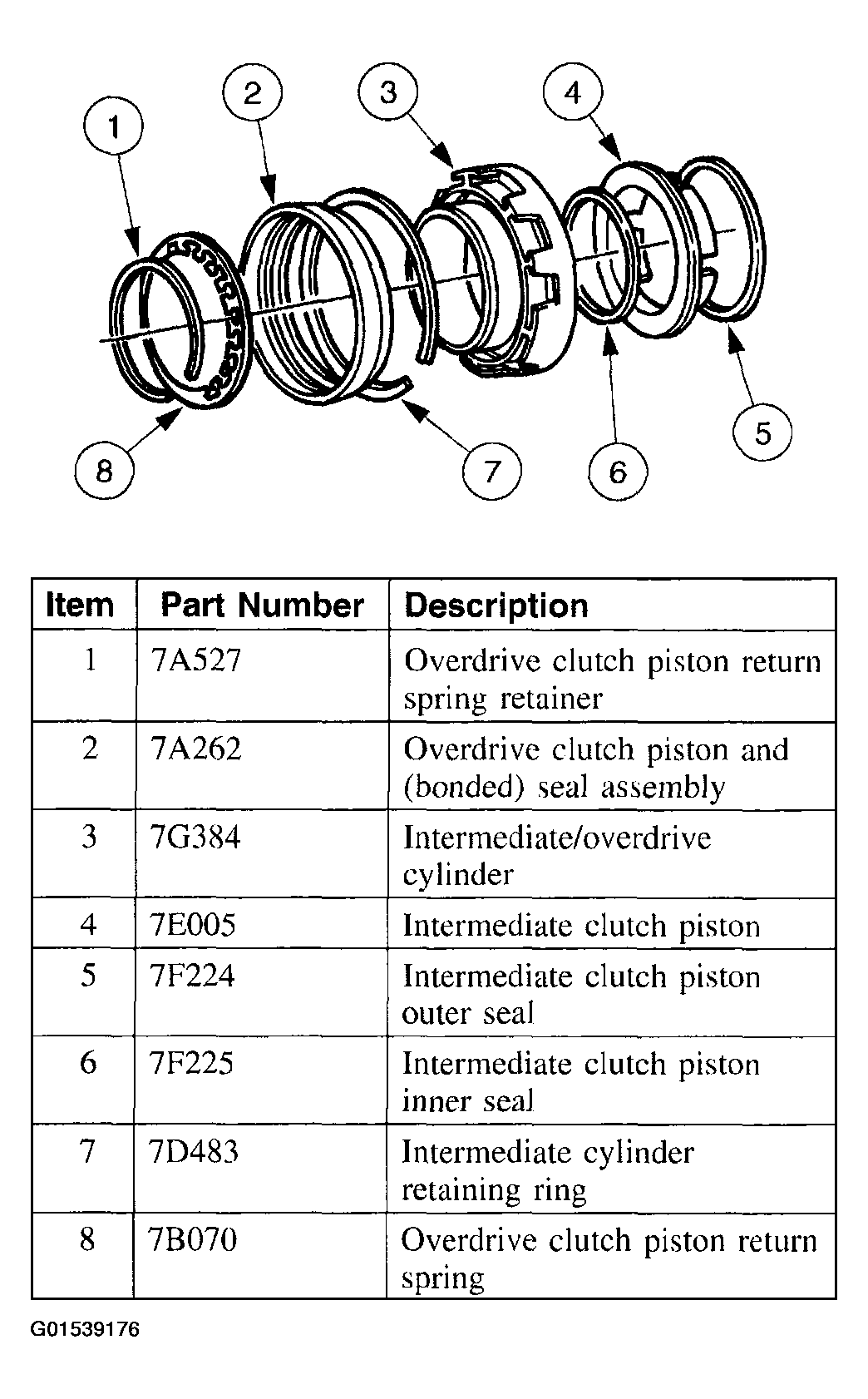

INTERMEDIATE/OVERDRIVE CYLINDER ASSEMBLY, DISASSEMBLED VIEW

Fig 2: Disassembled View Of Intermediate/Overdrive Cylinder Assembly
G01539176Courtesy of FORD MOTOR CO.
