Intermediate/Overdrive Cylinder Assembly: Disassembly

Using the special tools, compress the overdrive clutch piston return spring.

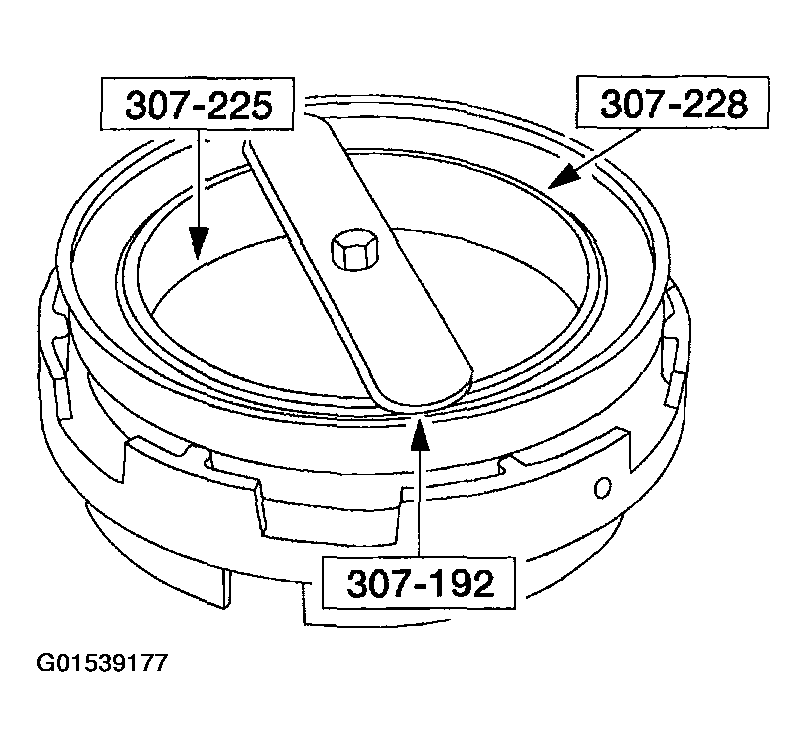

Fig 1: Compressing Overdrive Clutch Piston Return Spring Using Special Tool
Courtesy of FORD MOTOR CO.
Remove the overdrive clutch piston return spring retainer. Remove the tools.

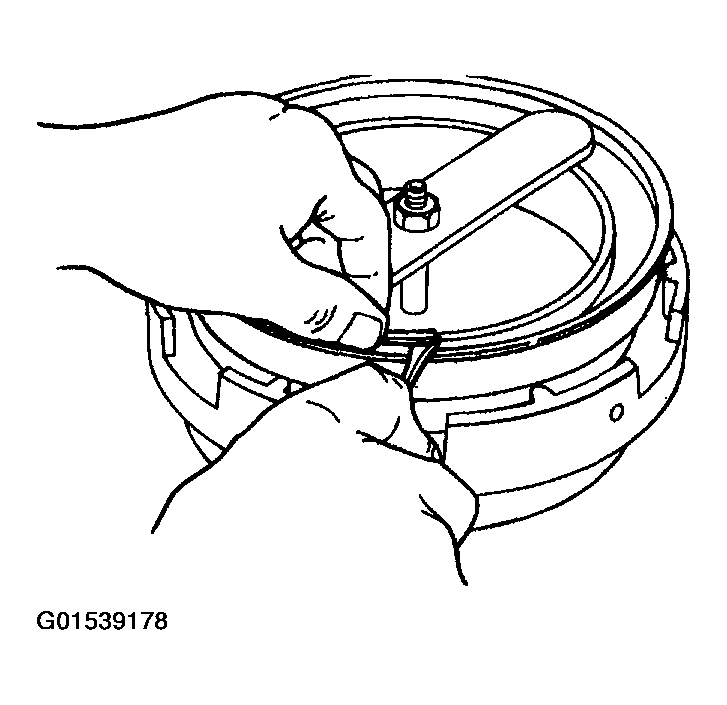

Fig 2: Removing Overdrive Clutch Piston Return Spring Retainer
Courtesy of FORD MOTOR CO.
Remove the overdrive clutch piston return spring.

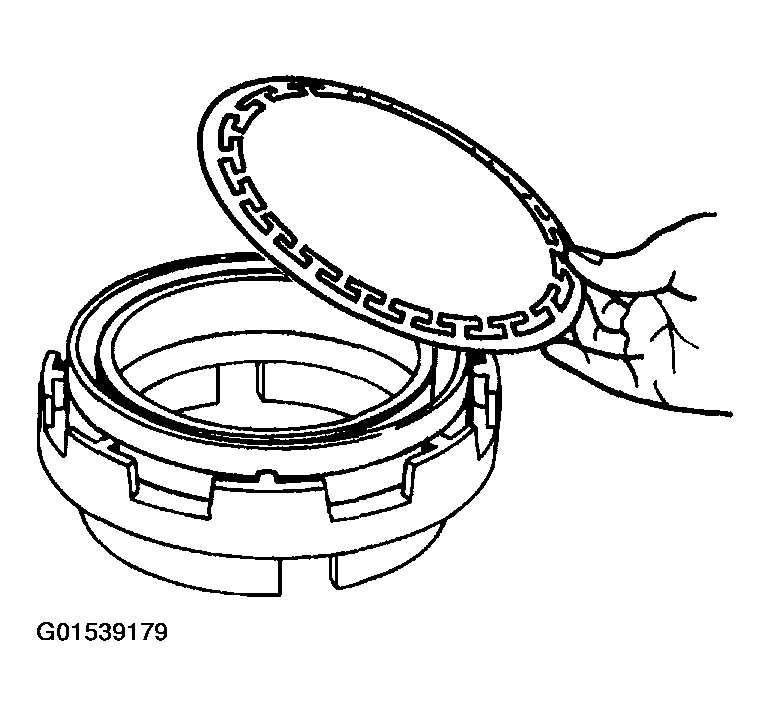

Fig 3: Removing Overdrive Clutch Piston Return Spring
Courtesy of FORD MOTOR CO.

NOTE: The overdrive piston seals are bonded to the piston. If the seals are damaged, replace the piston assembly.

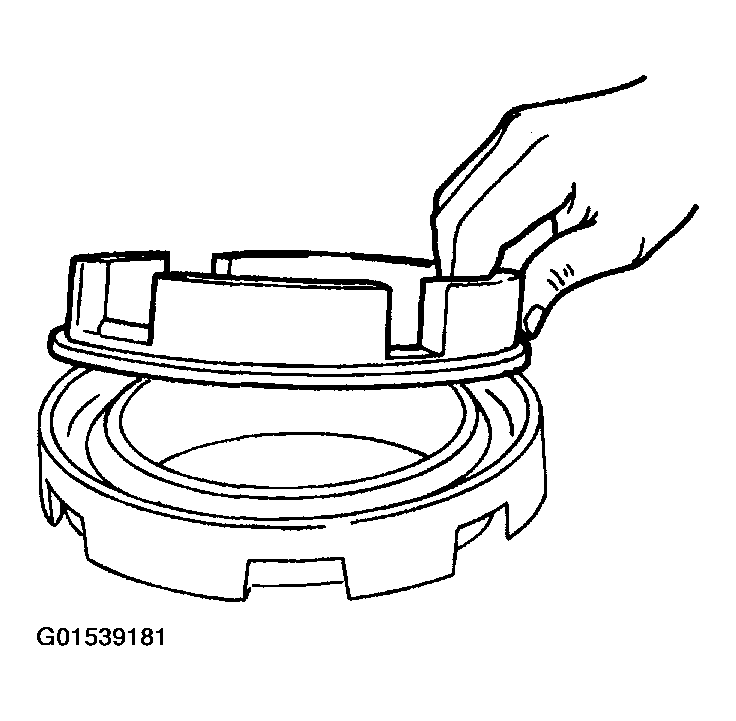

Fig 4: Removing Overdrive Clutch Piston And Seal Assembly

Courtesy of FORD MOTOR CO.

Remove the overdrive clutch piston and seal assembly.
Remove the intermediate clutch piston.

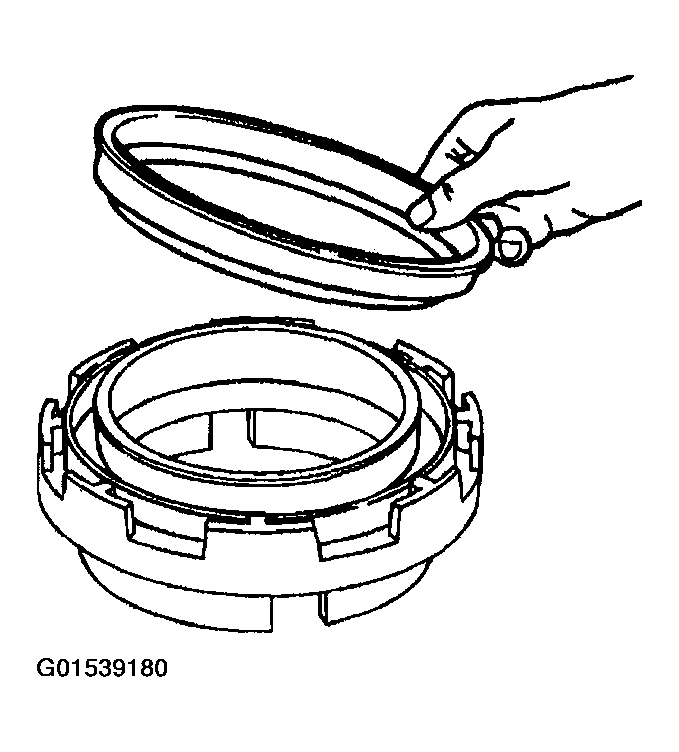

Fig 5: Removing Intermediate Clutch Piston
Courtesy of FORD MOTOR CO.
Using the special tool, remove the intermediate clutch piston inner seal.

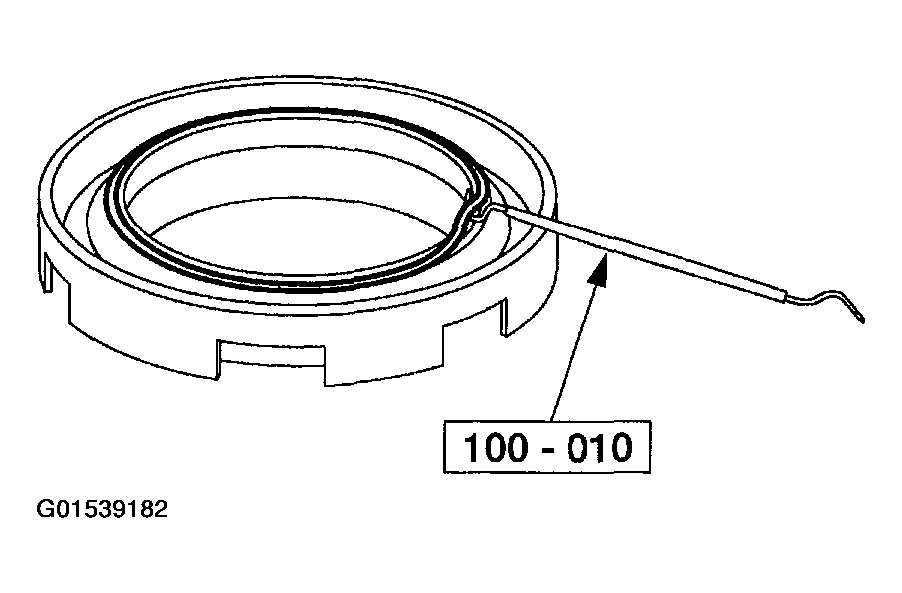

Fig 6: Removing Intermediate Clutch Piston Inner Seal Using Special Tool
Courtesy of FORD MOTOR CO.
Using the special tool, remove the intermediate clutch piston outer seal.

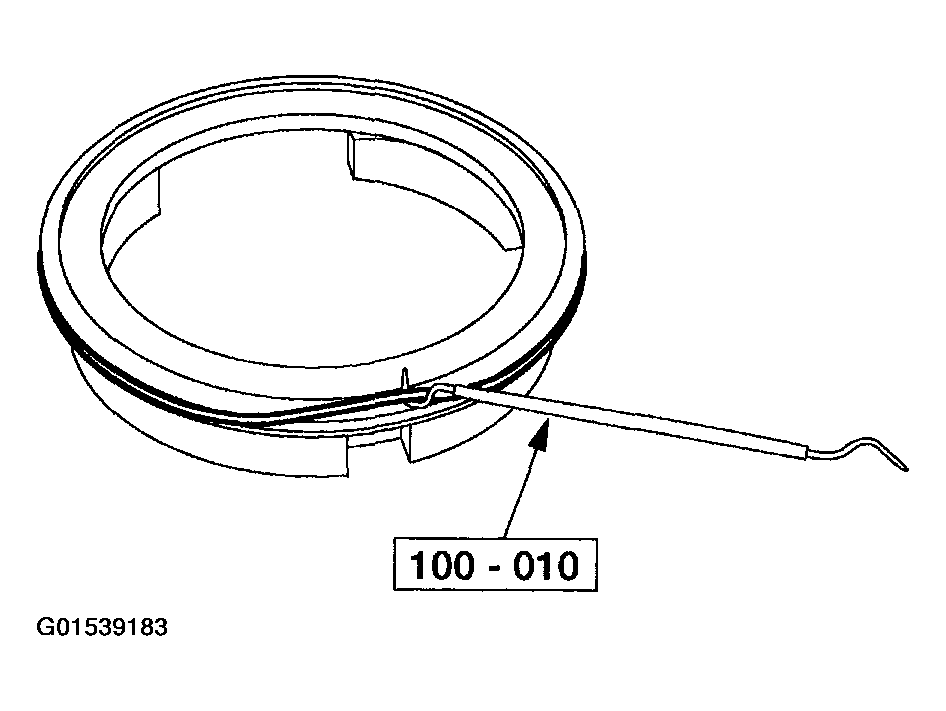

Fig 7: Removing Intermediate Clutch Piston Outer Seal Using Special Tool
Courtesy of FORD MOTOR CO.
