Forward Clutch Assembly: Notes

SPECIAL TOOL(S)

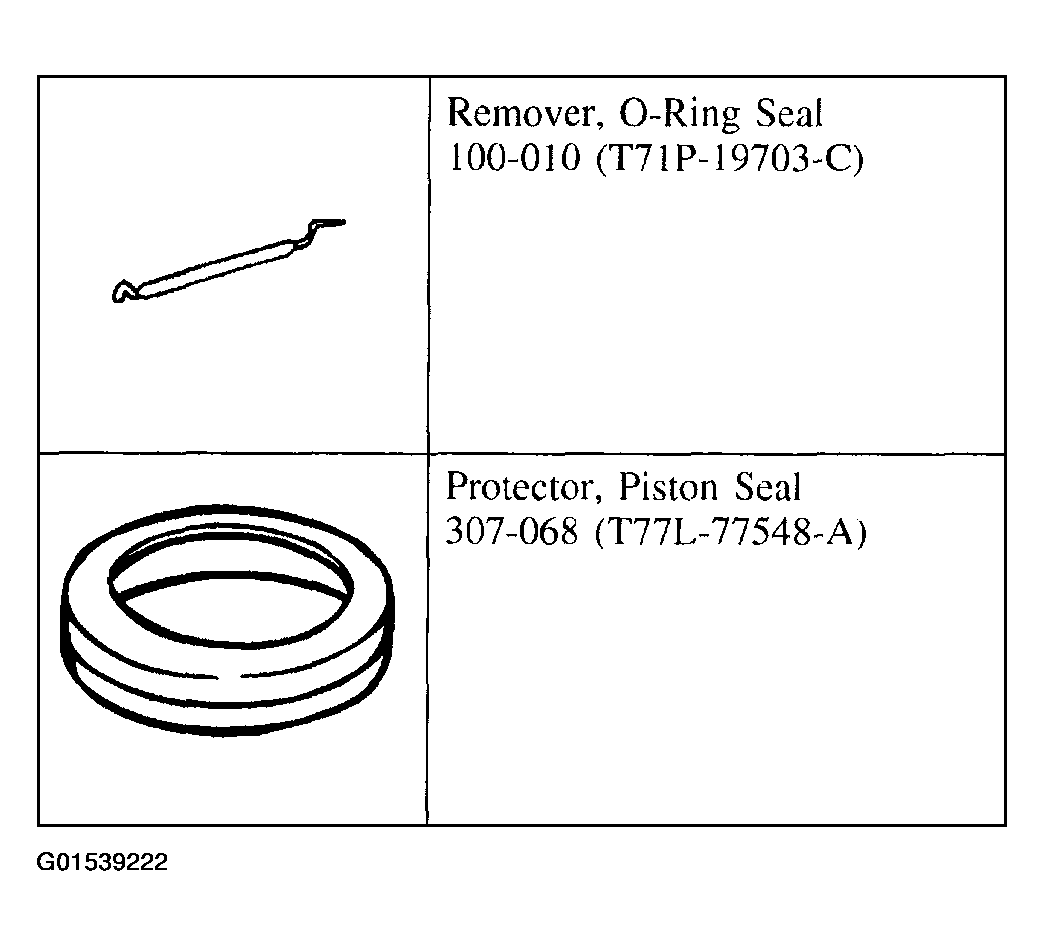

Fig 1: Identifying Special Tools
G01539222Courtesy of FORD MOTOR CO.

MATERIAL

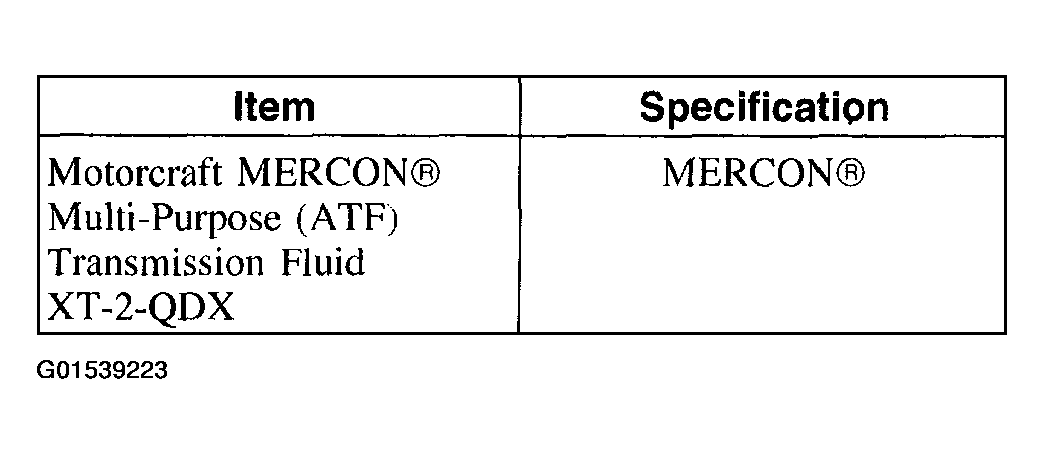

Fig 2: Material Specifications
G01539223Courtesy of FORD MOTOR CO.

FORWARD CLUTCH ASSEMBLY, DISASSEMBLED VIEW

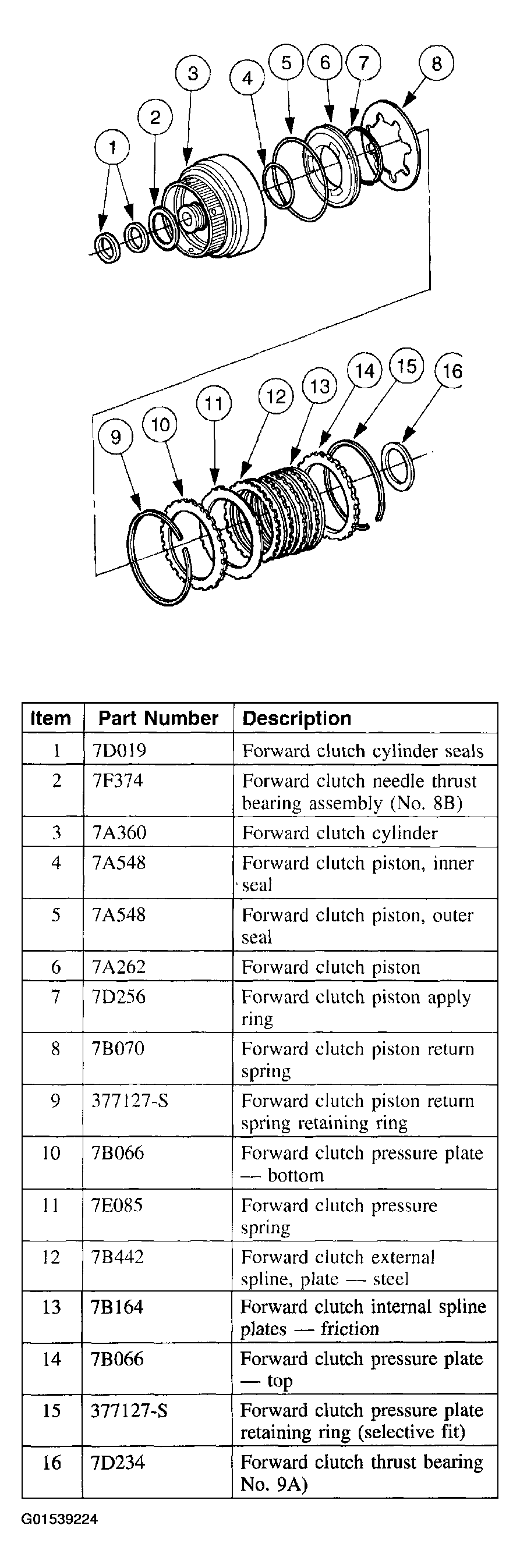

Fig 3: Disassembled View Of Forward Clutch Assembly
G01539224Courtesy of FORD MOTOR CO.
