Direct Clutch Assembly And Intermediate Brake Drum: Notes

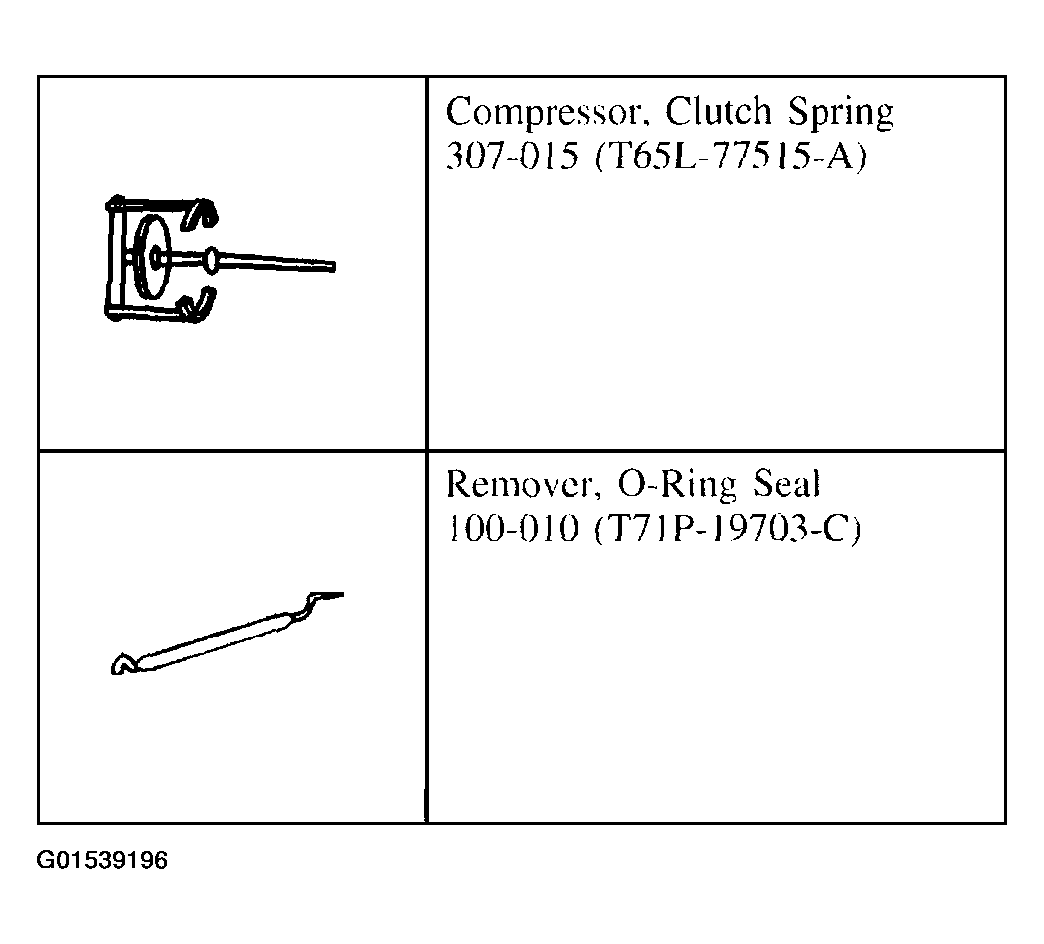

SPECIAL TOOL(S)

Fig 1: Identifying Special Tools
G01539196Courtesy of FORD MOTOR CO.

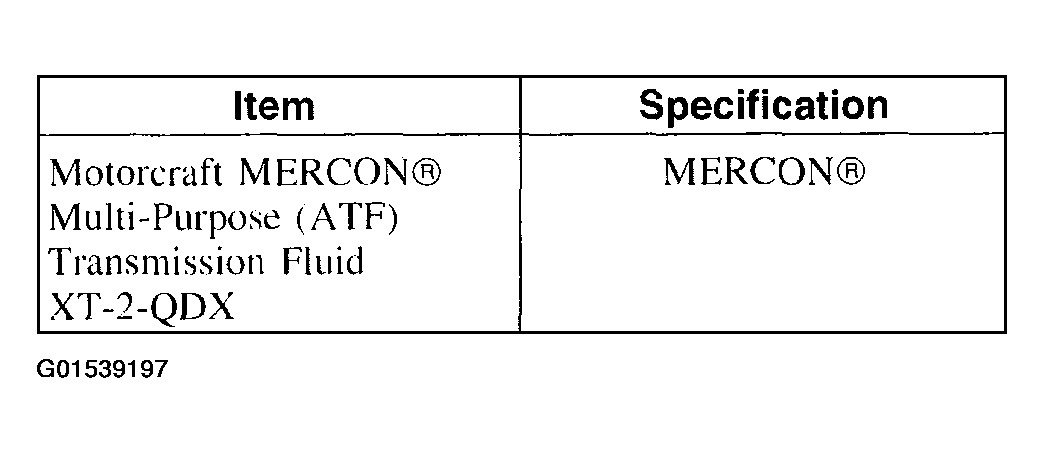

MATERIAL

Fig 2: Material Specifications
G01539197Courtesy of FORD MOTOR CO.

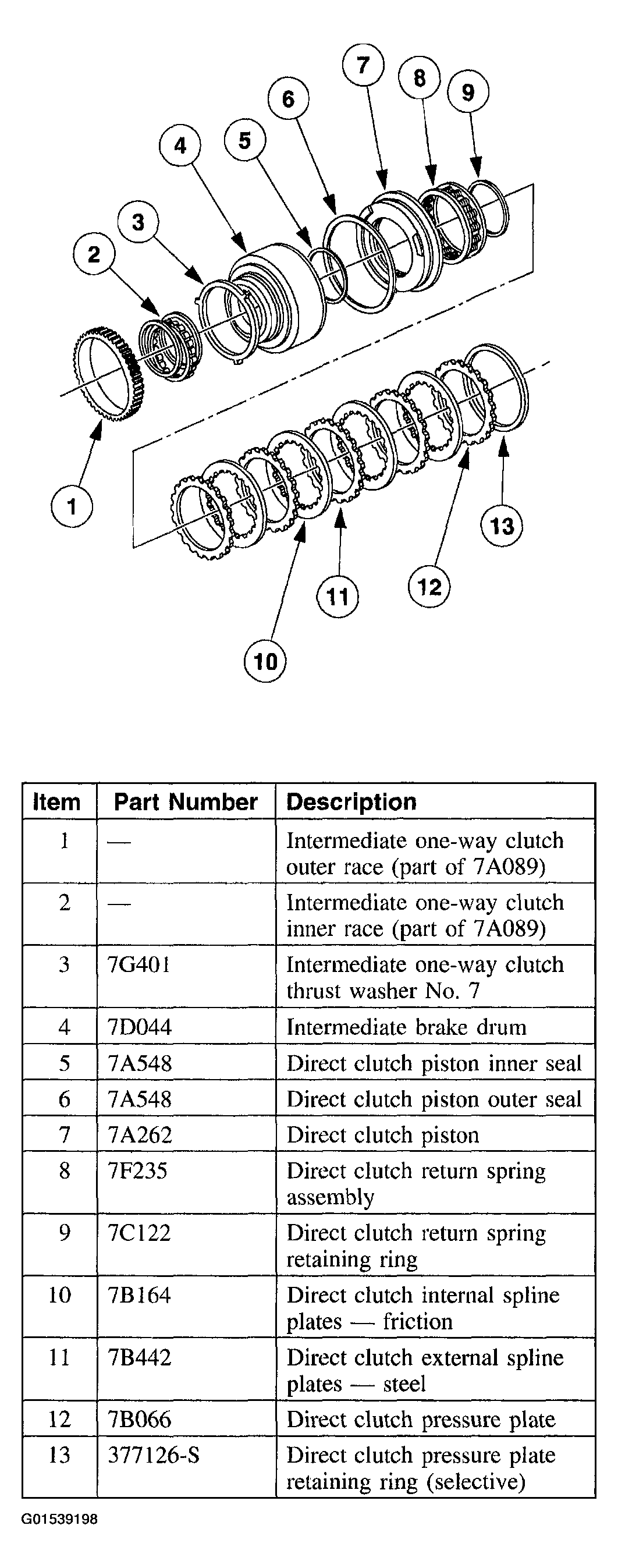

DIRECT CLUTCH ASSEMBLY AND INTERMEDIATE BRAKE DRUM, DISASSEMBLED VIEW

Fig 3: Disassembled View of Direct Clutch Assembly and Intermediate Brake Drum
G01539198Courtesy of FORD MOTOR CO.
