Cooler Bypass Valve Assembly: Assembly

  1. Install new rubber-coated sealing washers.

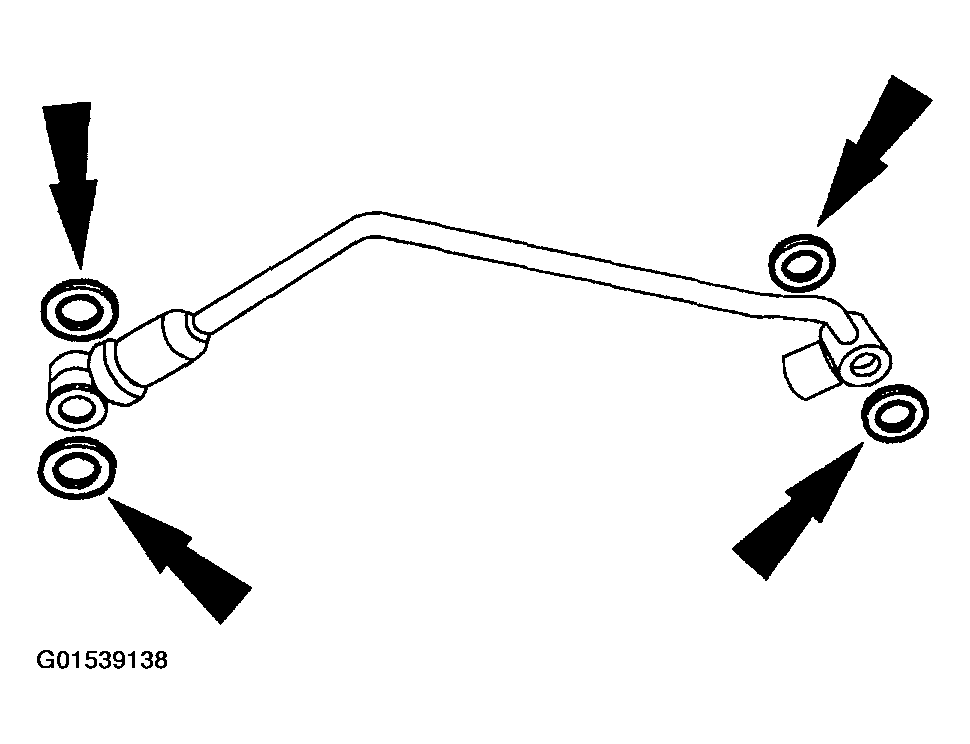

    Fig 1: Installing Rubber-Coated Sealing Washers
    G01539138Courtesy of FORD MOTOR CO.
  2. Install new cooler line case fittings.

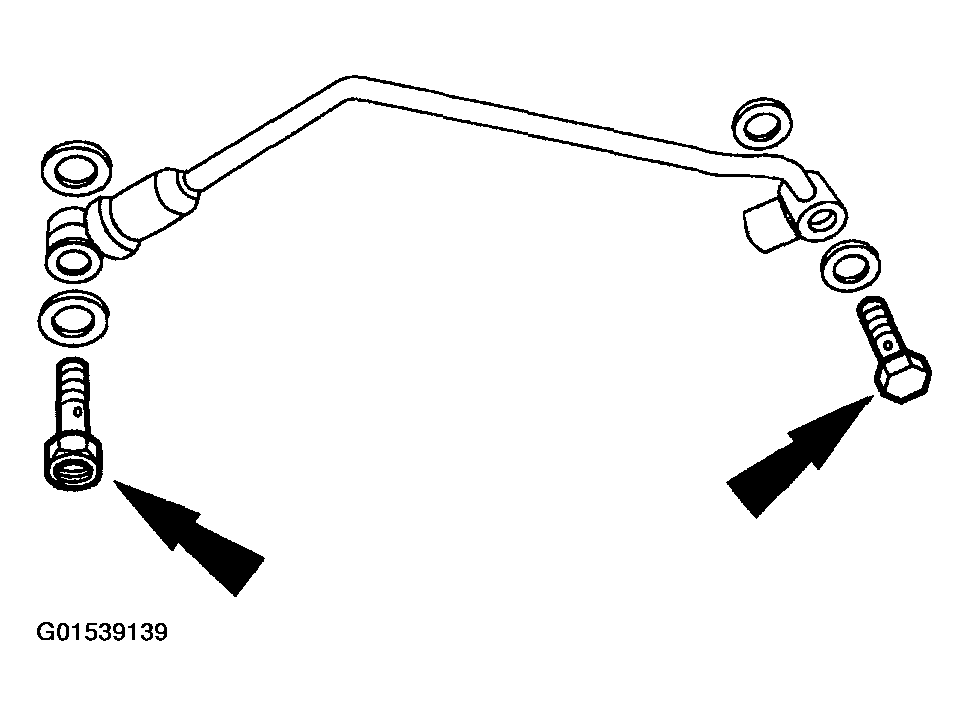

    Fig 2: Installing Cooler Line Case Fittings
    G01539139Courtesy of FORD MOTOR CO.
