Main Components And Functions: Notes

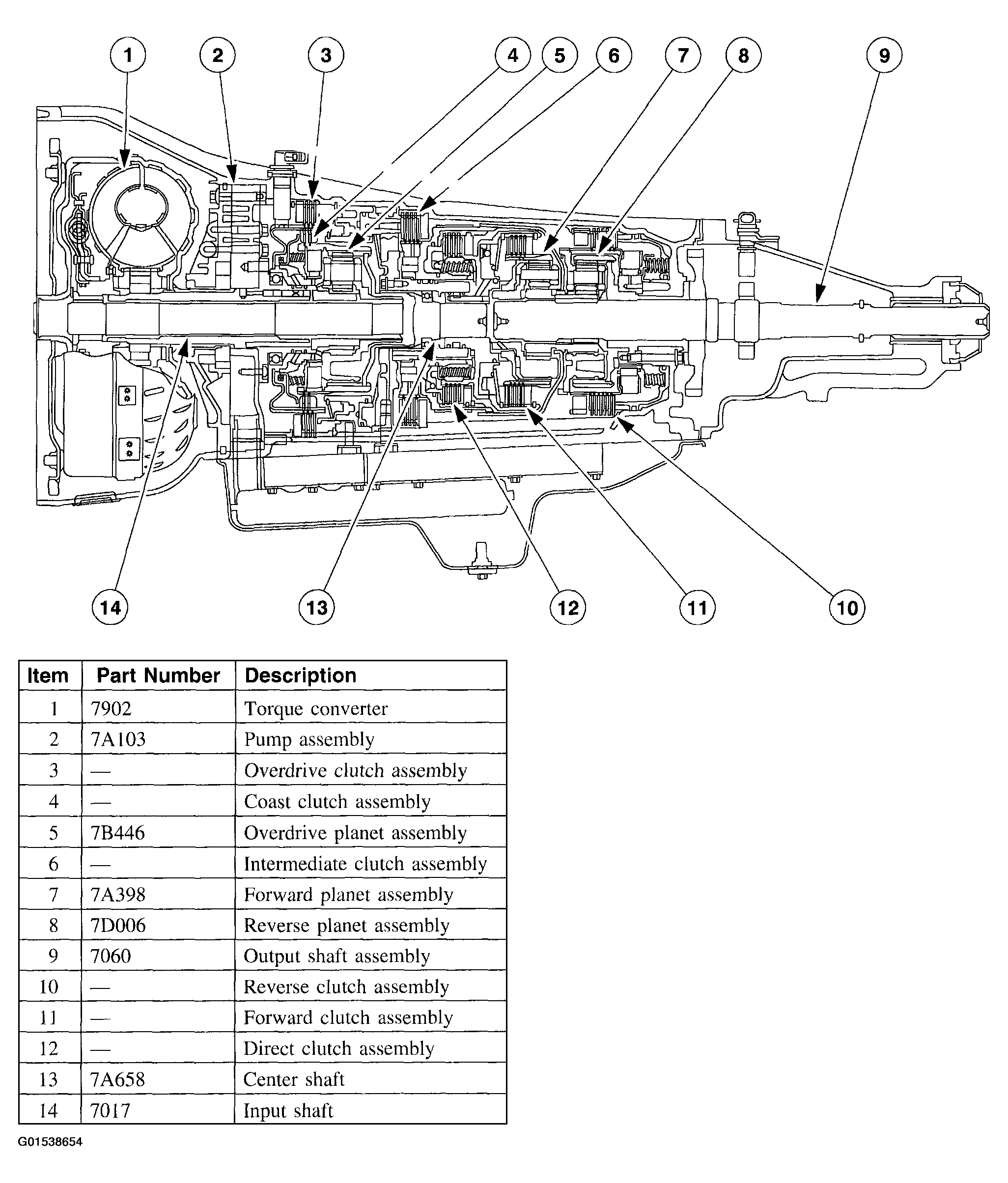

Fig 1: Automatic Transmission - Sectional View

G01538654

Courtesy of FORD MOTOR CO.
