Transmission, Disassembled View

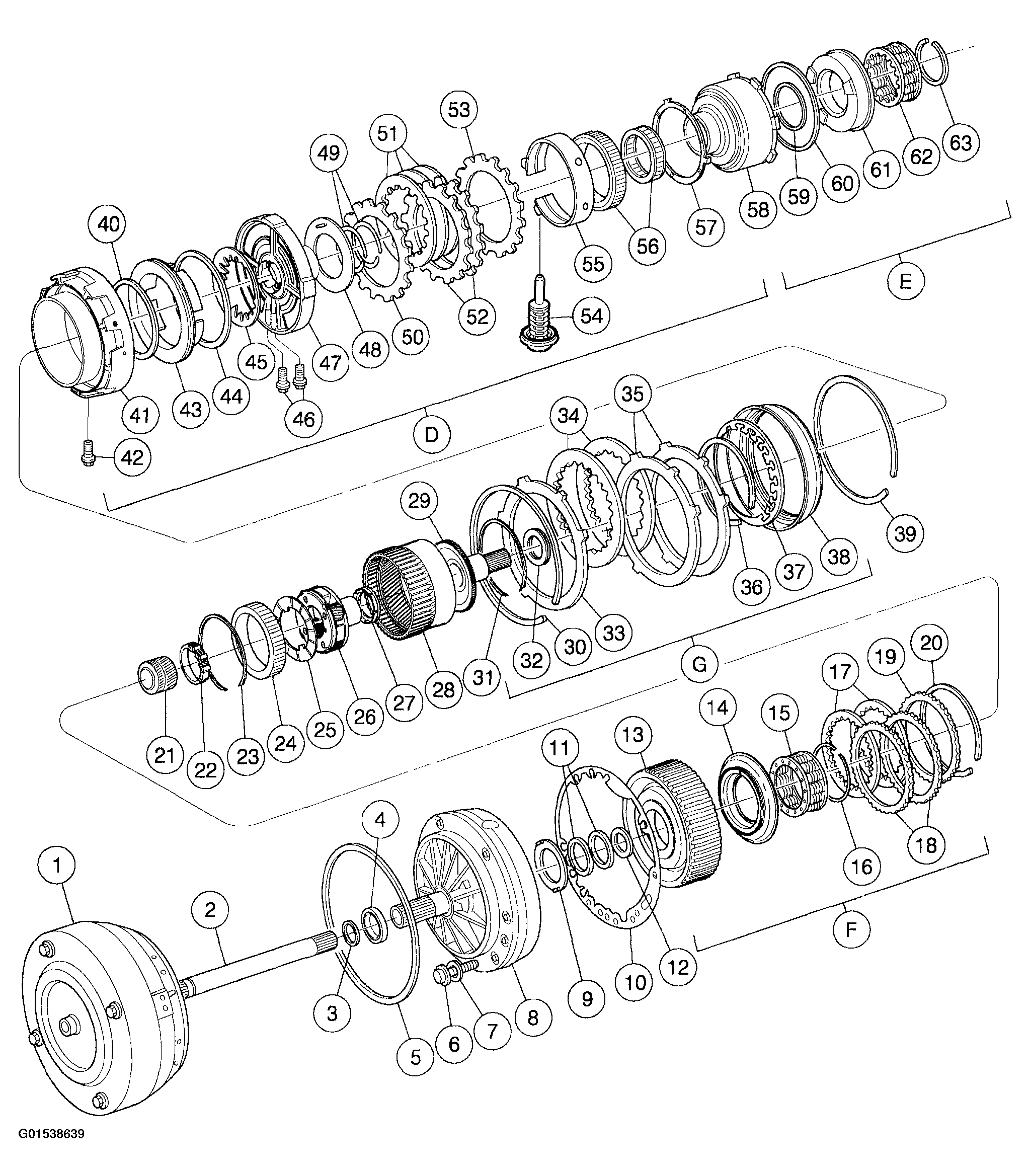

Fig 1: Disassembled View Of Transmission (1 Of 3)

Courtesy of FORD MOTOR CO.

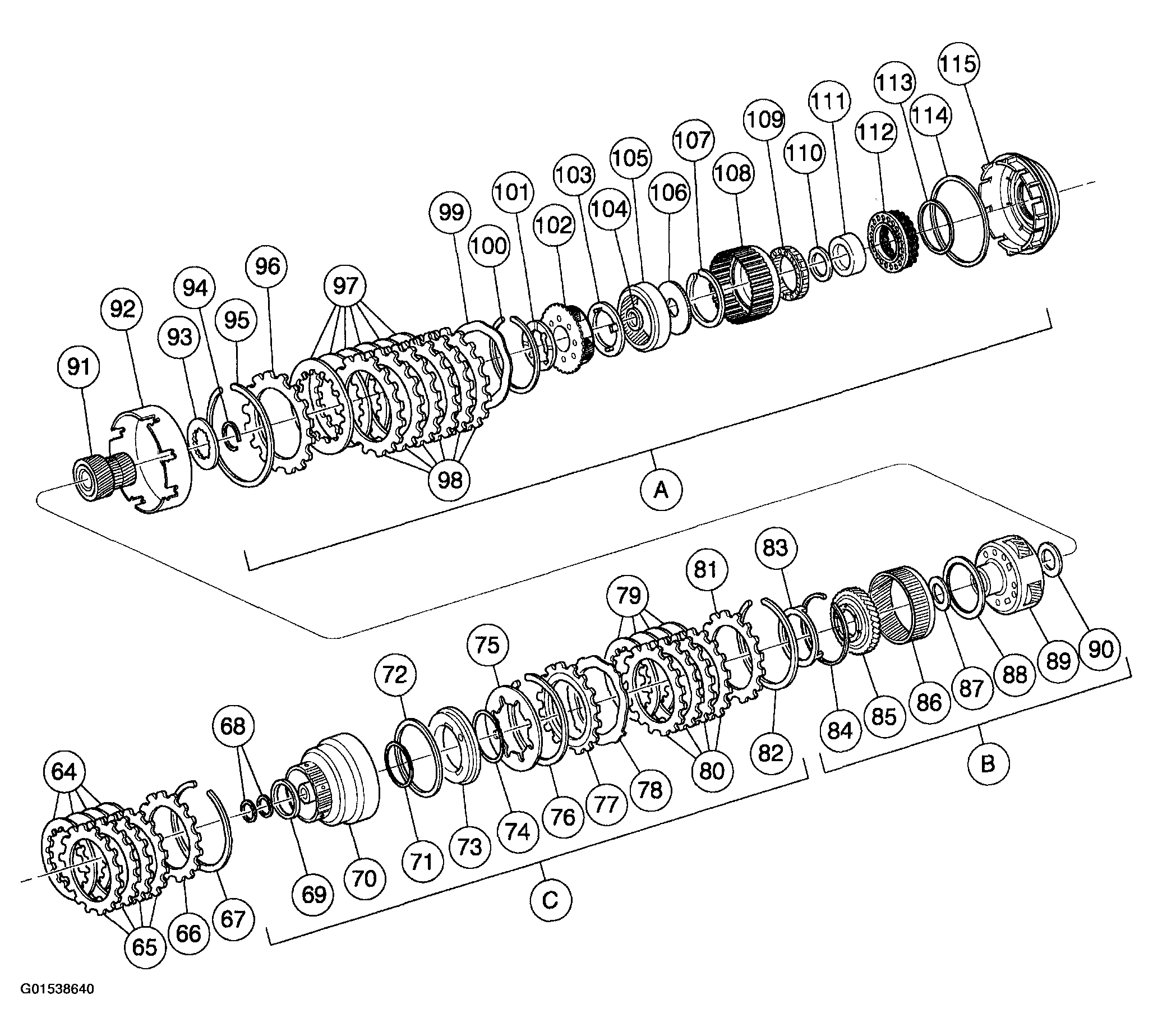

Fig 2: Disassembled View Of Transmission (2 Of 3)

Courtesy of FORD MOTOR CO.

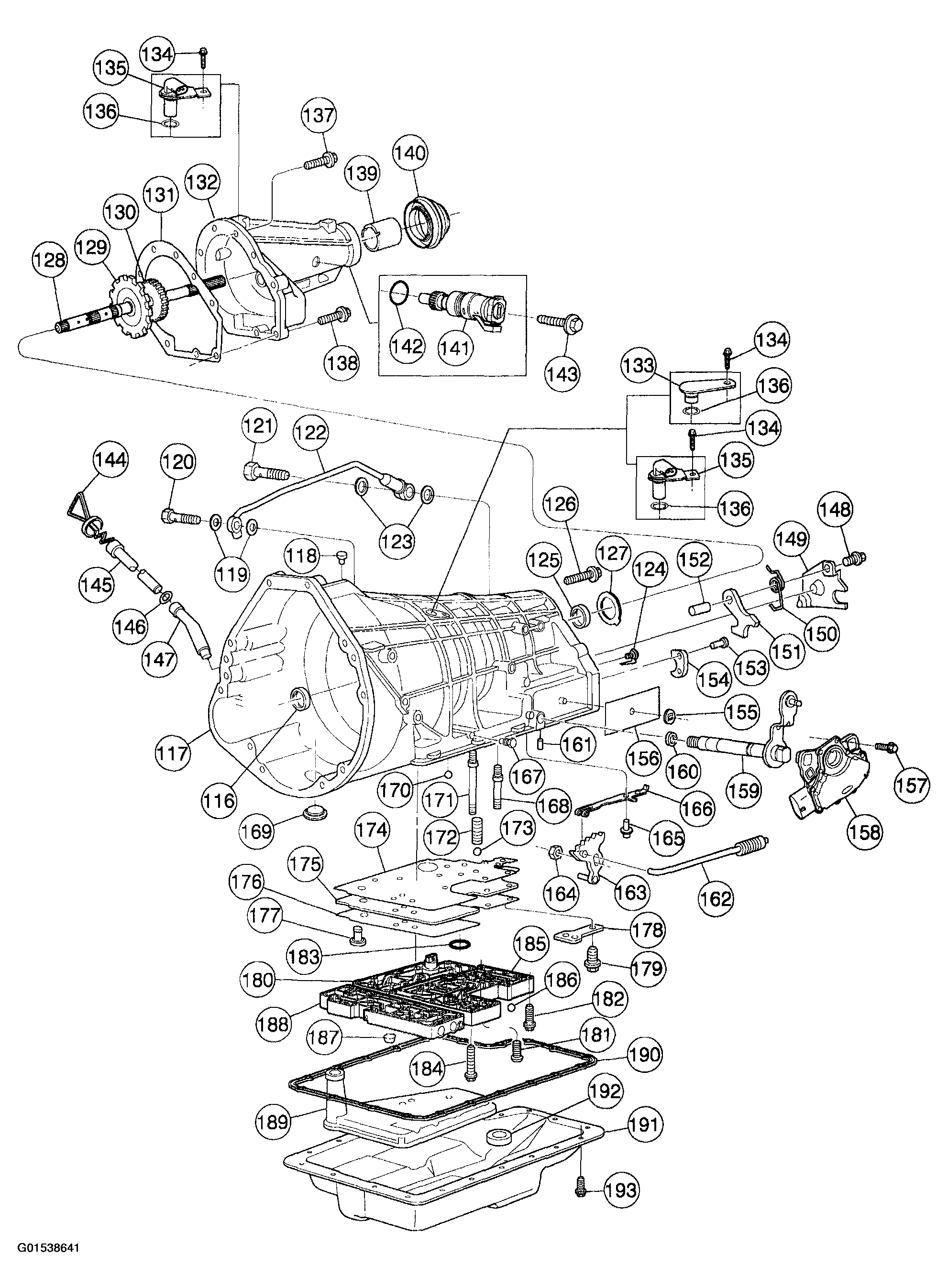

Fig 3: Disassembled View Of Transmission (3 Of 3)

Courtesy of FORD MOTOR CO.

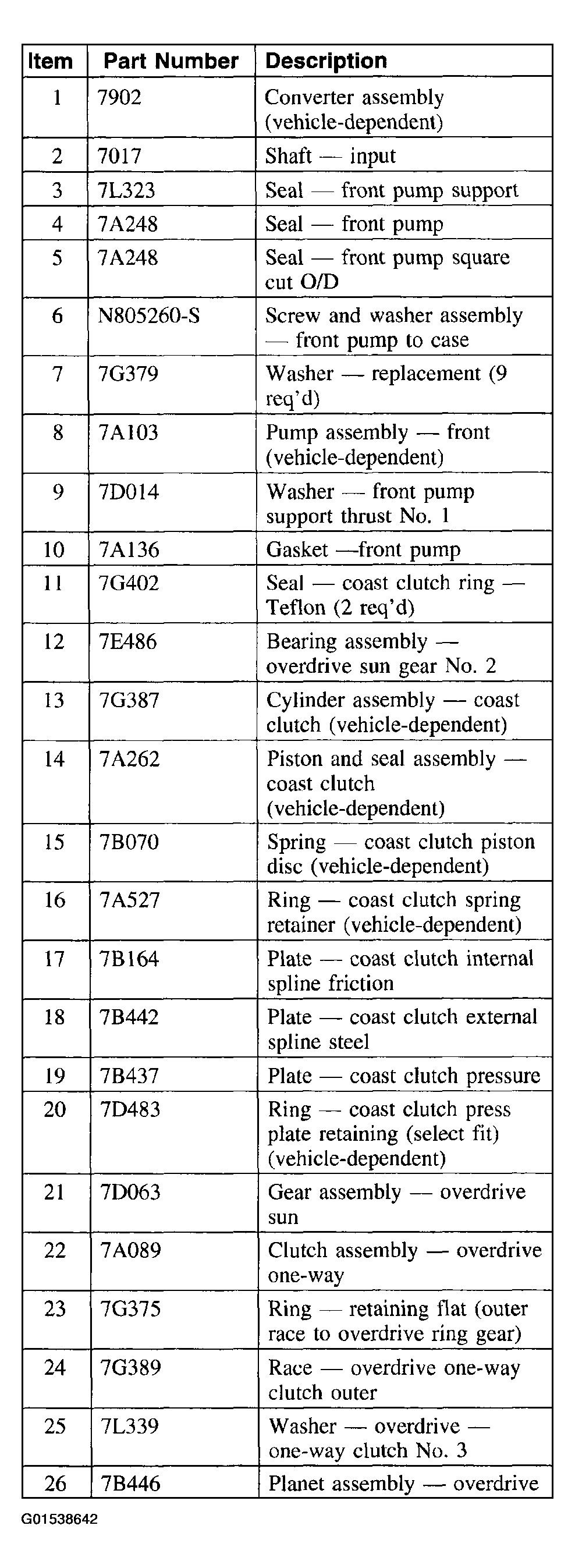

Fig 4: Transmission Component Identification (Items 1-26)

Courtesy of FORD MOTOR CO.

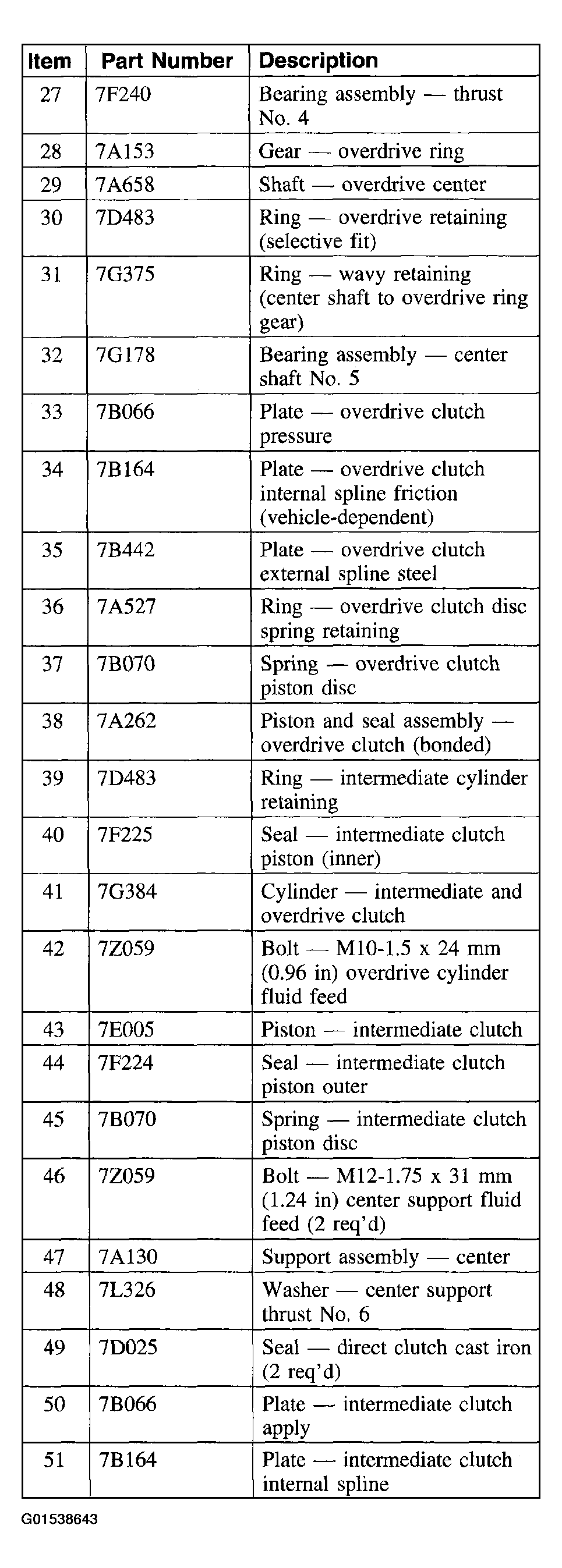

Fig 5: Transmission Component Identification (Items 27-51)

Courtesy of FORD MOTOR CO.

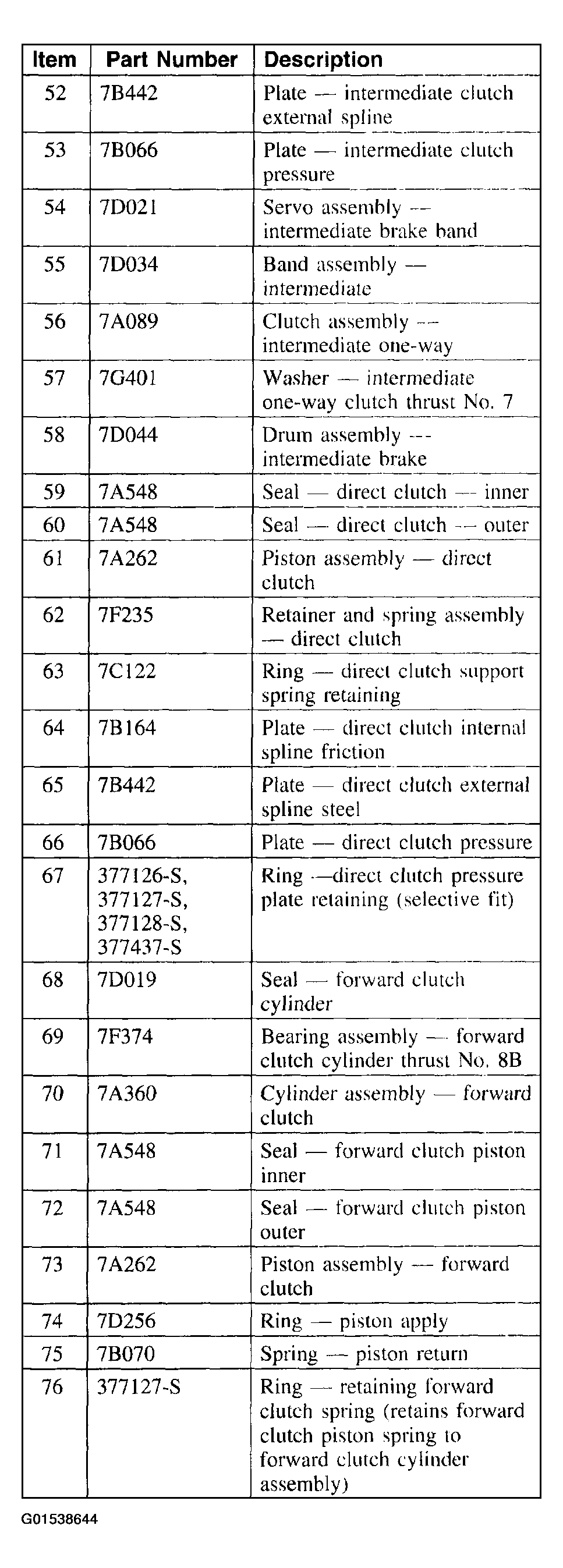

Fig 6: Transmission Component Identification (Items 52-76)

Courtesy of FORD MOTOR CO.

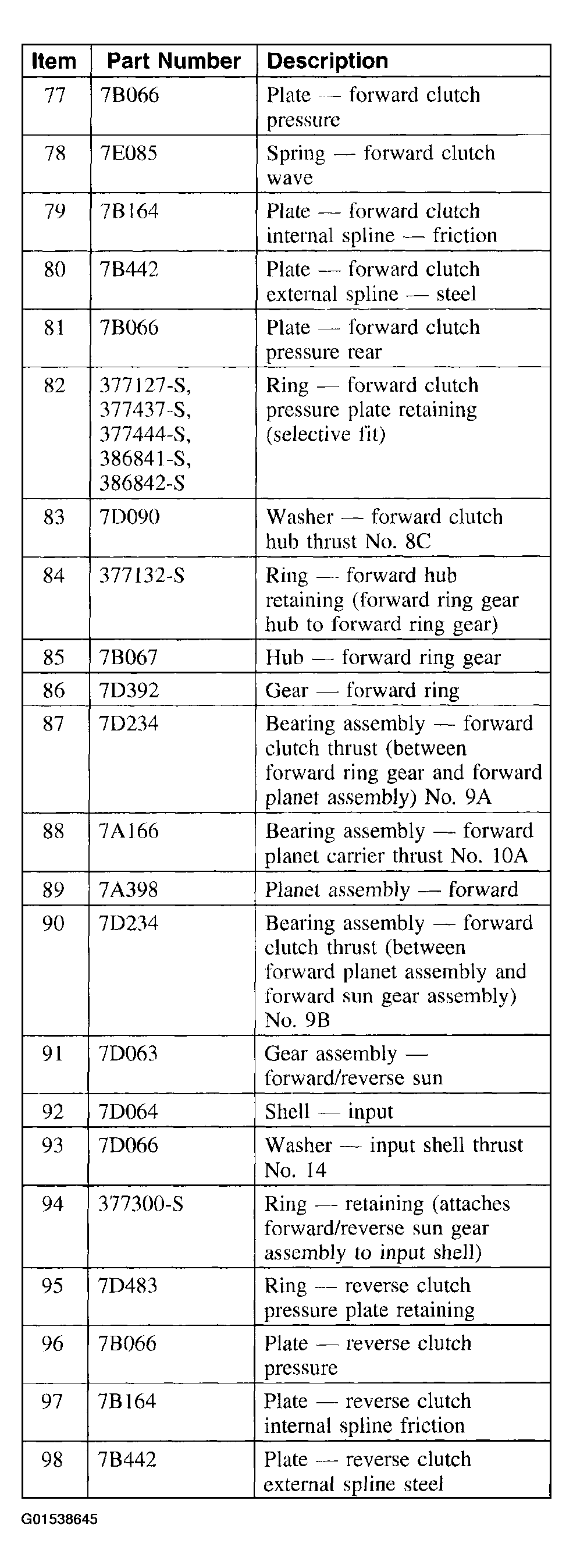

Fig 7: Transmission Component Identification (Items 77-98)

Courtesy of FORD MOTOR CO.

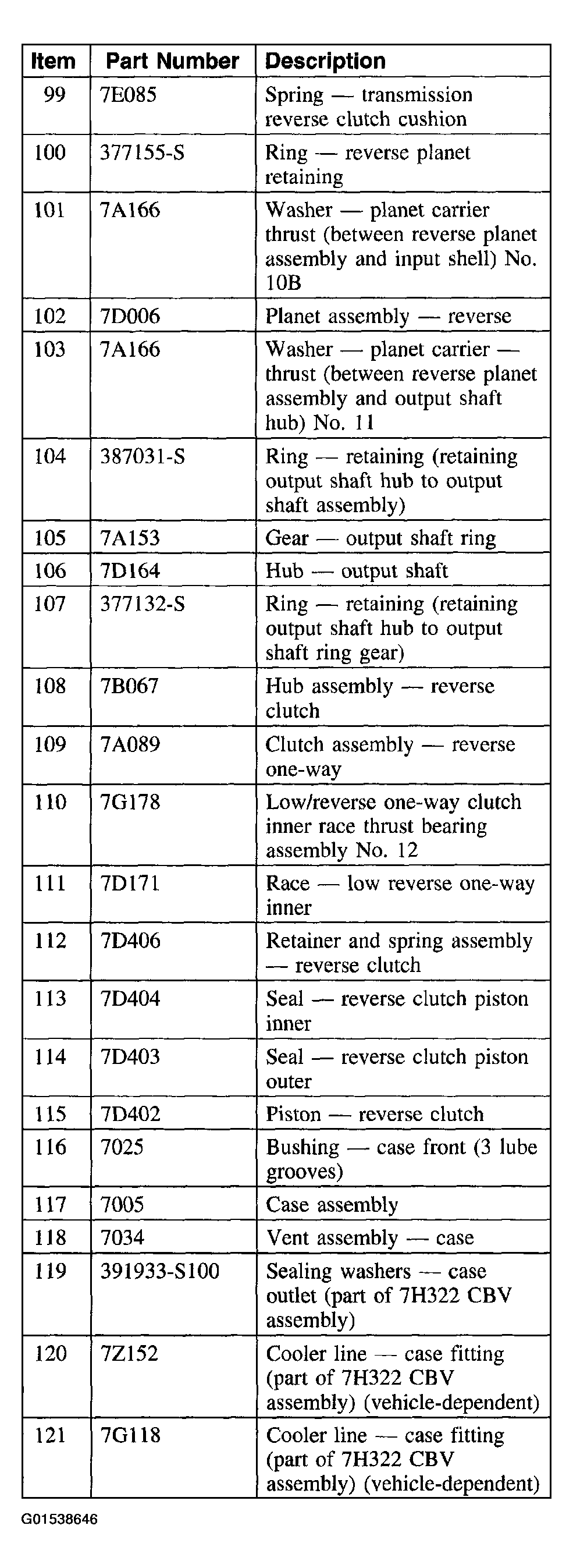

Fig 8: Transmission Component Identification (Items 99-121)

Courtesy of FORD MOTOR CO.

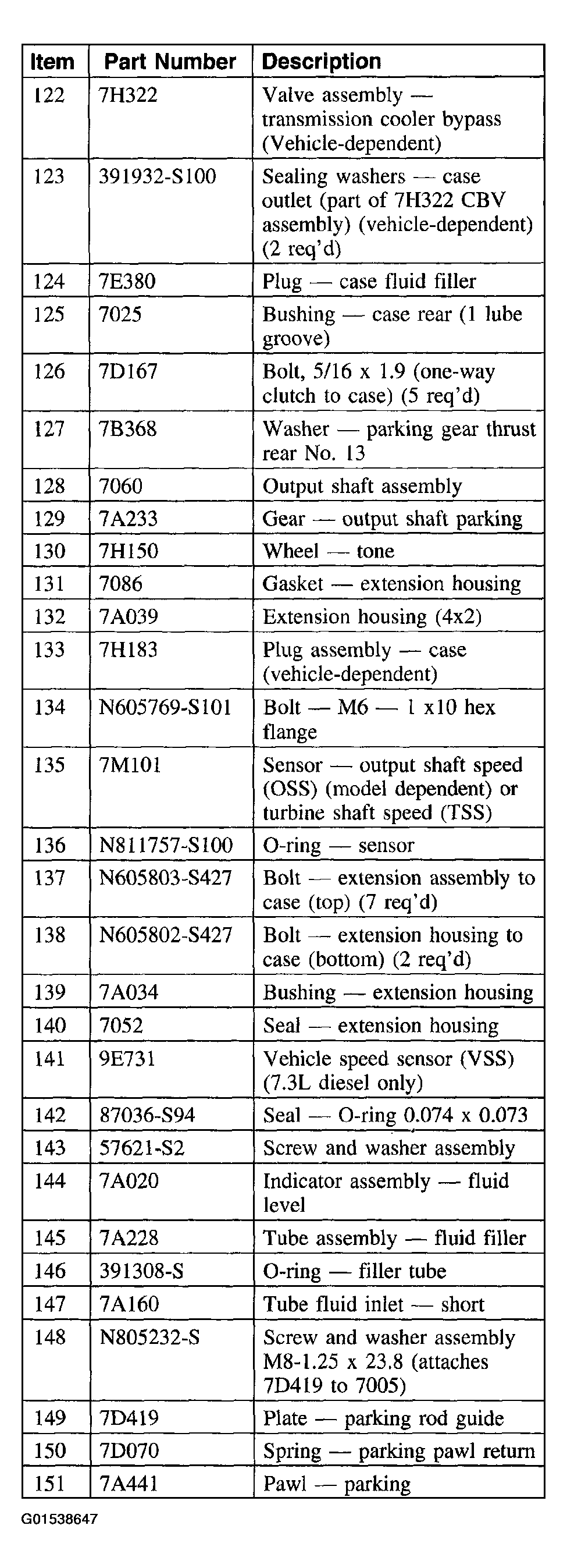

Fig 9: Transmission Component Identification (Items 122-151)

Courtesy of FORD MOTOR CO.

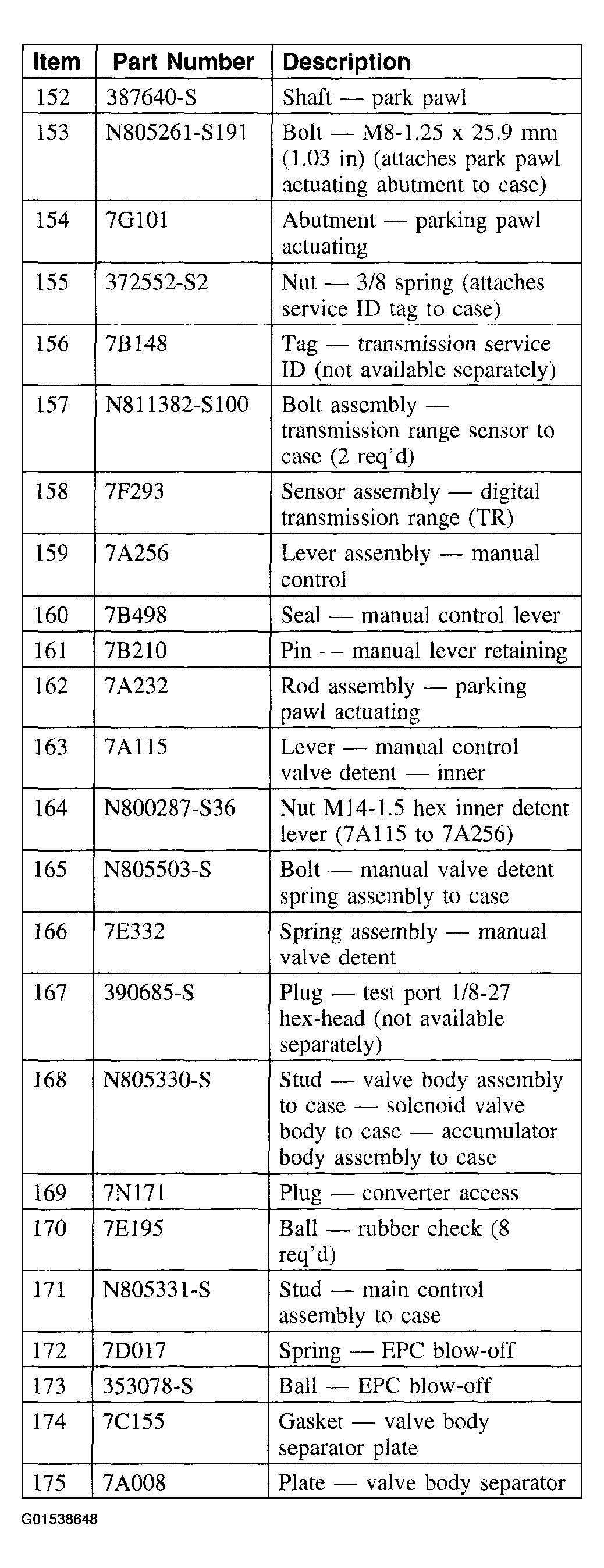

Fig 10: Transmission Component Identification (Items 152-175)

Courtesy of FORD MOTOR CO.

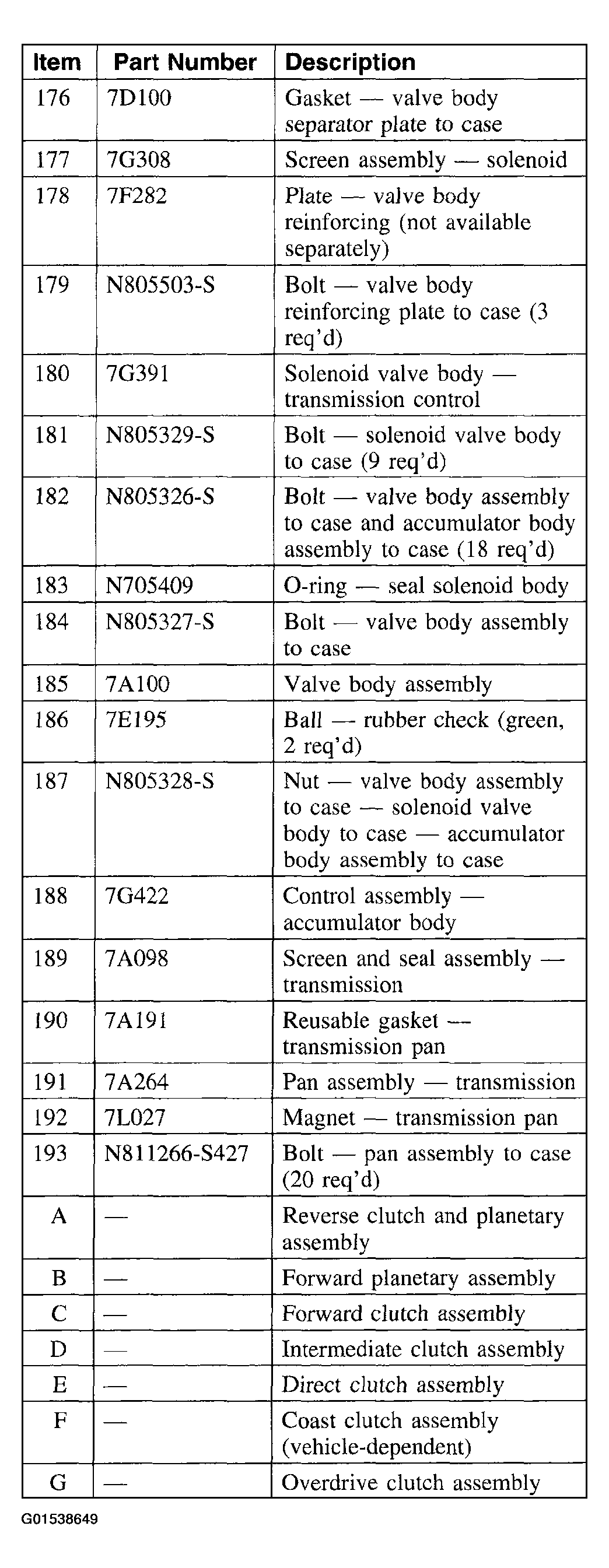

Fig 11: Transmission Component Identification (Items 176-193/A-G)
