Torque Specifications

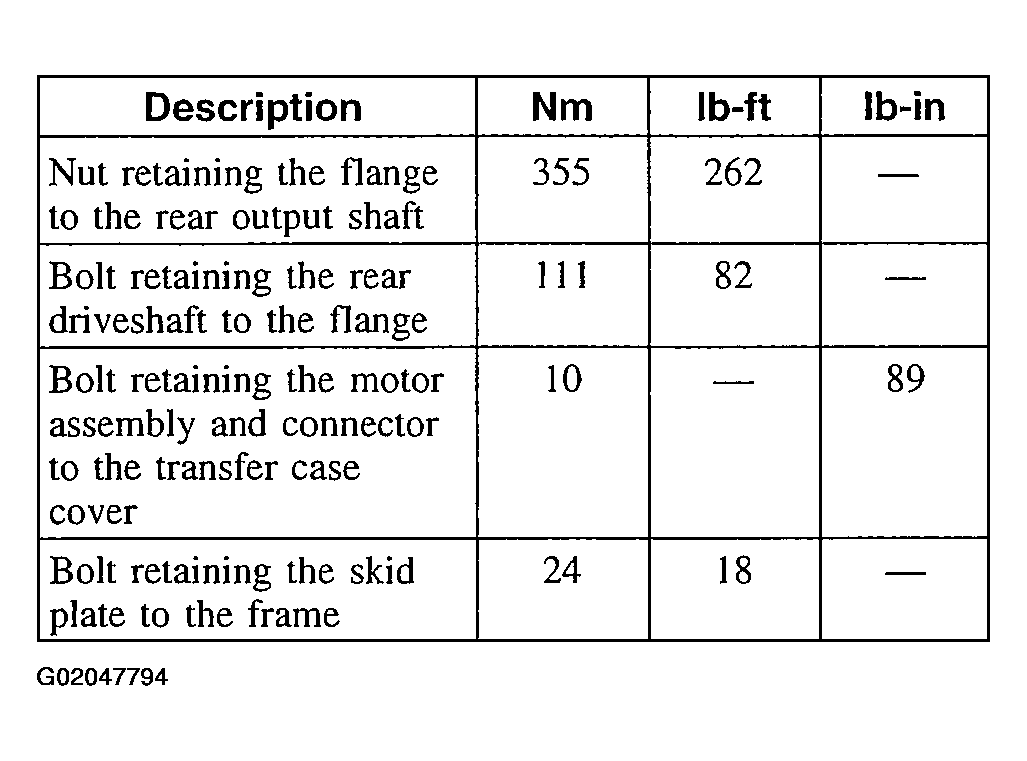

Fig 1: Transfer Case Torque Specifications (1 Of 2)

G02047794

Courtesy of FORD MOTOR CO.

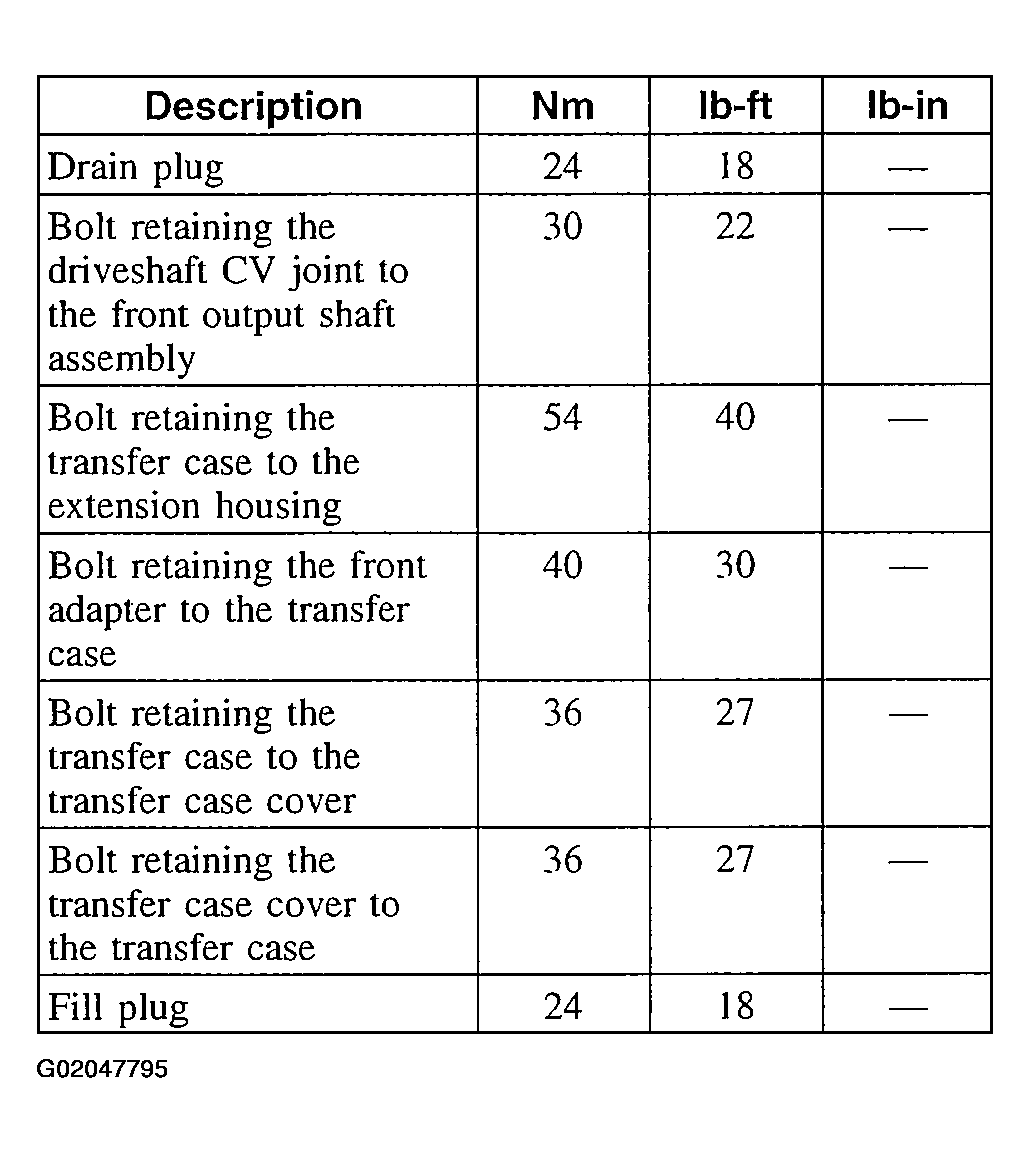

Fig 2: Transfer Case Torque Specifications (2 Of 2)

G02047795

Courtesy of FORD MOTOR CO.
