Pinpoint Test A: No Communication With The Module - Anti-Lock Brake Control Module

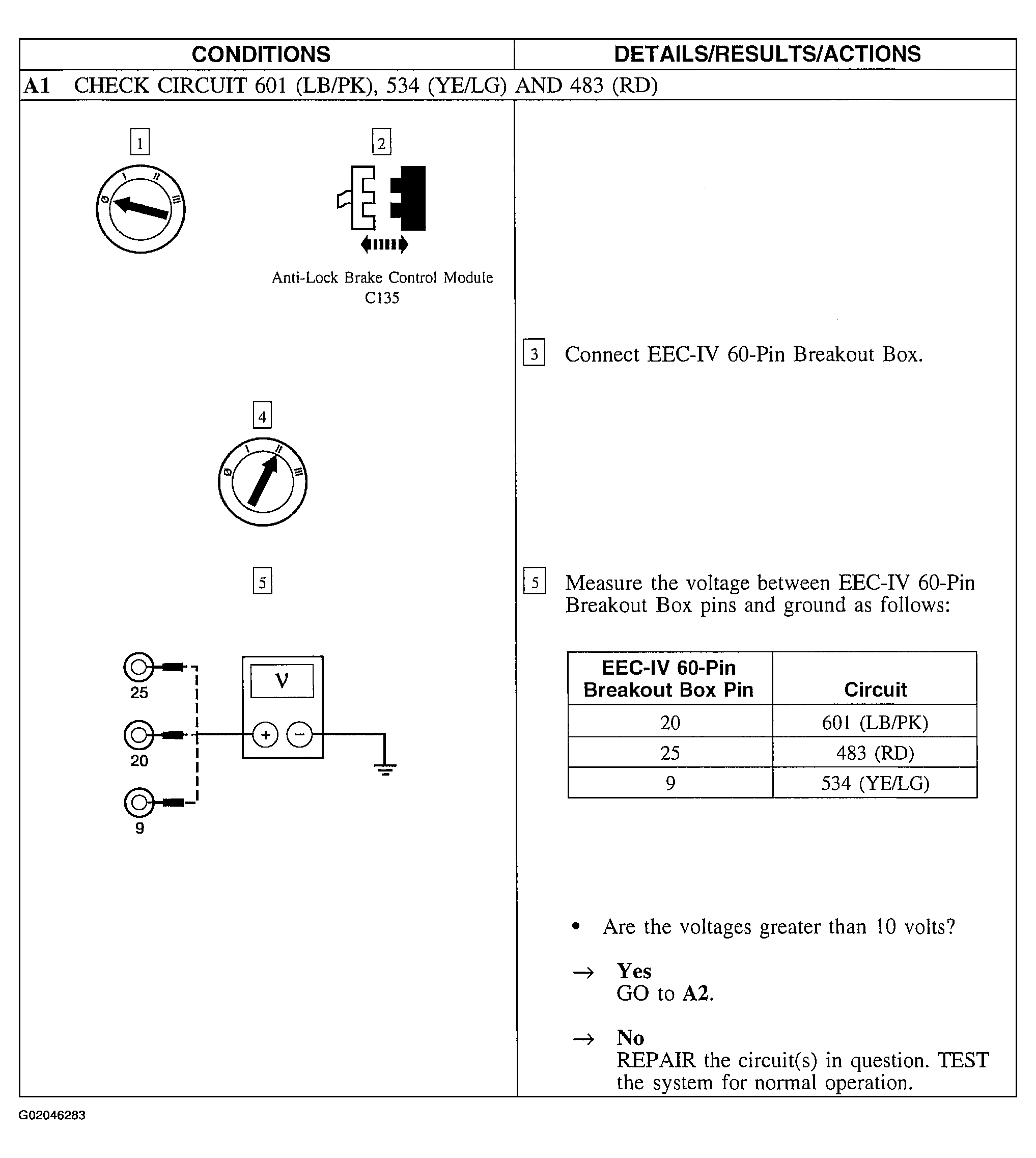

Fig 1: Pinpoint Test A: No Communication With The Module - Anti-Lock Brake Control Module - A1

Courtesy of FORD MOTOR CO.

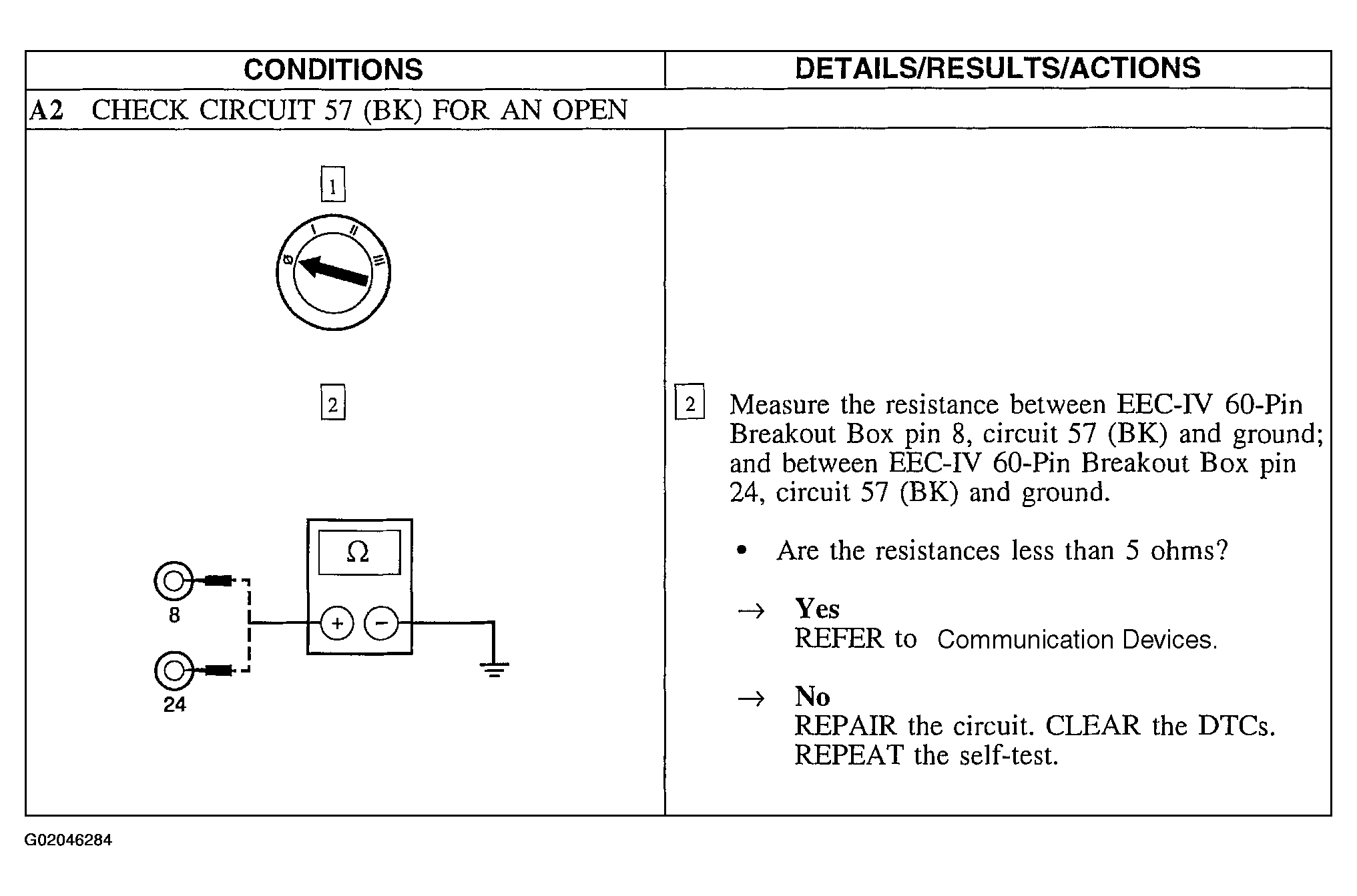

Fig 2: Pinpoint Test A: No Communication With The Module - Anti-Lock Brake Control Module - A2

Courtesy of FORD MOTOR CO.
