Torque Specifications

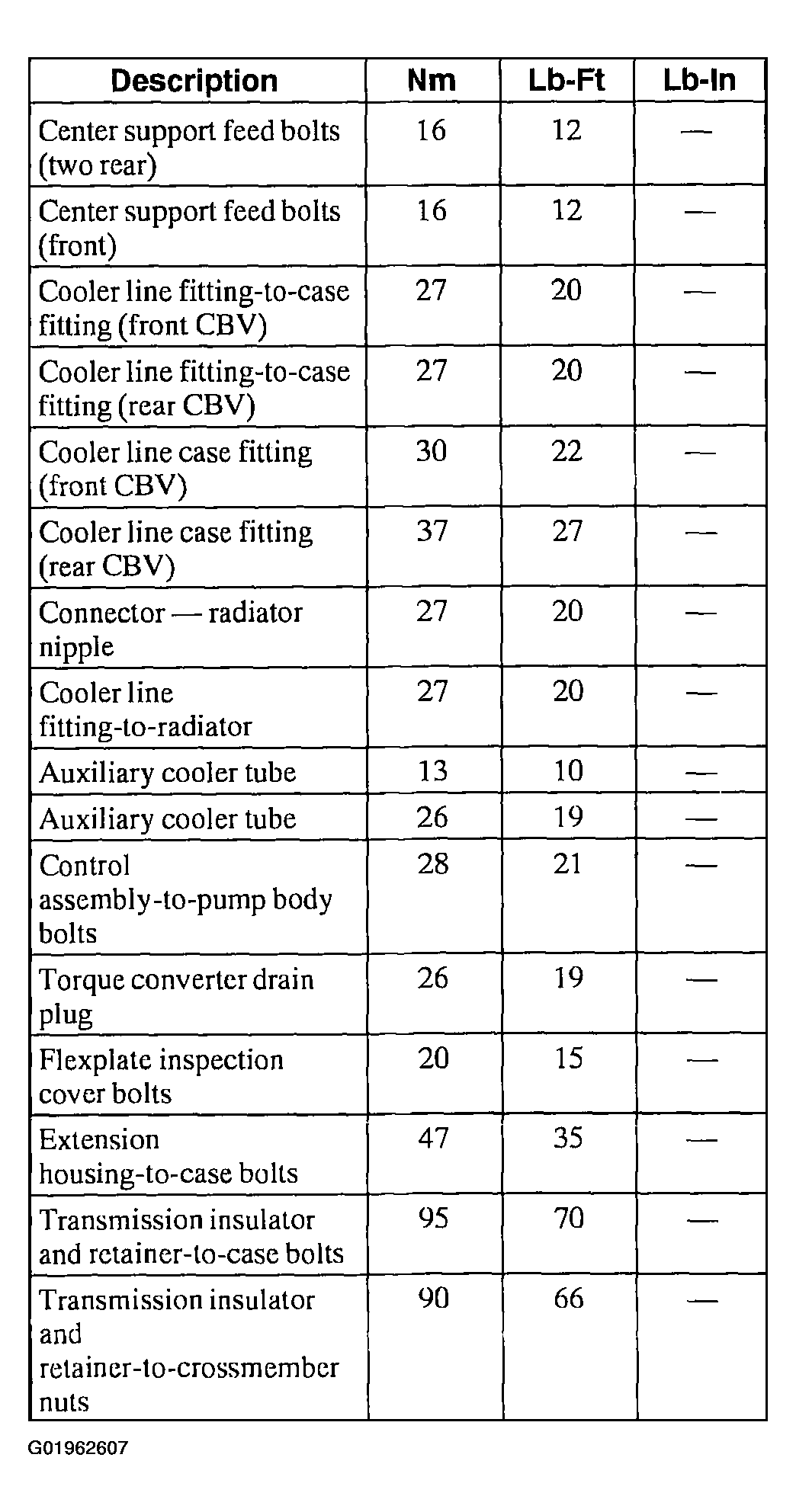

Fig 1: Automatic Transmission Torque Specifications (1 Of 4)
G01962607Courtesy of FORD MOTOR CO.

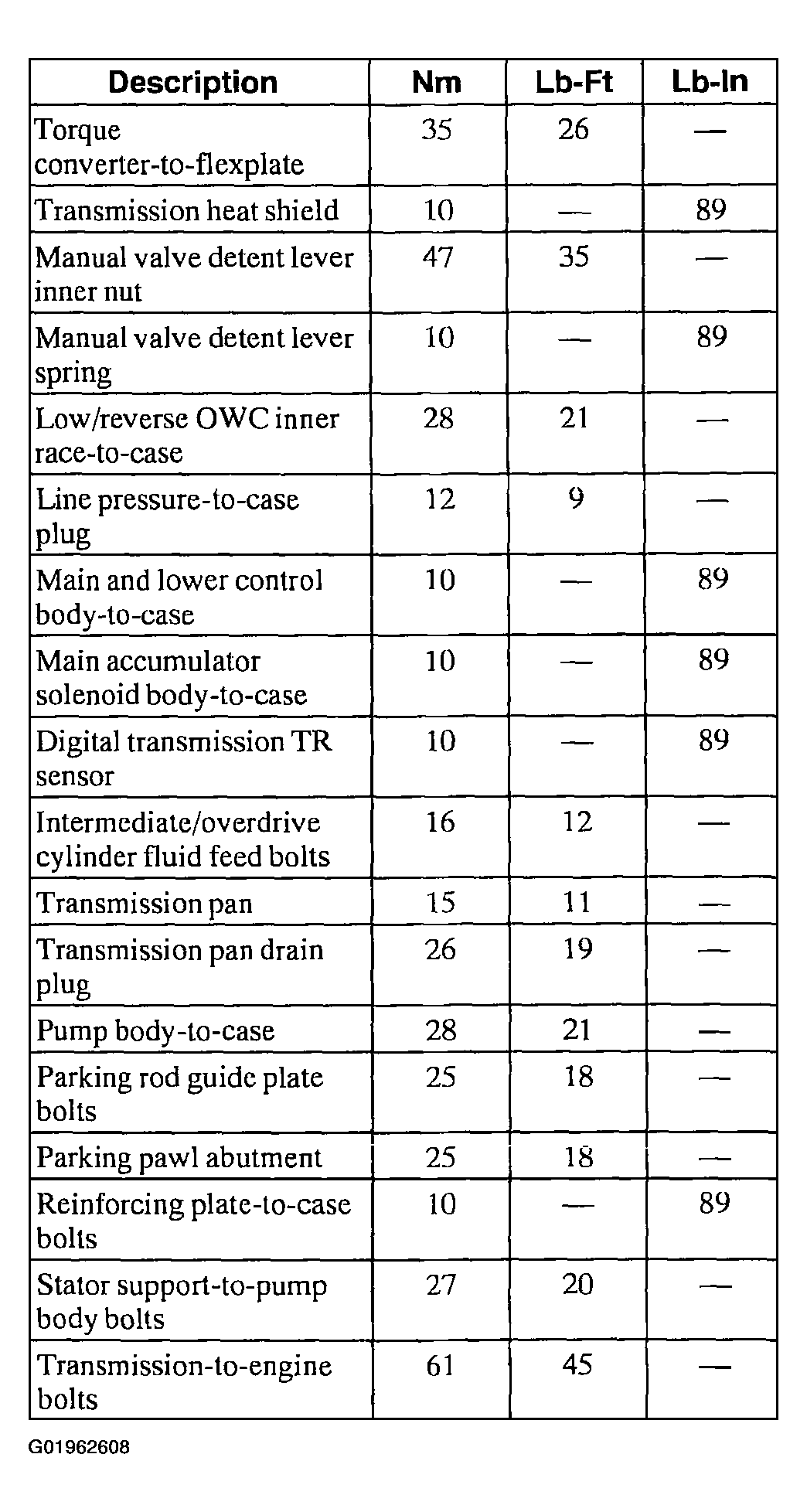

Fig 2: Automatic Transmission Torque Specifications (2 Of 4)
G01962608Courtesy of FORD MOTOR CO.

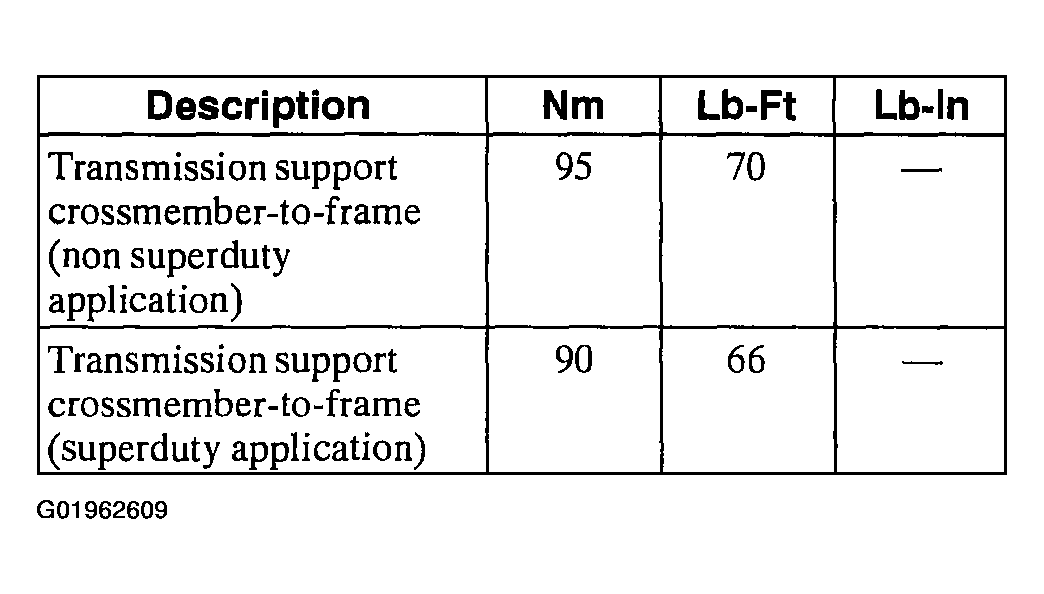

Fig 3: Automatic Transmission Torque Specifications (3 Of 4)
G01962609Courtesy of FORD MOTOR CO.

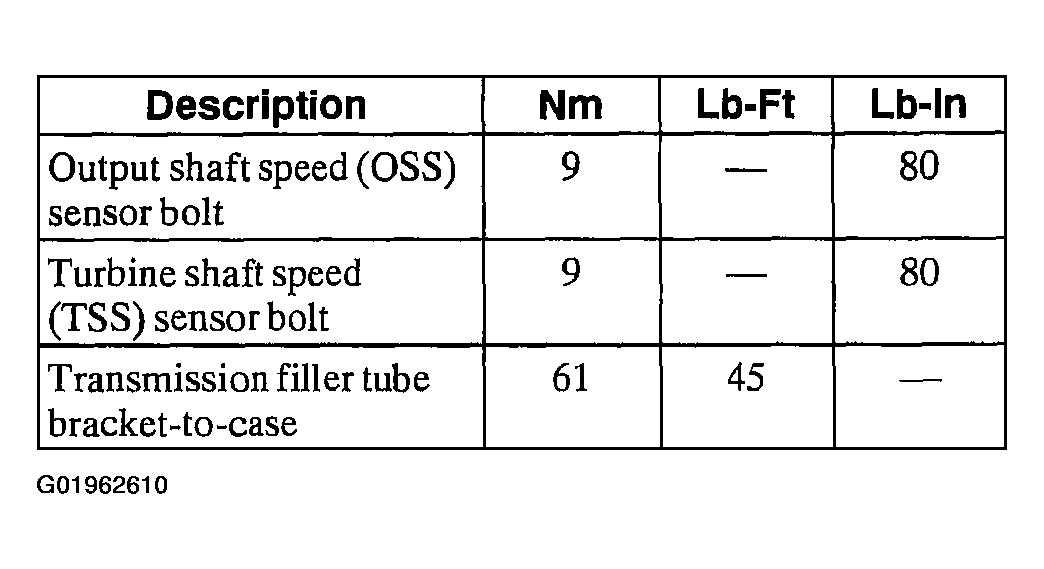

Fig 4: Automatic Transmission Torque Specifications (4 Of 4)
G01962610Courtesy of FORD MOTOR CO.
