Park System: Installation

    NOTE: If installing a new park gear, refer to OUTPUT SHAFT - Check Diesel Engine  or OUTPUT SHAFT - Check Gas Engine .
  1. Install the park pawl shaft.
    1. Install the park pawl shaft.
    2. Install the park pawl.
    3. Install the park pawl return spring.

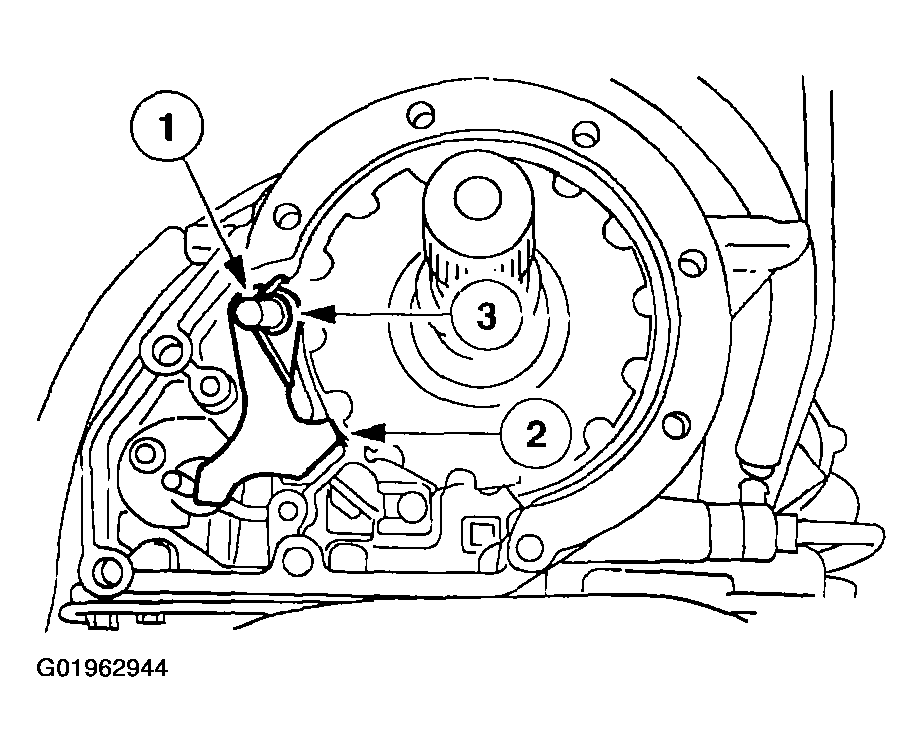

      Fig 1: Installing Park Pawl Shaft
      G01962944Courtesy of FORD MOTOR CO.
  2. Install the parking rod guide plate.
    1. Install the parking rod guide plate.
    2. Install the bolts.

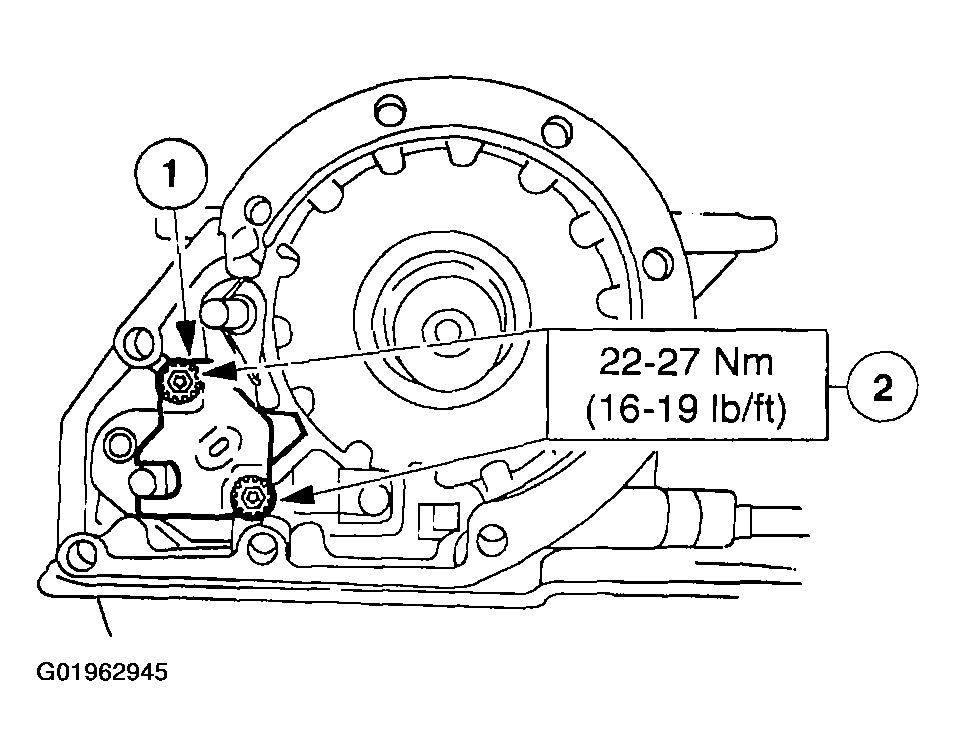

      Fig 2: Installing Parking Rod Guide Plate
      G01962945Courtesy of FORD MOTOR CO.
  3. Install the extension housing gasket and the extension housing.
