Main Control Valve Body - Disassembly And Assembly: Assembly

Install the control valves and springs from the lower main control valve body.

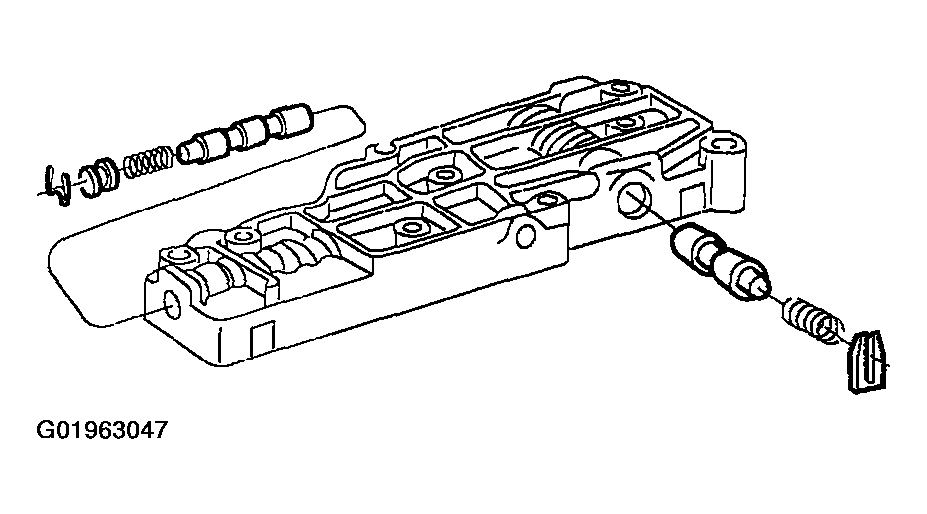

Fig 1: Installing Control Valves And Springs From Lower Main Control Valve Body
Courtesy of FORD MOTOR CO.
Install the control valves and springs from the upper main control valve body.

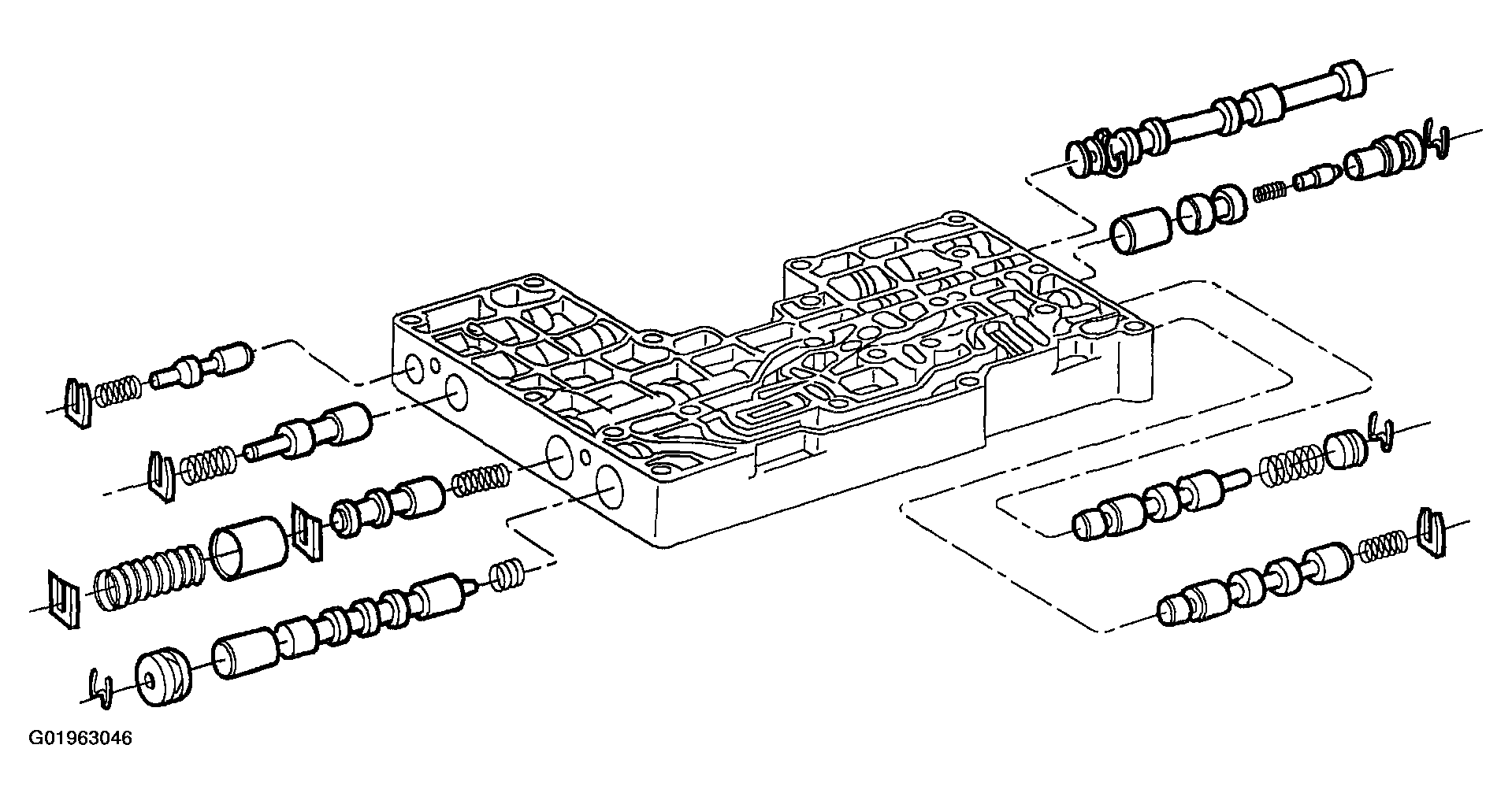

Fig 2: Installing Control Valves And Springs From Upper Main Control Valve Body
Courtesy of FORD MOTOR CO.
Install the check ball.

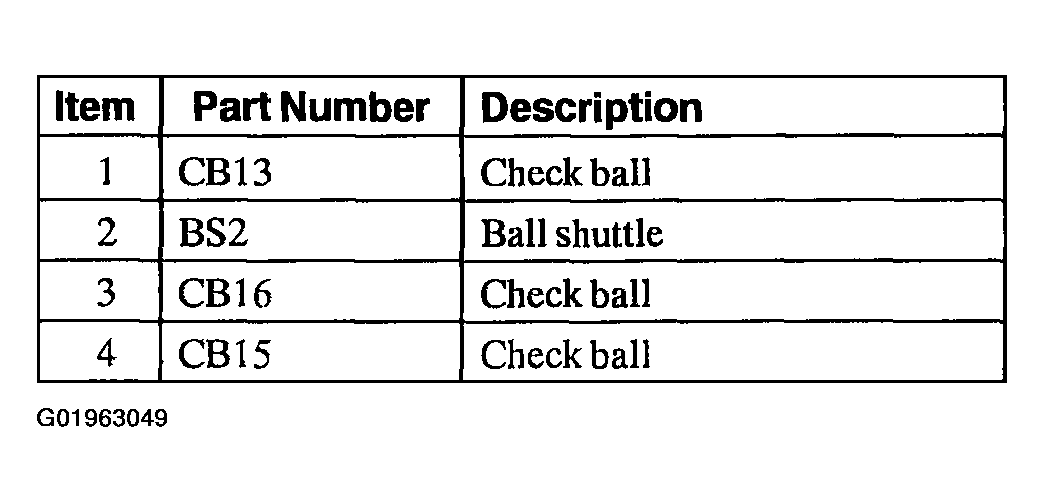

Fig 3: Check Ball Description Chart
Courtesy of FORD MOTOR CO.

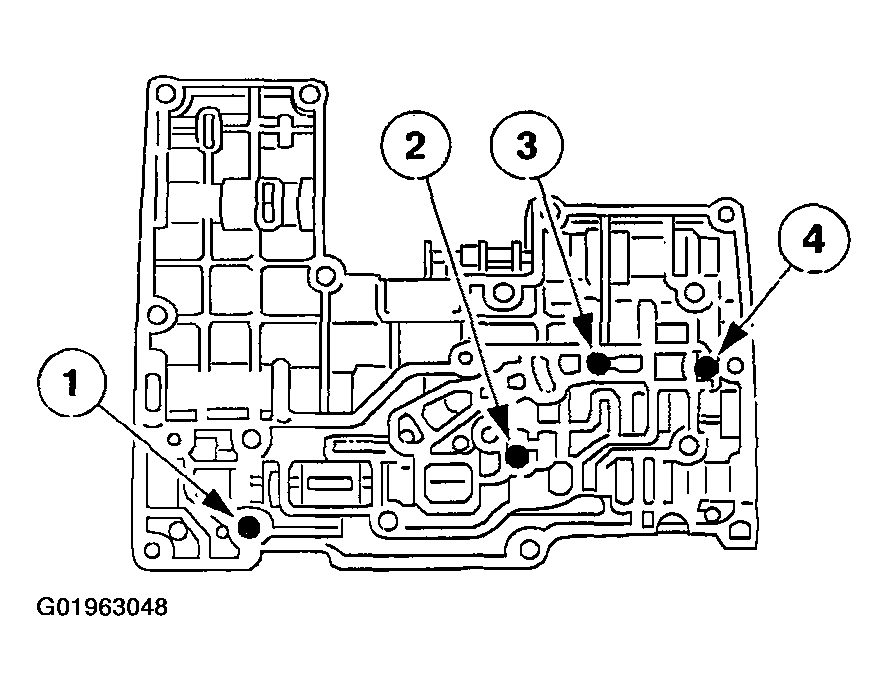

Fig 4: Installing Check Ball
Courtesy of FORD MOTOR CO.
Using the special tools, install the lower control valve body.
1. Install the special tools.
2. Install the control valve body separator plate.
3. Install the lower control valve body.
4. Install the bolts.

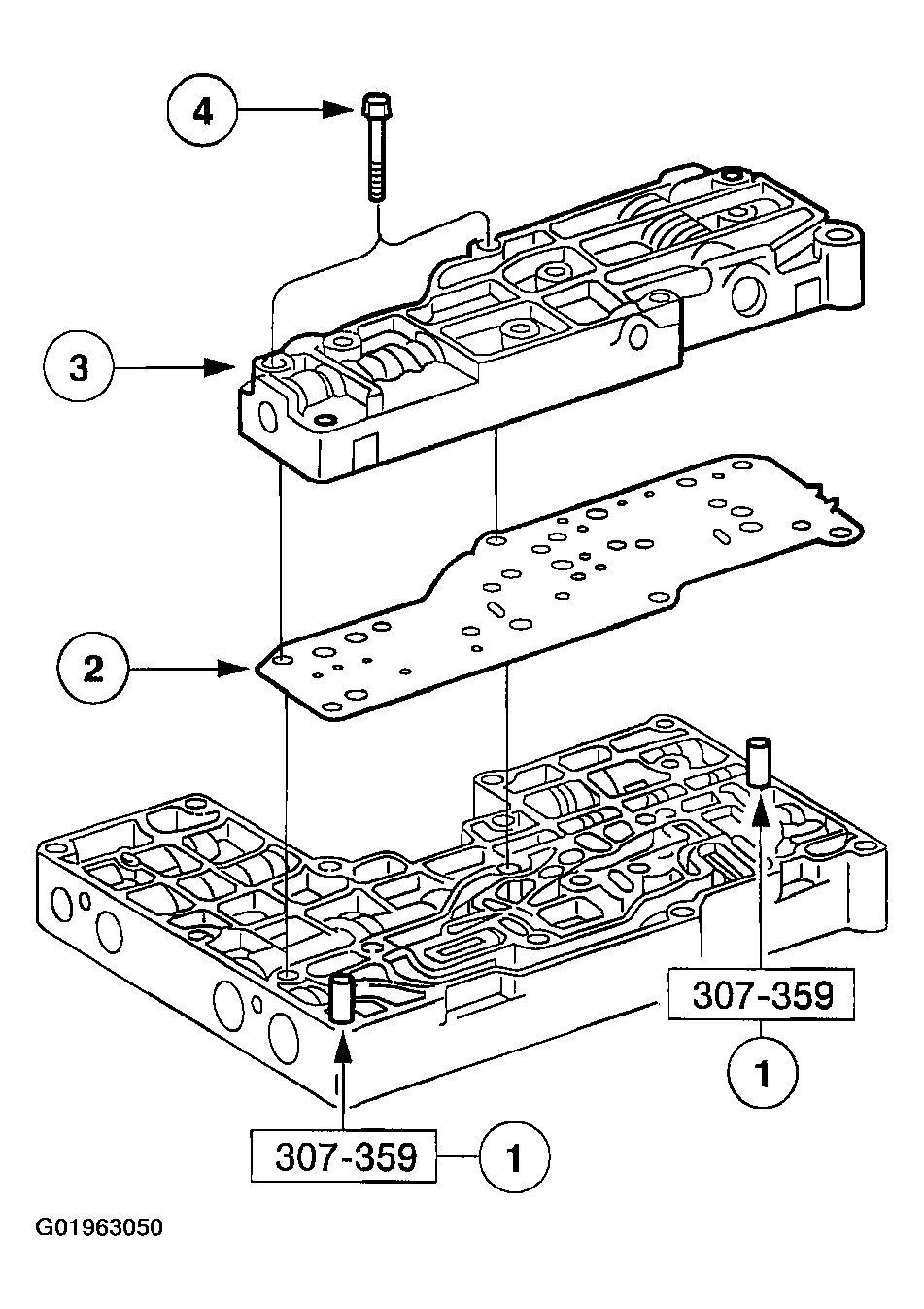

  Fig 5: Installing Lower Control Valve Body
  Courtesy of FORD MOTOR CO.
