Intermediate/Overdrive Cylinder Assembly, Disassembled View

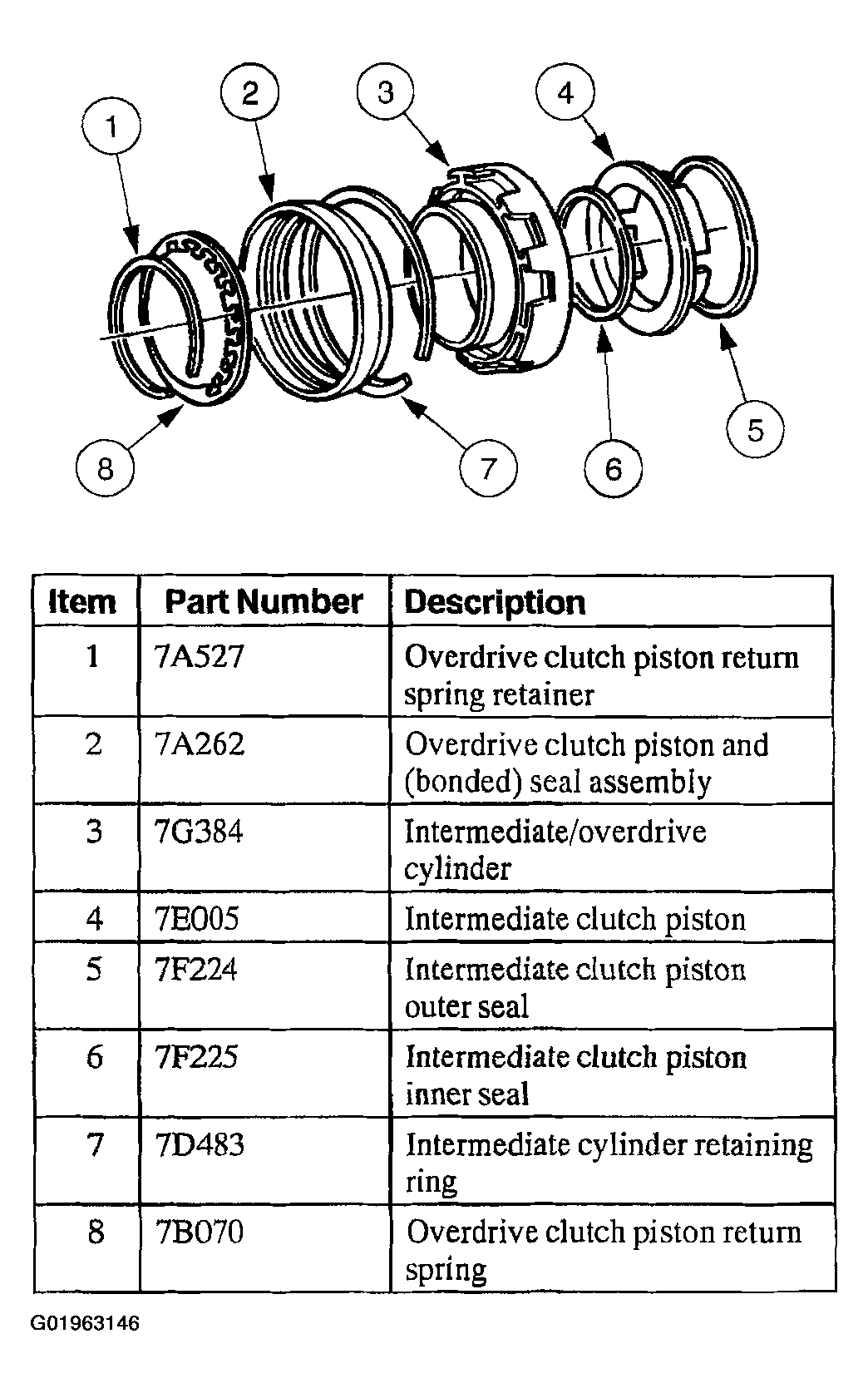

Fig 1: Exploded View Of Intermediate/Overdrive Cylinder Assembly

G01963146

Courtesy of FORD MOTOR CO.
