Front Case Bushings: Disassembly

  1. Using the special tools, remove the front case bushing.

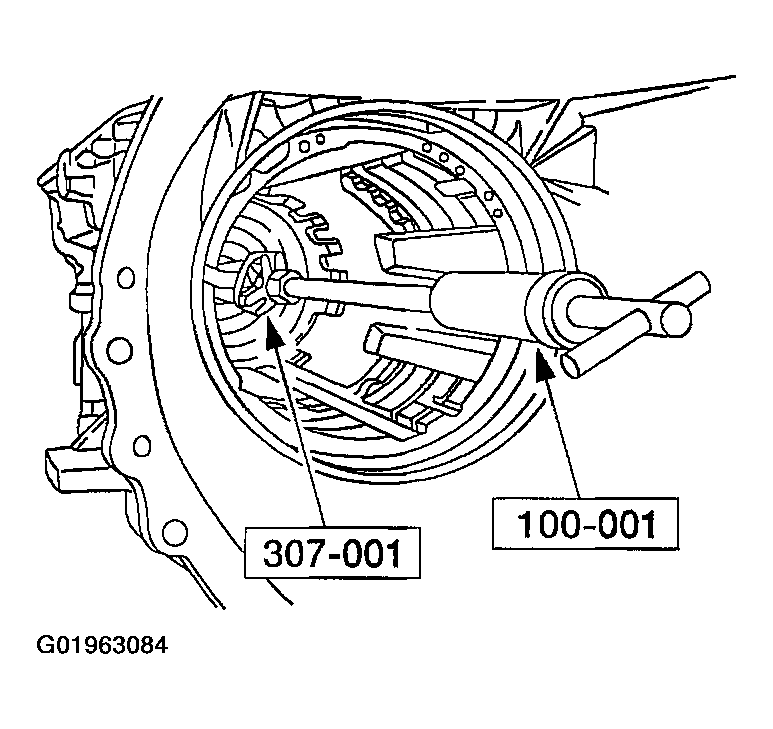

    Fig 1: Removing Front Case Bushing
    G01963084Courtesy of FORD MOTOR CO.
