Disassembled Views

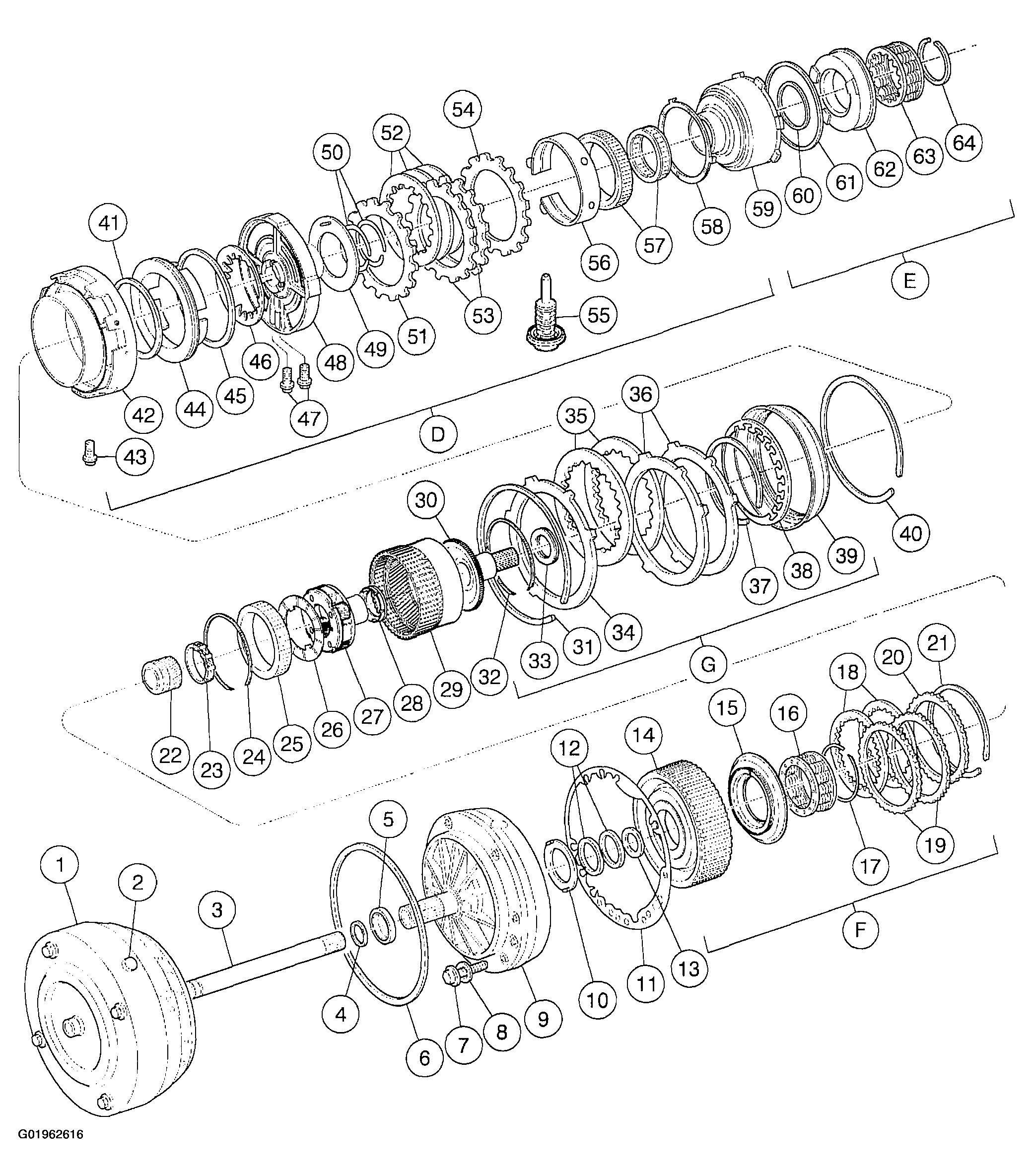

Fig 1: Disassembling View Of Transmission System (1 Of 3)

Courtesy of FORD MOTOR CO.

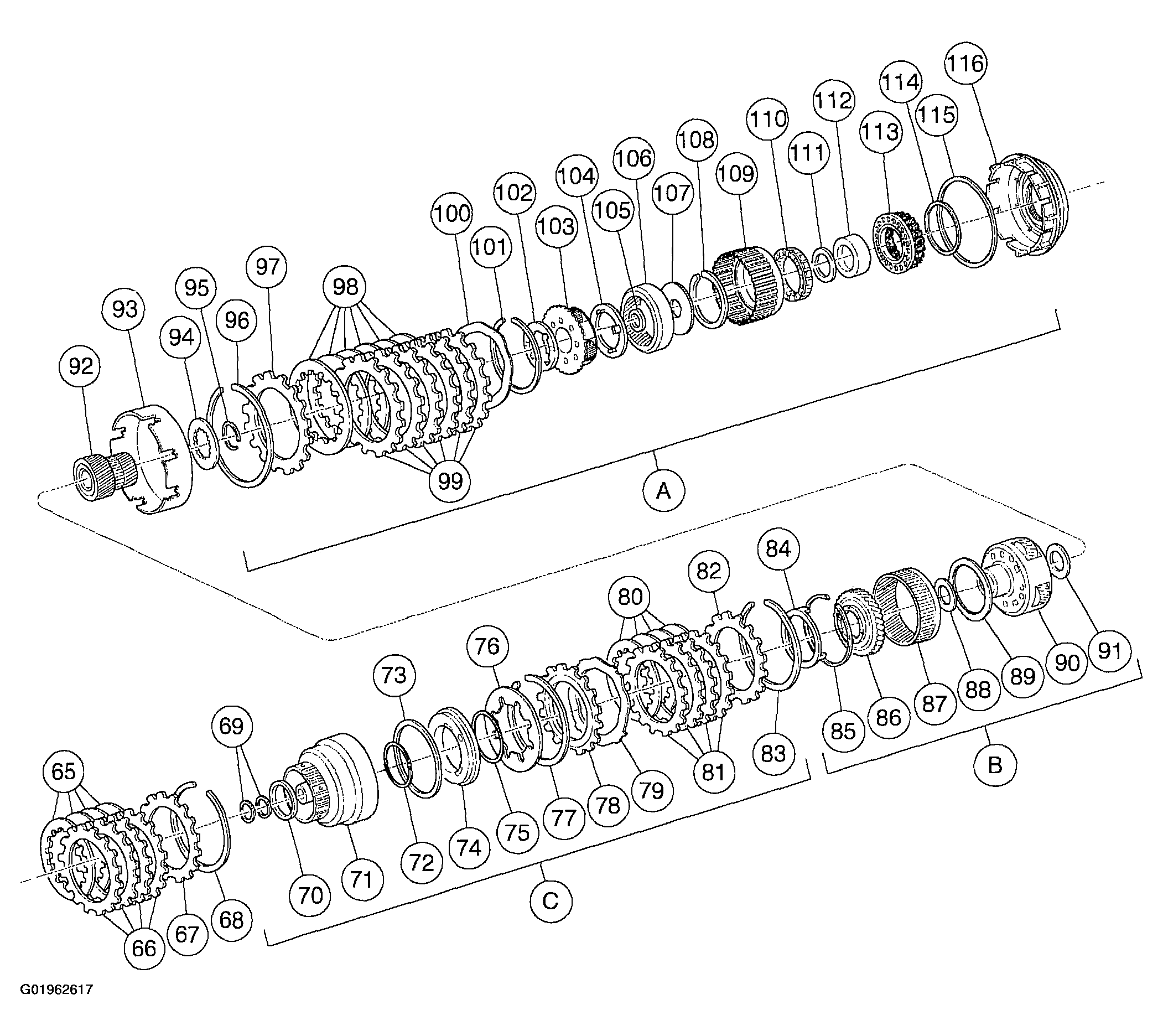

Fig 2: Disassembling View Of Transmission System (2 Of 3)

Courtesy of FORD MOTOR CO.

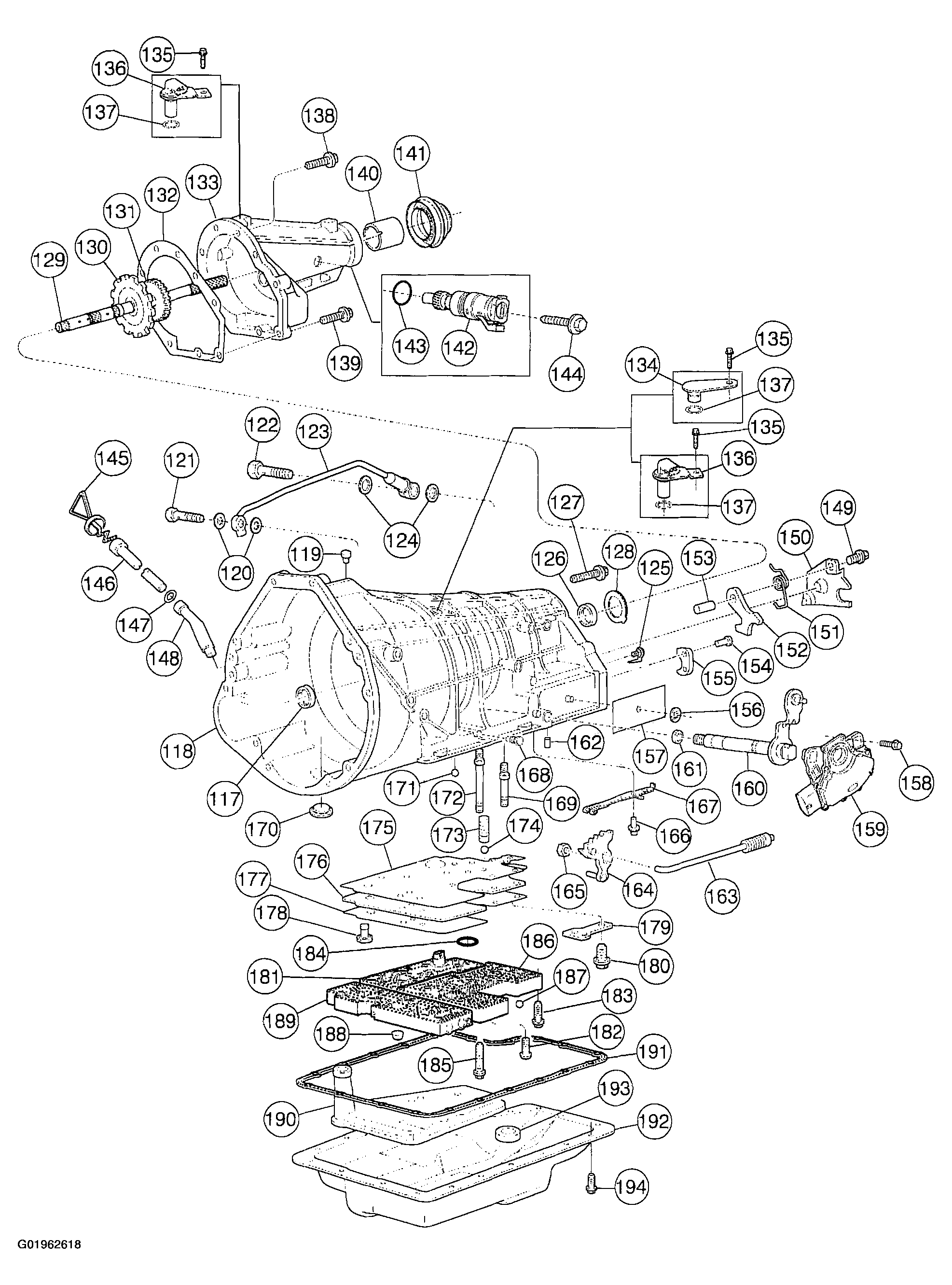

Fig 3: Disassembling View Of Transmission System (3 Of 3)

Courtesy of FORD MOTOR CO.

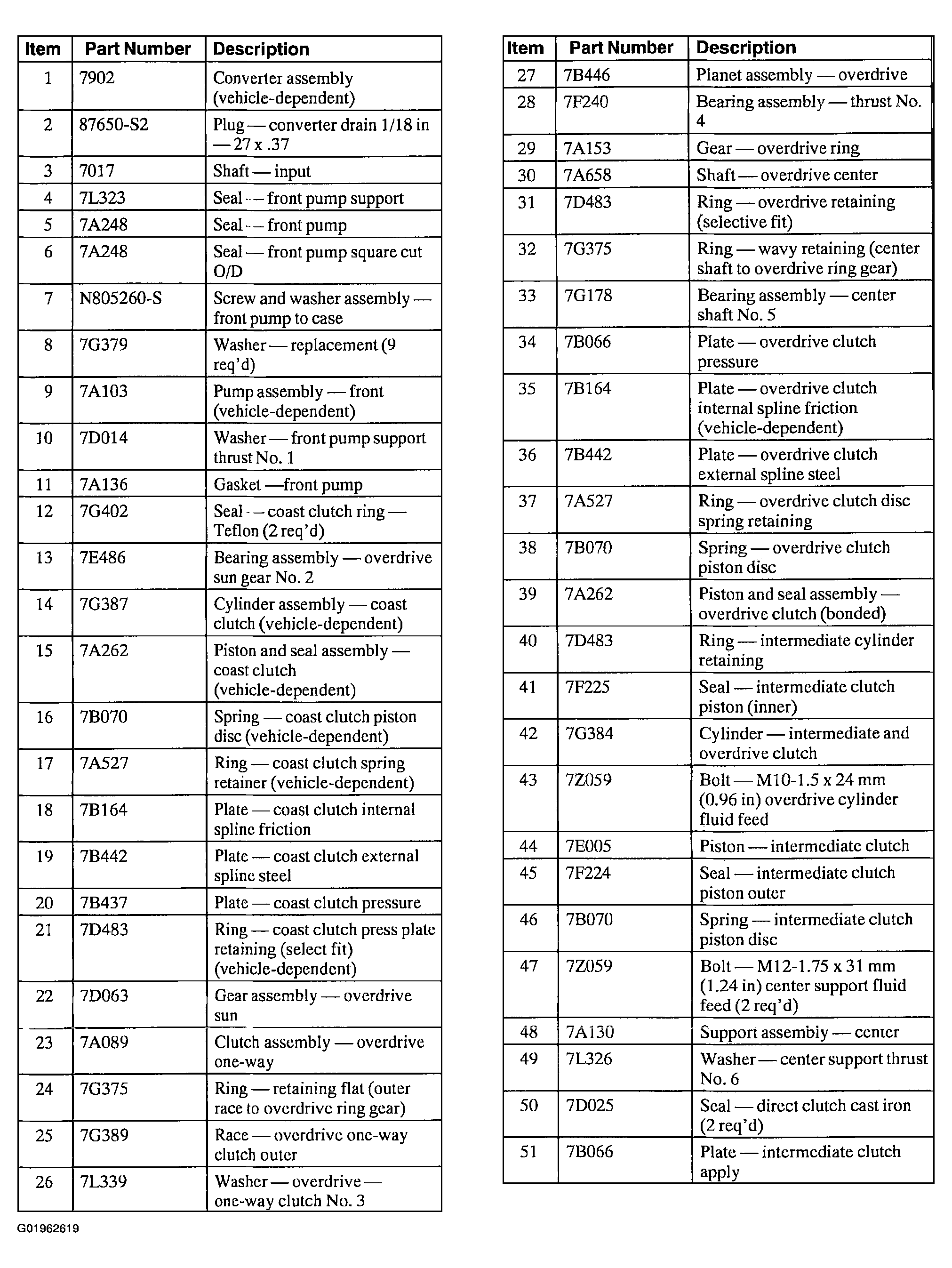

Fig 4: Transmission Item Description Chart Legend (Items 1-51)

Courtesy of FORD MOTOR CO.

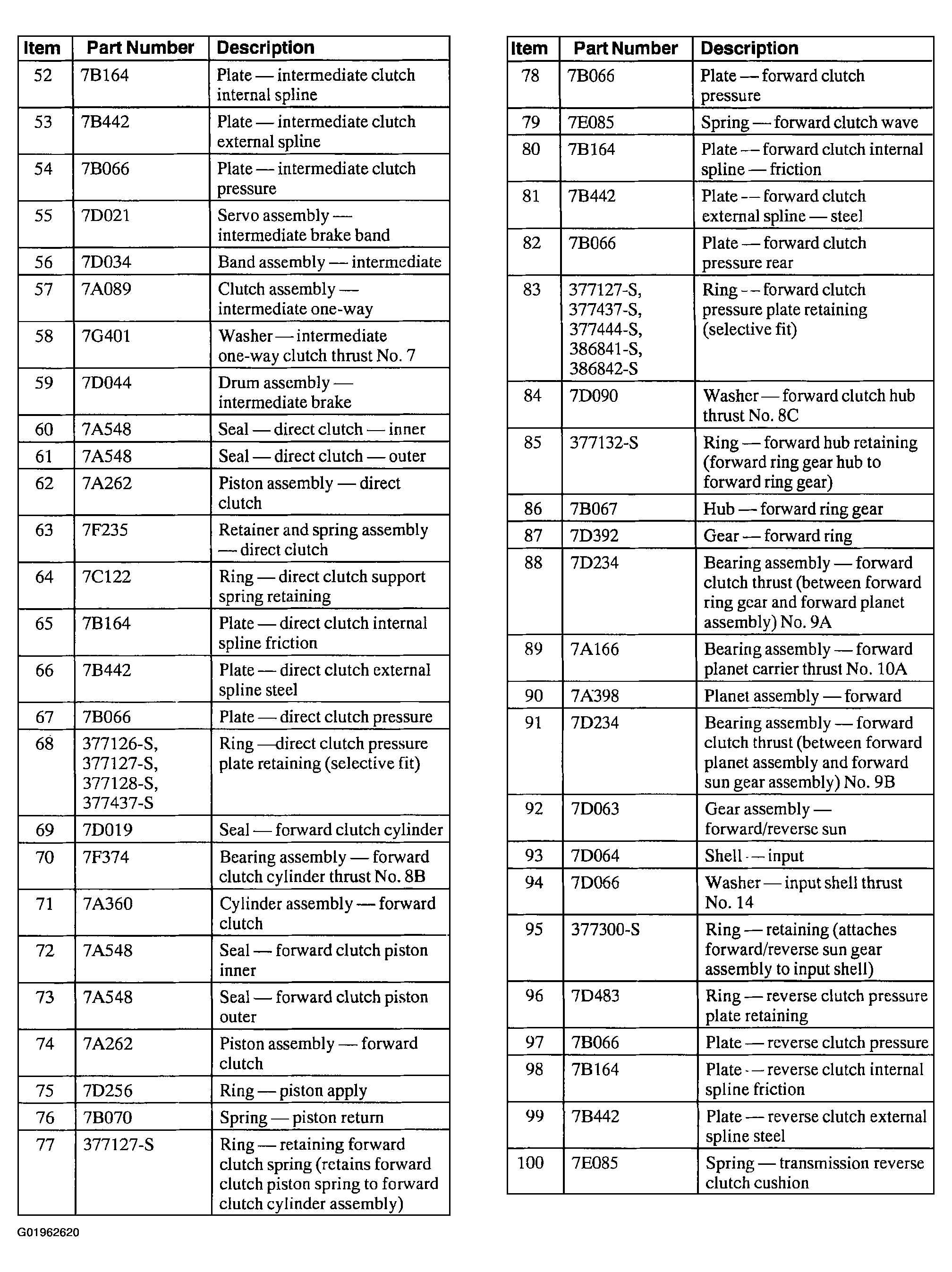

Fig 5: Transmission Item Description Chart Legend (Items 52-100)

Courtesy of FORD MOTOR CO.

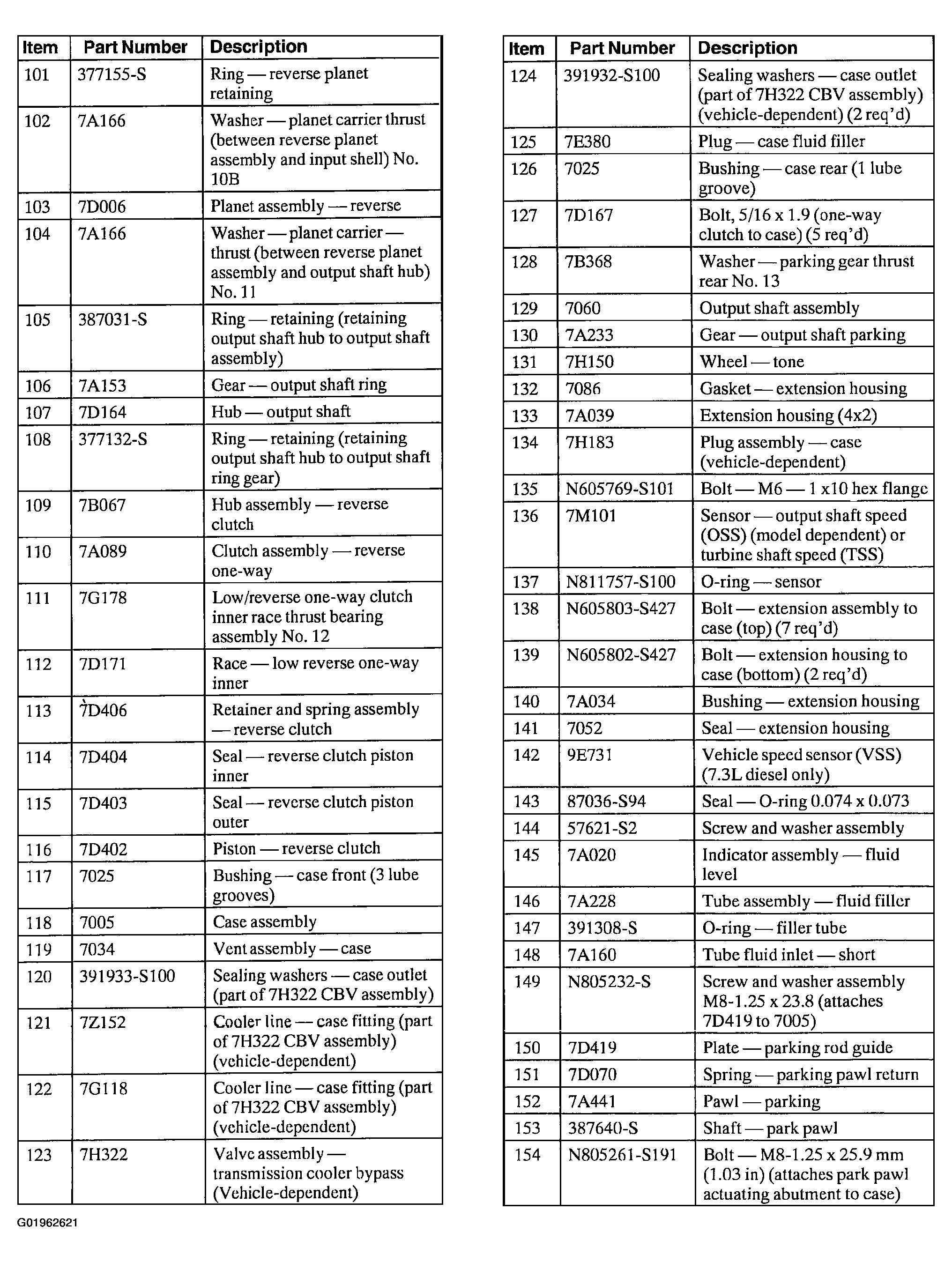

Fig 6: Transmission Item Description Chart Legend (Items 101-154)

Courtesy of FORD MOTOR CO.

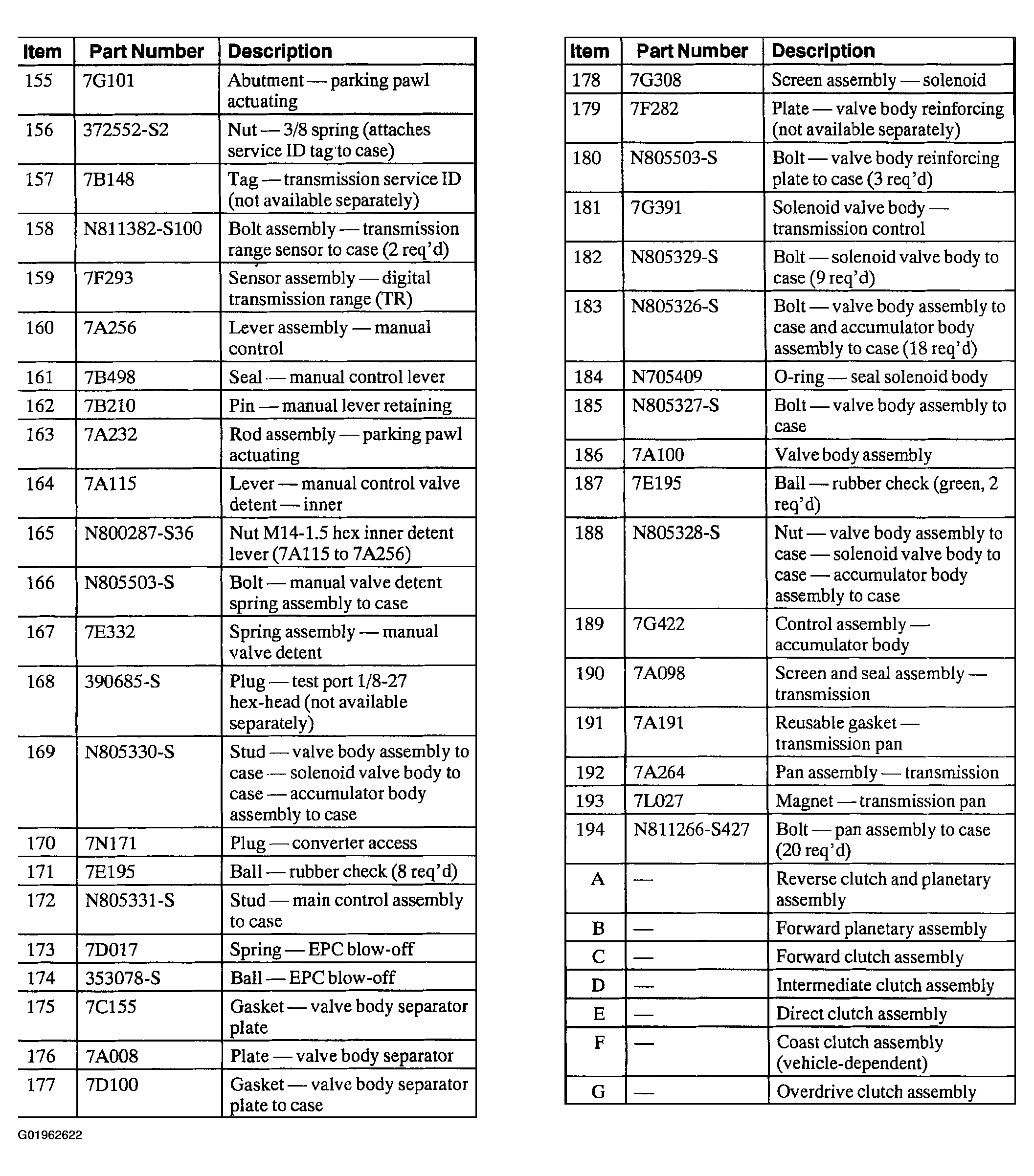

Fig 7: Transmission Item Description Chart Legend (Items 155-194;A-G)

Courtesy of FORD MOTOR CO.
