Inspection & Verification
- Verify the customer concern by operating the transmission external control.

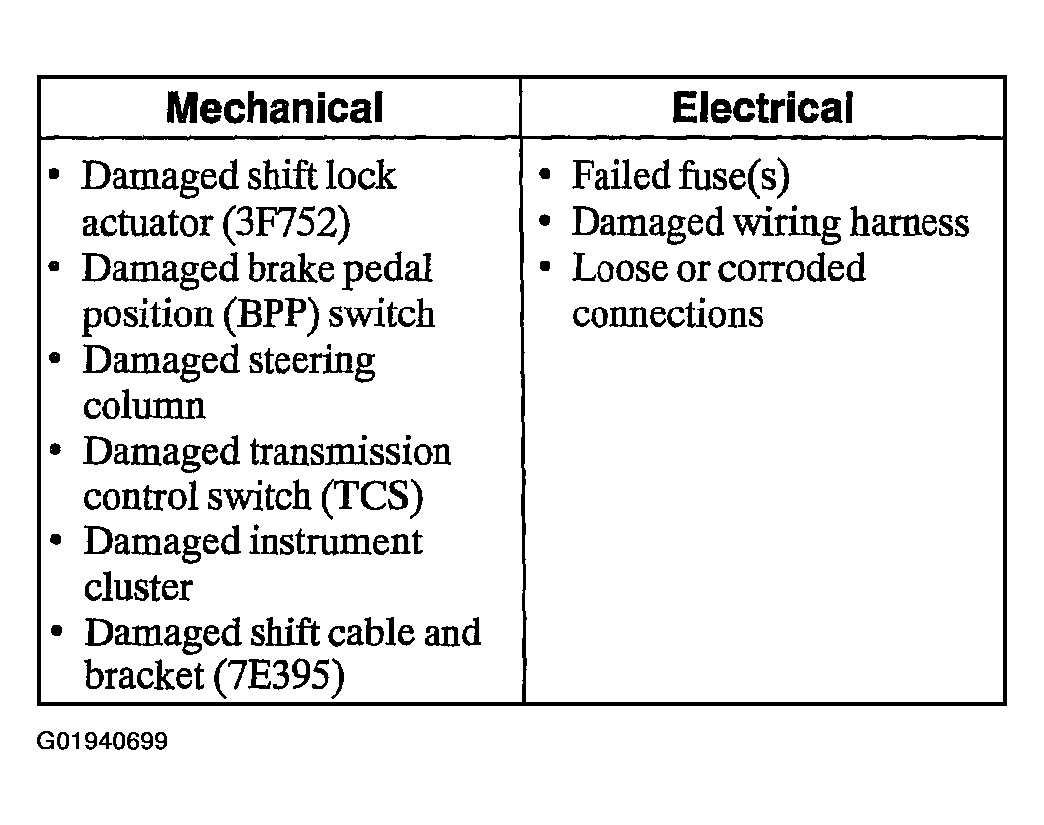

- Visually inspect for obvious signs of mechanical and electrical damage, incorrect component installation, and component misalignment. Verify that all circuit-related systems are functioning correctly. Refer to Fig 1.
- If the fault is not visually evident, proceed to SYMPTOM CHART - COLUMN SHIFT .
