Symptom Chart - Column Shift
Symptom Chart - Column Shift

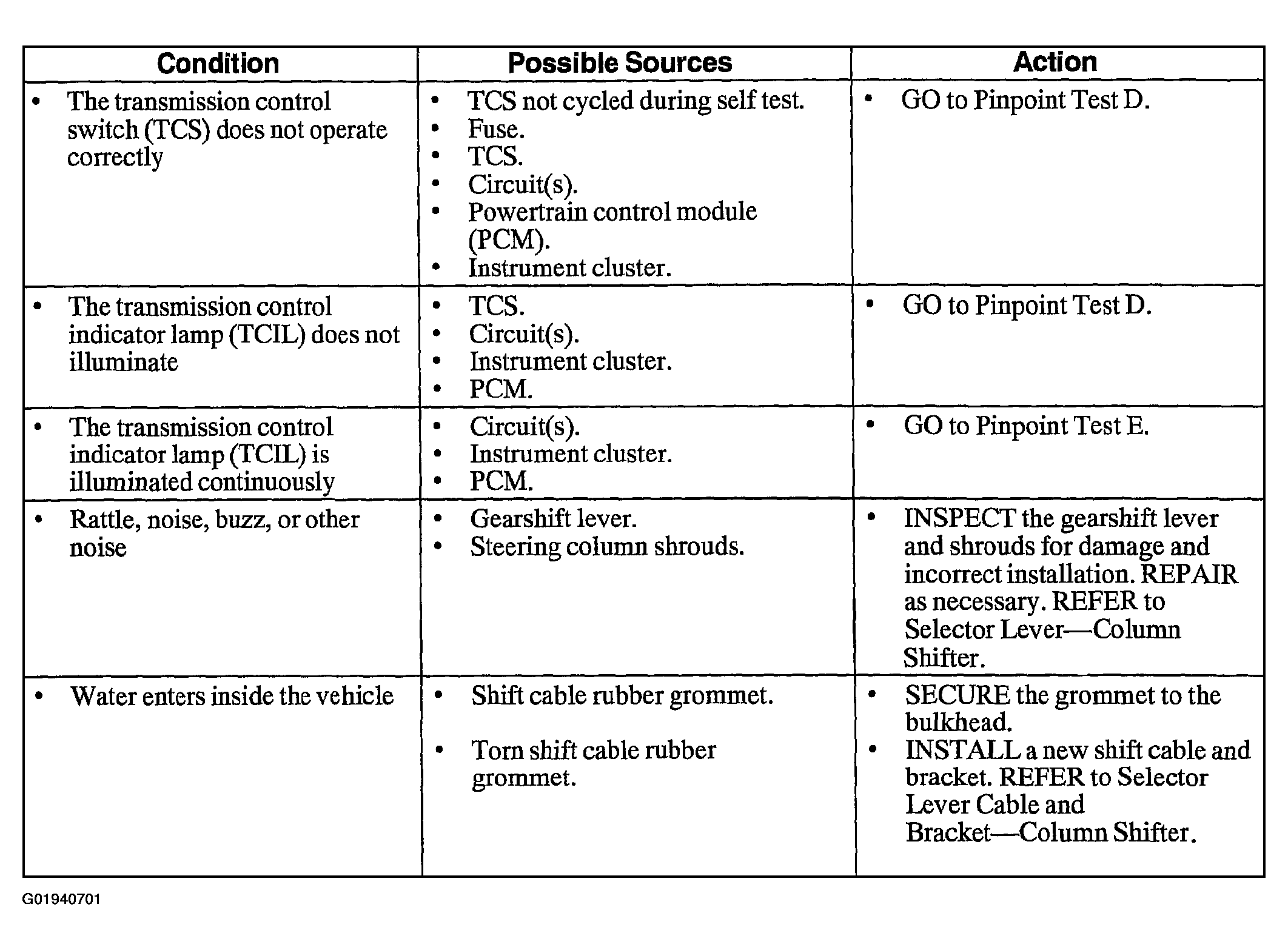

Fig 1: Identifying Symptom Chart - Column Shift (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Identifying Symptom Chart - Column Shift (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
