Removal And Installation: Cable/Bracket: Installation

  1. Follow the removal procedure in reverse order.
    NOTE: If equipped with air suspension, reactivate the system by turning on the air suspension switch.
    • Move manual lever into the overdrive (O/D) range.
    • Adjust the transmission shift cable. See Cable/Bracket Adjustment  .

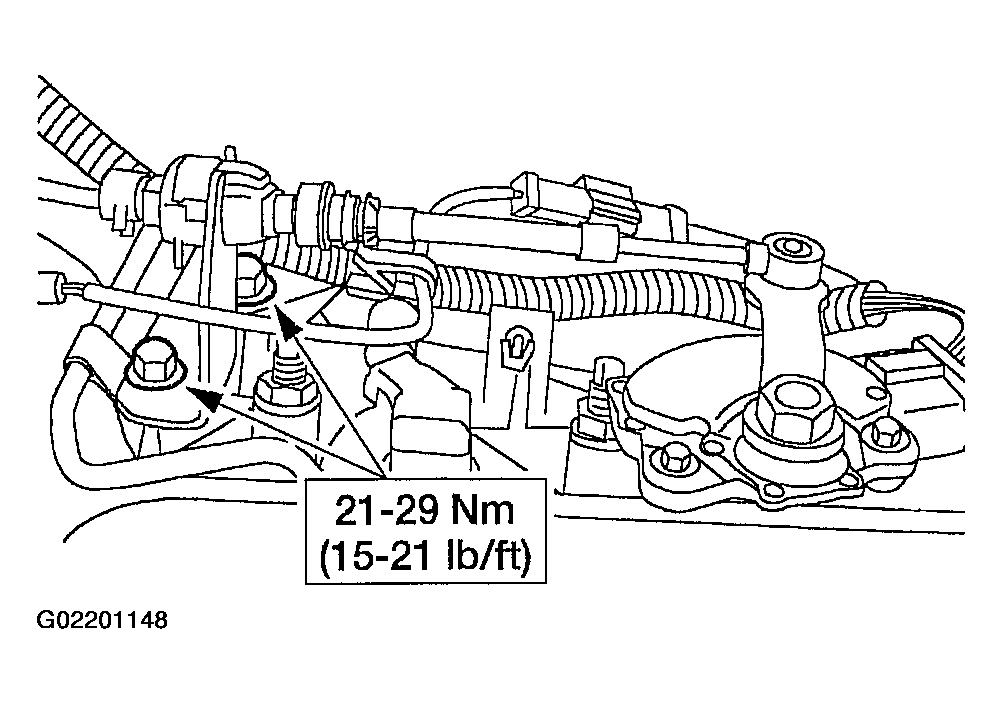

      Fig 1: Installing Cable/Bracket
      G02201148
