Removal And Installation: Pump: Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Install the power steering seal by stretching the seal over the seal replacer until it is large enough to slip over the tube nut.

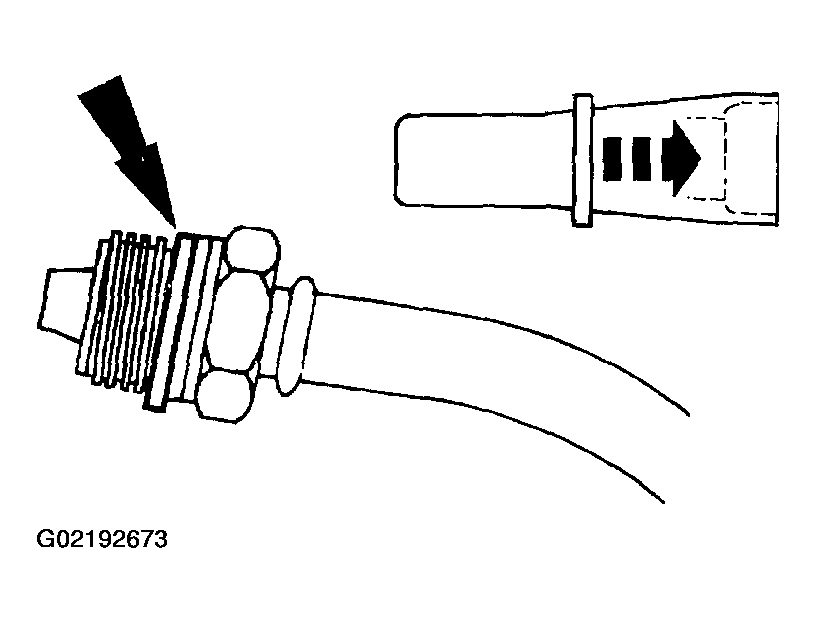

Fig 1: Locating Power Steering Seal
Courtesy of FORD MOTOR CO.
Install the power steering pressure hose.
1. Position the power steering pressure hose into the pump.
2. Tighten the pressure hose fitting.

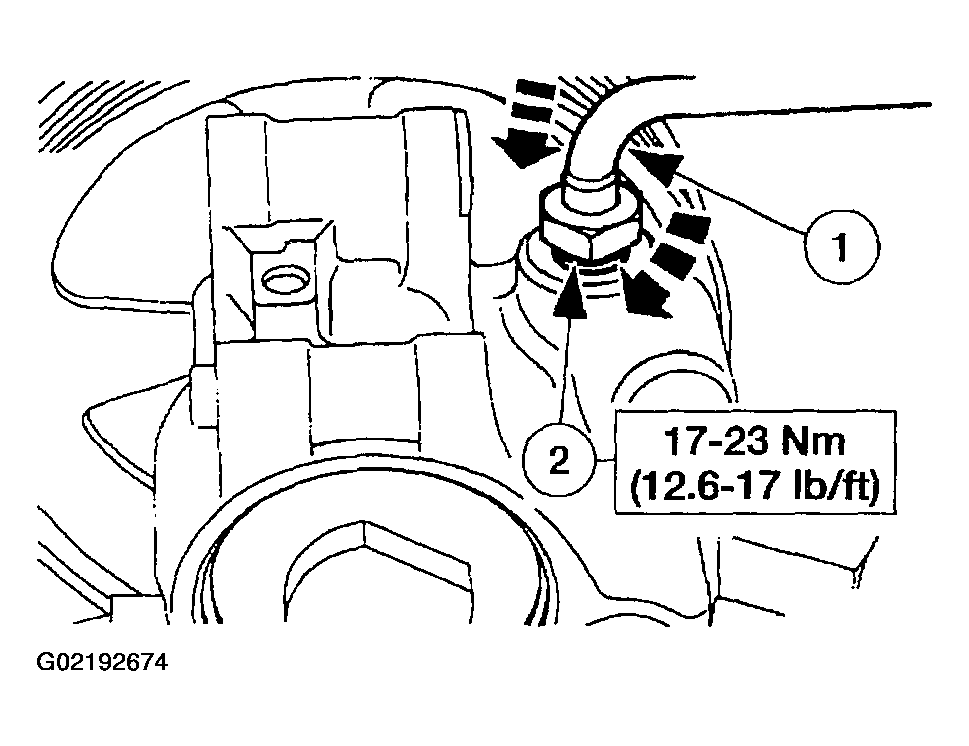

  Fig 2: Installing Power Steering Pressure Hose
  Courtesy of FORD MOTOR CO.
Position the power steering pump and loosely install the power steering pump bolts.
Tighten the power steering pump upper bolts.

Fig 3: Tightening Power Steering Pump Upper Bolts
Courtesy of FORD MOTOR CO.
Tighten the power steering pump lower bolt.

Fig 4: Tightening Power Steering Pump Lower Bolt
Courtesy of FORD MOTOR CO.
Connect the power steering reservoir pump hose to the power steering pump.

Fig 5: Connecting Power Steering Reservoir Pump Hose To Power Steering Pump
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Connect the power steering pressure hose to the steering gear.

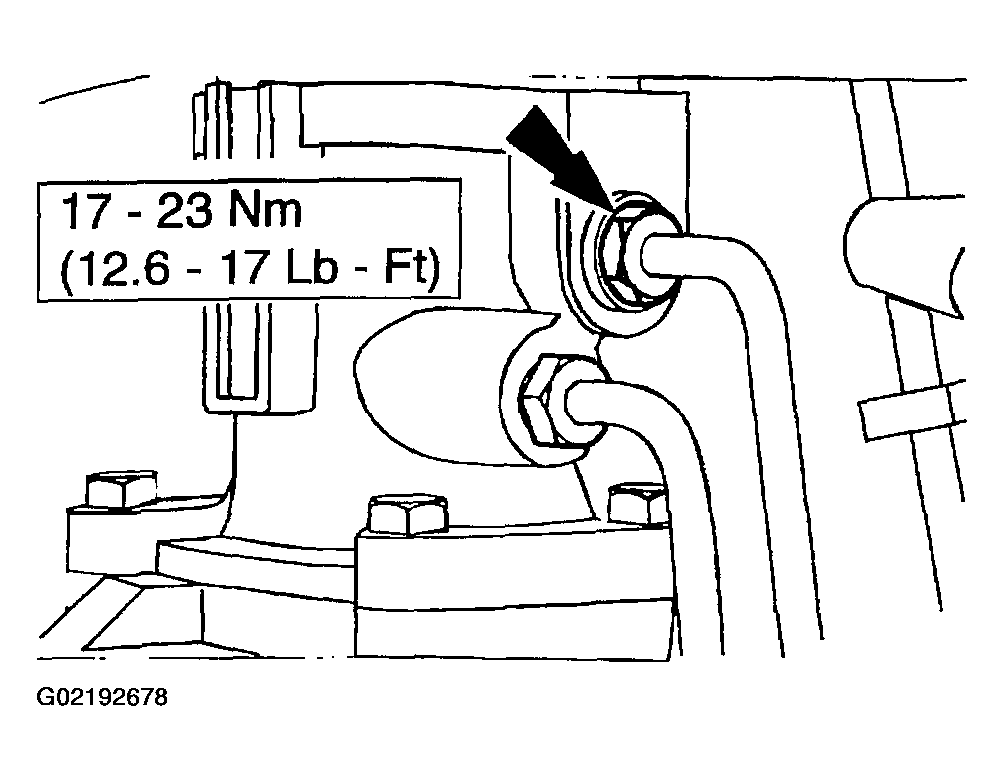

Fig 6: Connecting Power Steering Pressure Hose To Steering Gear
Courtesy of FORD MOTOR CO.
Install the drive belt.
Install the engine air cleaner assembly.
Fill and leak check the system. Refer to FILL .
