General Procedures: Fill
WARNING: This page is about a different car, the 2002 Ford Pickup and 2001 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

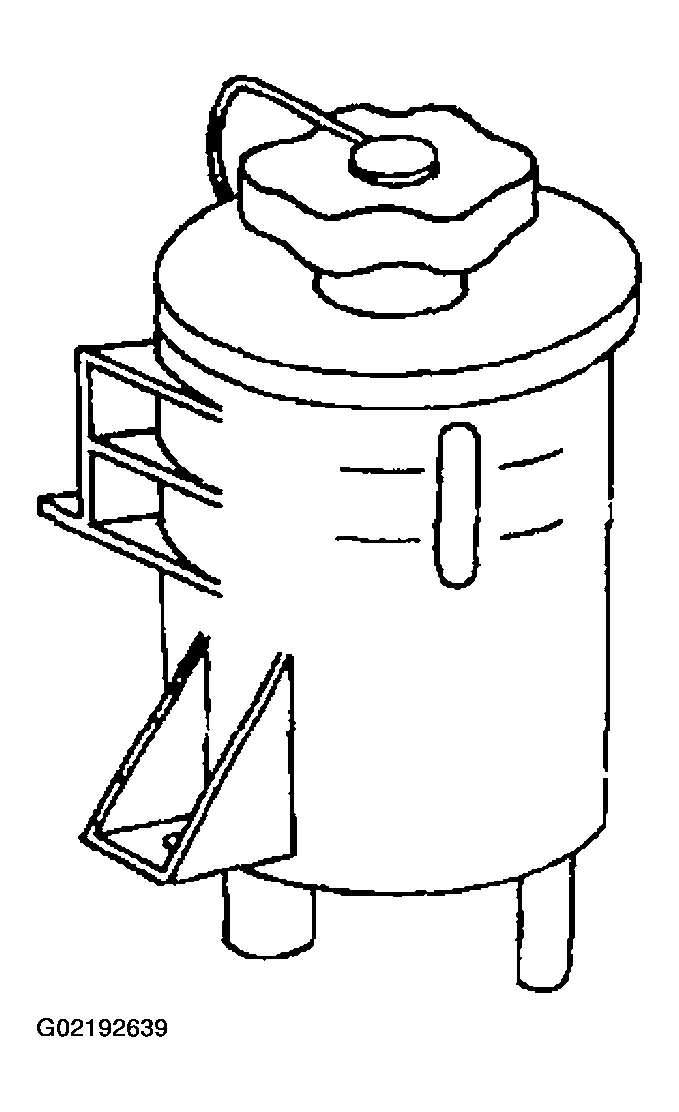

- Fill the reservoir.
- Use Motorcraft MERCON® Multi-Purpose ATF XT-2-QDX or equivalent meeting Ford Specification MERCON®.

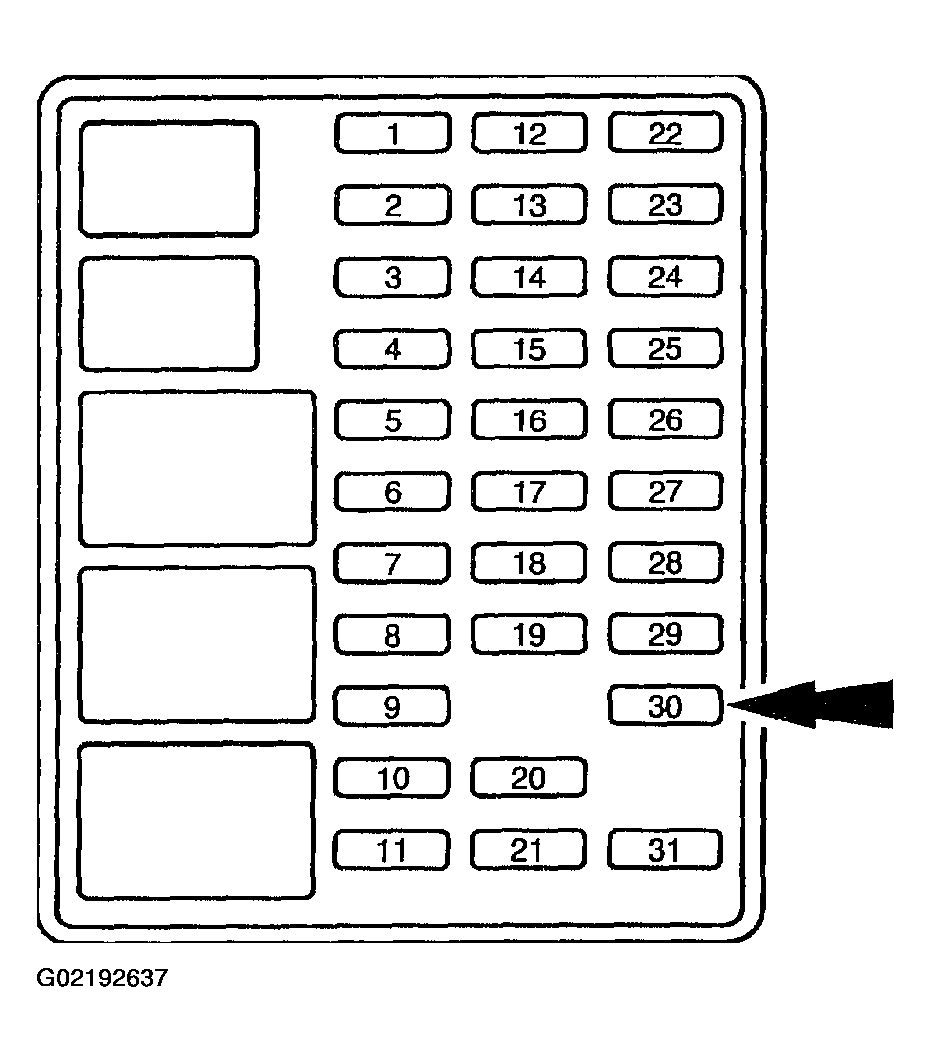

- Remove the ignition coil fuse to disable the vehicle.
- Raise the front wheels off the floor.

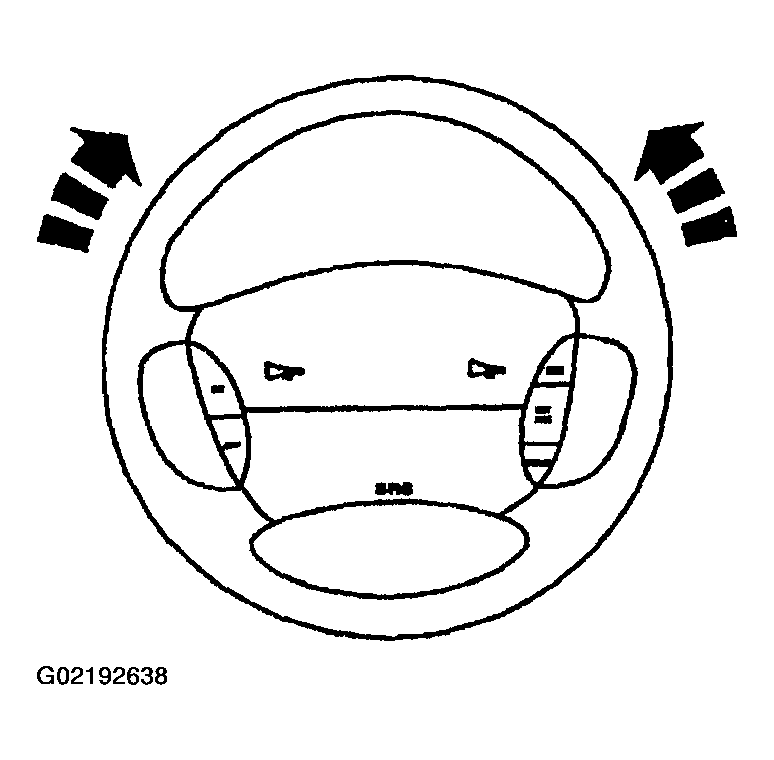

- Turn the steering wheel from stop-to-stop while cranking the engine.
- Lower the vehicle.
- Fill the reservoir.
- Use Motorcraft MERCON® Multi-Purpose ATF XT-2-QDX or equivalent meeting Ford Specification MERCON®.

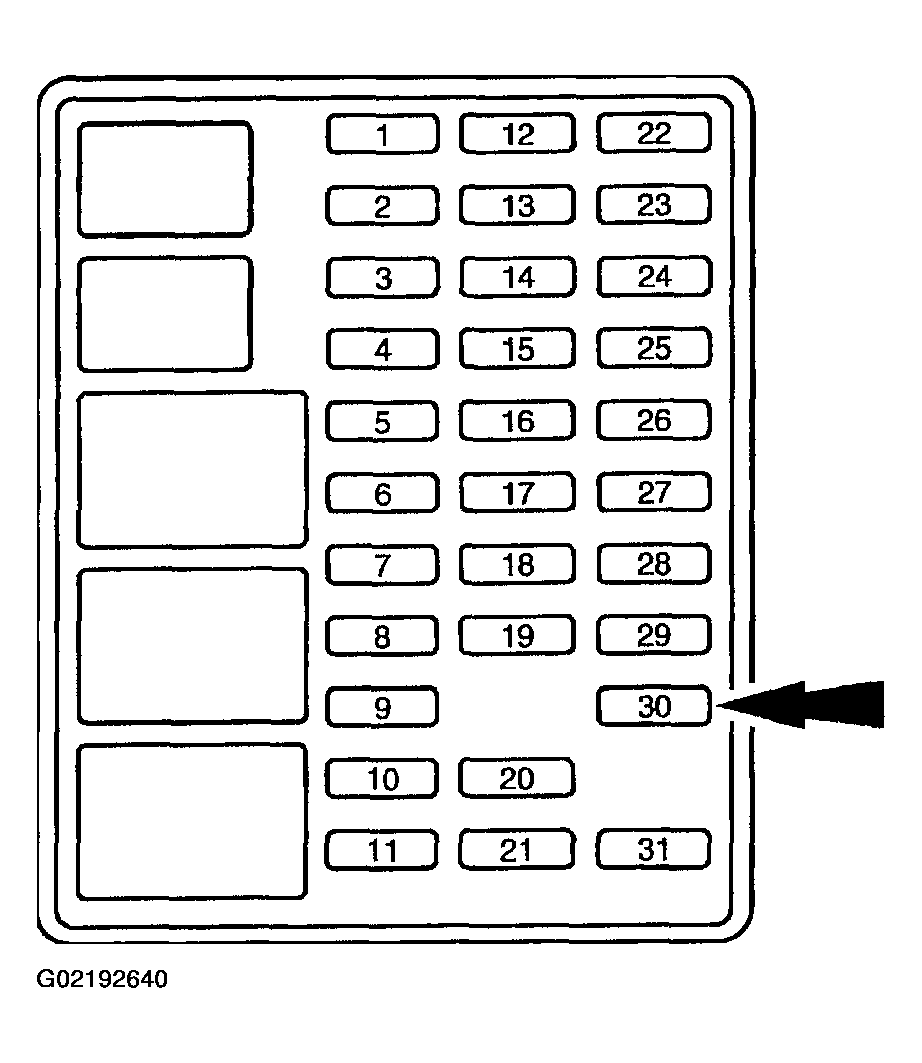

- Install the ignition coil fuse.
WARNING:
Do not mix oil types, any mixture or any unapproved oil could lead to seal deterioration and leaks. A leak could ultimately cause loss of fluid, which could result in a loss of power steering assist.
CAUTION:
Do not crank the engine for more than 15 seconds at a time. Allow the starter to cool for 1 minute before cranking again. Premature starter failure can occur.
CAUTION:
Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump could occur.
CAUTION:
Do not overfill the reservoir.
