Shift Cable

WARNING: This page is about a different car, the 2002 Ford Ranger, 2002 Ford Explorer Sport Trac, and 2002 Ford Explorer Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place gearshift lever in " D" position. Hang a 3 lb. (1.4 kg) weight from gearshift lever. Raise and support vehicle. Using a screwdriver, pry shift cable from shift control lever on transmission. Pull shift cable adjustment lock tab outward to unlock. See Fig 1 . Ensure adjuster body moves freely.
  2. Position shift control lever in "OD" position. "OD" position is obtained by rotating shift control lever clockwise until travel stops, and then turn shift control lever counterclockwise 2 detents. See Fig 2 . Connect cable to shift control lever. Push in lock tab to lock adjustment sleeve in position. Lower vehicle.
  3. Remove weight from gearshift lever. Check for park gear engagement. Start engine and ensure indicated gear positions match transmission response. Verify vehicle only starts in Park and Neutral, and back-up lights operate. If operation is not okay, check transmission range sensor adjustment. See TRANSMISSION RANGE SENSOR  .

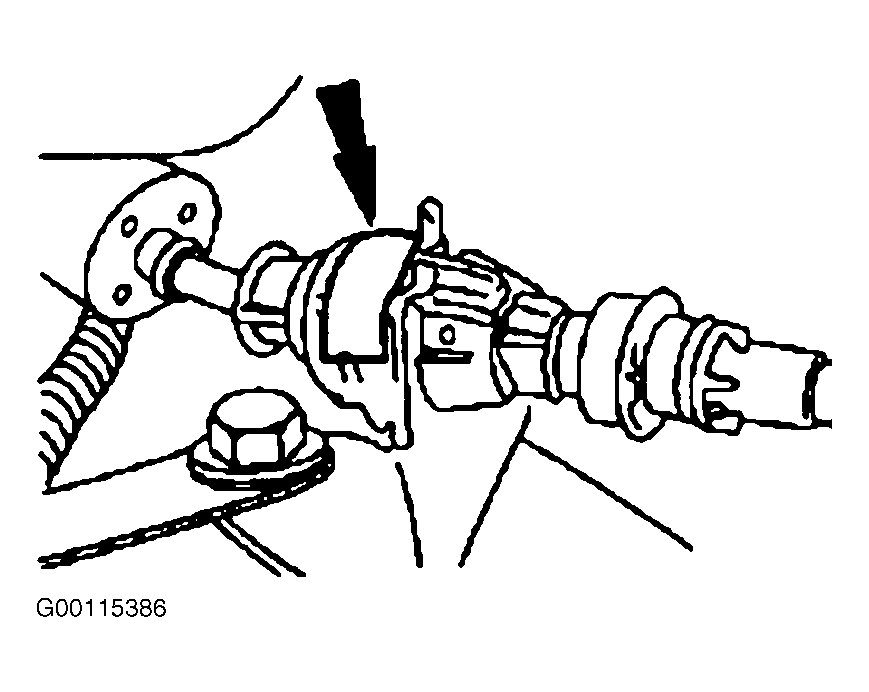

Fig 1: Identifying Shift Cable Adjustment Lock Tab
G00115386Courtesy of FORD MOTOR CO.

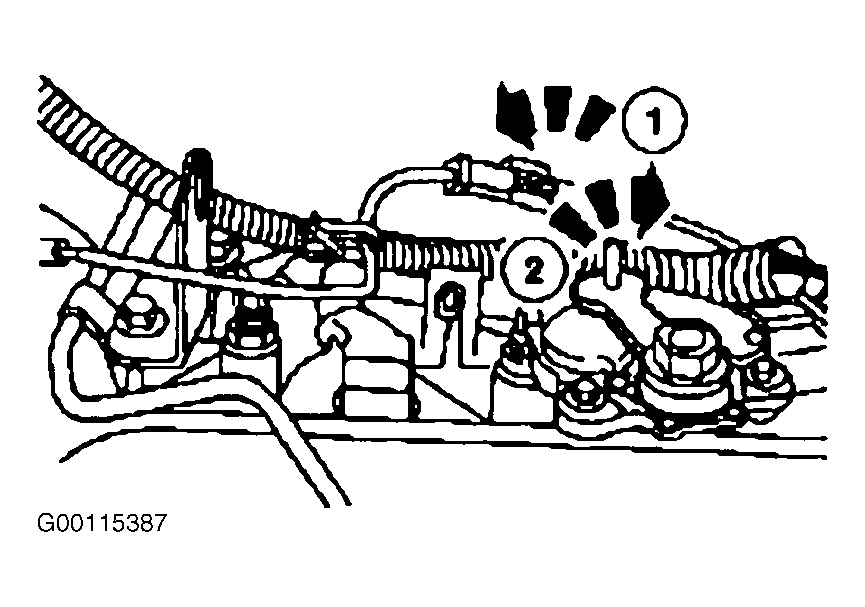

Fig 2: Rotating Shift Control Lever
G00115387Courtesy of FORD MOTOR CO.
