Upper Intake Manifold: Installation

Use NEW gaskets. Tighten upper intake manifold bolts in sequence (in 2 steps) to specification. See Fig 1. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

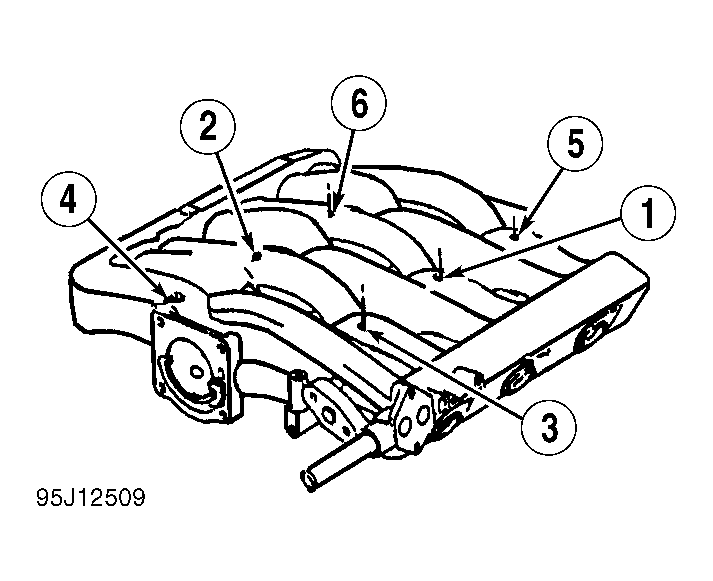

Fig 1: Upper Intake Manifold Tightening Sequence

Courtesy of FORD MOTOR CO.
