Removal (3.8L California & 3.8L SC)

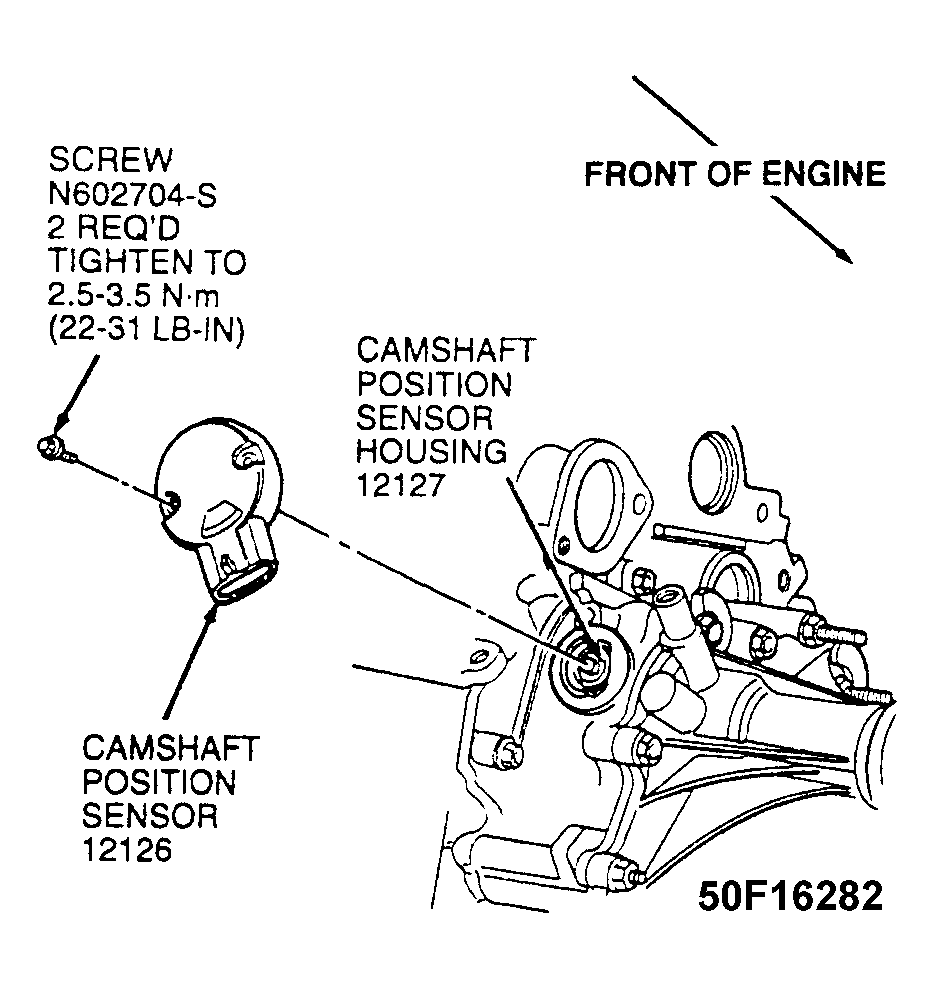

  1. Disconnect negative battery cable. Unplug harness connector from Camshaft Position (CMP) sensor. Remove CMP sensor mounting screws and sensor from CMP housing. See Figure.
  2. If CMP sensor housing is to be removed from engine front cover (6019), go to next step. If camshaft position sensor housing is not being removed, go to step 4).
    CAUTION: Prior to removal of CMP sensor, set cylinder No. 1 to 26° After Top Dead Center of compression stroke. Then note position of CMP sensor connector. The installation procedure requires that the connector be located in same position.
  3. Remove hold-down clamp (12270) including bolt and washer. The oil pump intermediate shaft (6A618) should be removed with CMP sensor housing.
  4. Remove CMP sensor housing from engine front cover.
