Crankshaft Position Sensor (CKP): Removal

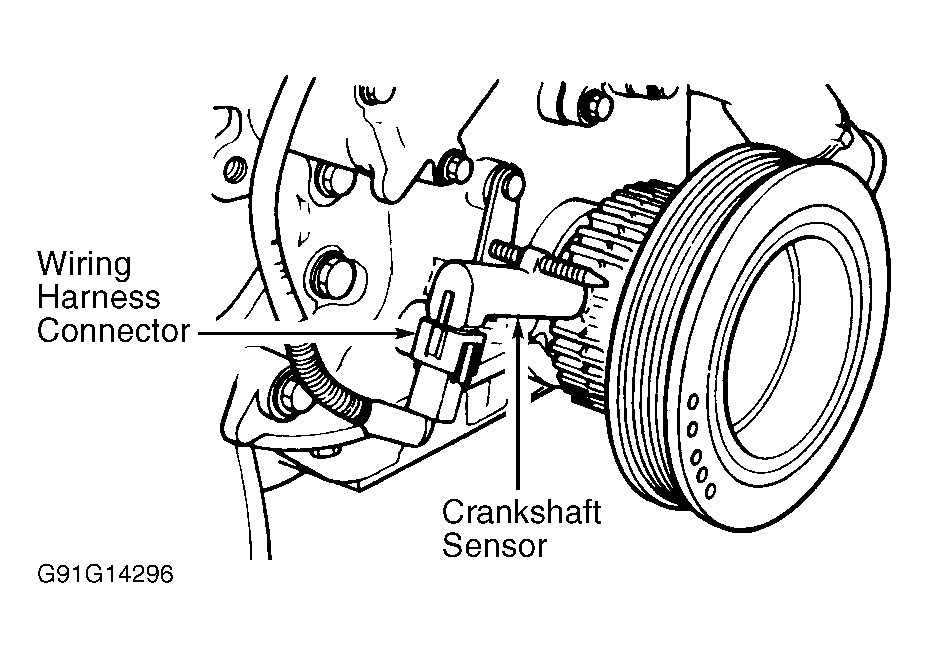

Disconnect negative battery cable. Unplug crankshaft sensor wire connector from engine harness. Remove crankshaft sensor mounting screws. Remove crankshaft sensor. See Figure .
