Removal & Installation
WARNING: This page is about a different variant/trim than selected.

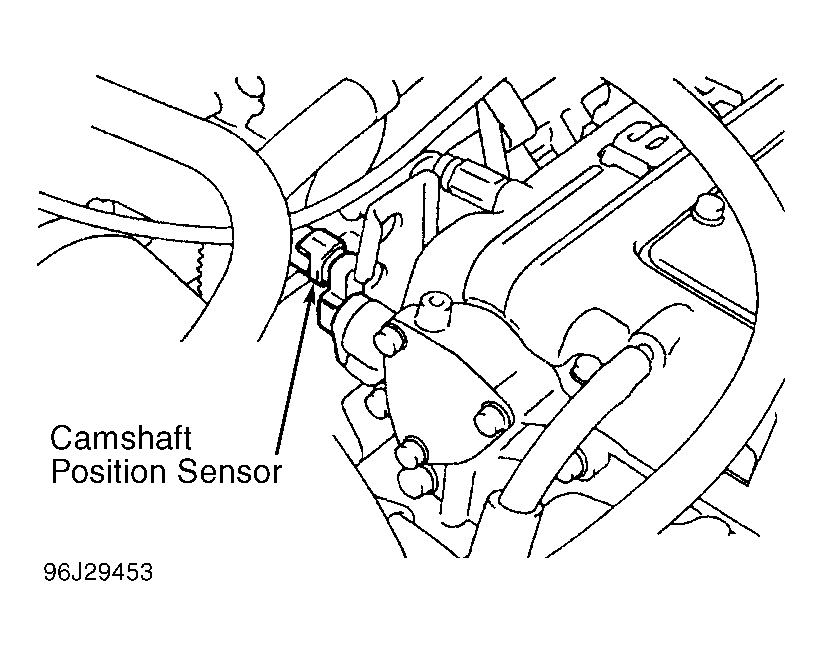

- Camshaft position sensor is located at rear of cylinder head on intake manifold side of engine. See Fig 1. Disconnect connector from camshaft position sensor. Remove bolt, camshaft position sensor and "O" ring.
- To install, reverse removal procedure using NEW "O" ring. Install and tighten camshaft position sensor bolt to specification. See TORQUE SPECIFICATIONS .
